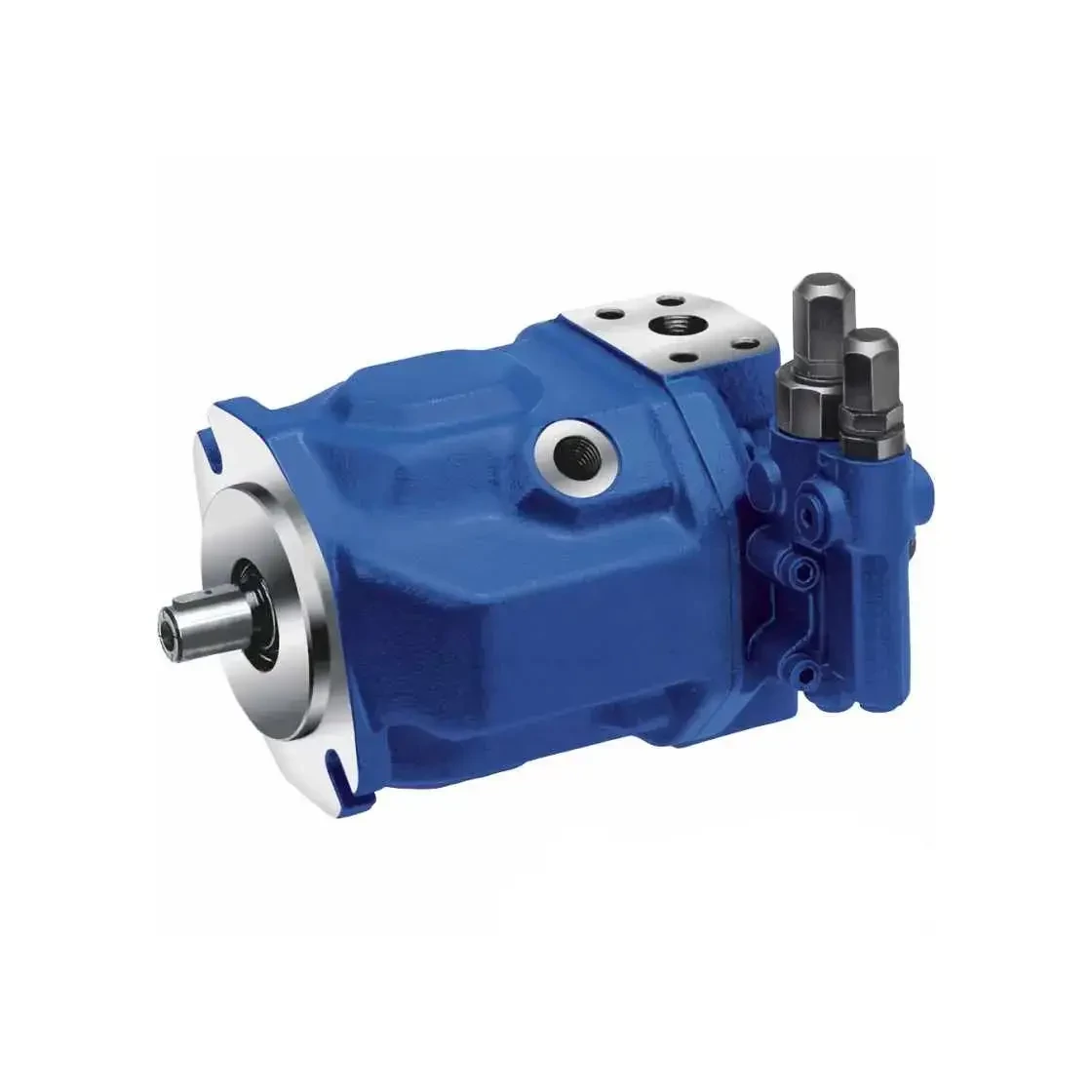

Axial pump - A10VSO28DFR1/31R-VPA12N00

Axial pump - A10VSO28DFR1/31R-VPA12N00

Subtype Pressure-regulated
Peak pressure 350
Peak pressure [bar] (water-glycol HFC) 210
Suction connection information 1.1/4
Connections SAE flansni metrikus csavarokkal - SFL32 - SFL19 (M10)
Rotational speed at working pressure (min-max) 3000
Rotational speed at working pressure (min-max / water-glycol HFC) 2400
Direction of rotation jobb
Mounting flange + screw mounting 100/140×2 (M12)
Mounting flange standard ISO3019-2-100-B2
Maximum speed without load 3600
Maximum working pressure [bar] (water-glycol HFC) 175
Pressure Connection SFL19 (M10)
Pressure Connection Information 3/4
Key [mm] A6 × 6 × 32 - DIN 6885
Regulation DFR1 = nyomás átfolyás szabályzás
Displacement (cm³/rev) 28
Suction connection SFL32 (M10)
Shaft [mm] ø22
Type Egy körös
Seal FKM
Maximum pressure 280 bar
Type Single-circuit
Manufacturer article number: R910916805
Model: HPANA1028DFR1V0
Availability: 1 pcs in stock
Manufacturer: Rexroth
