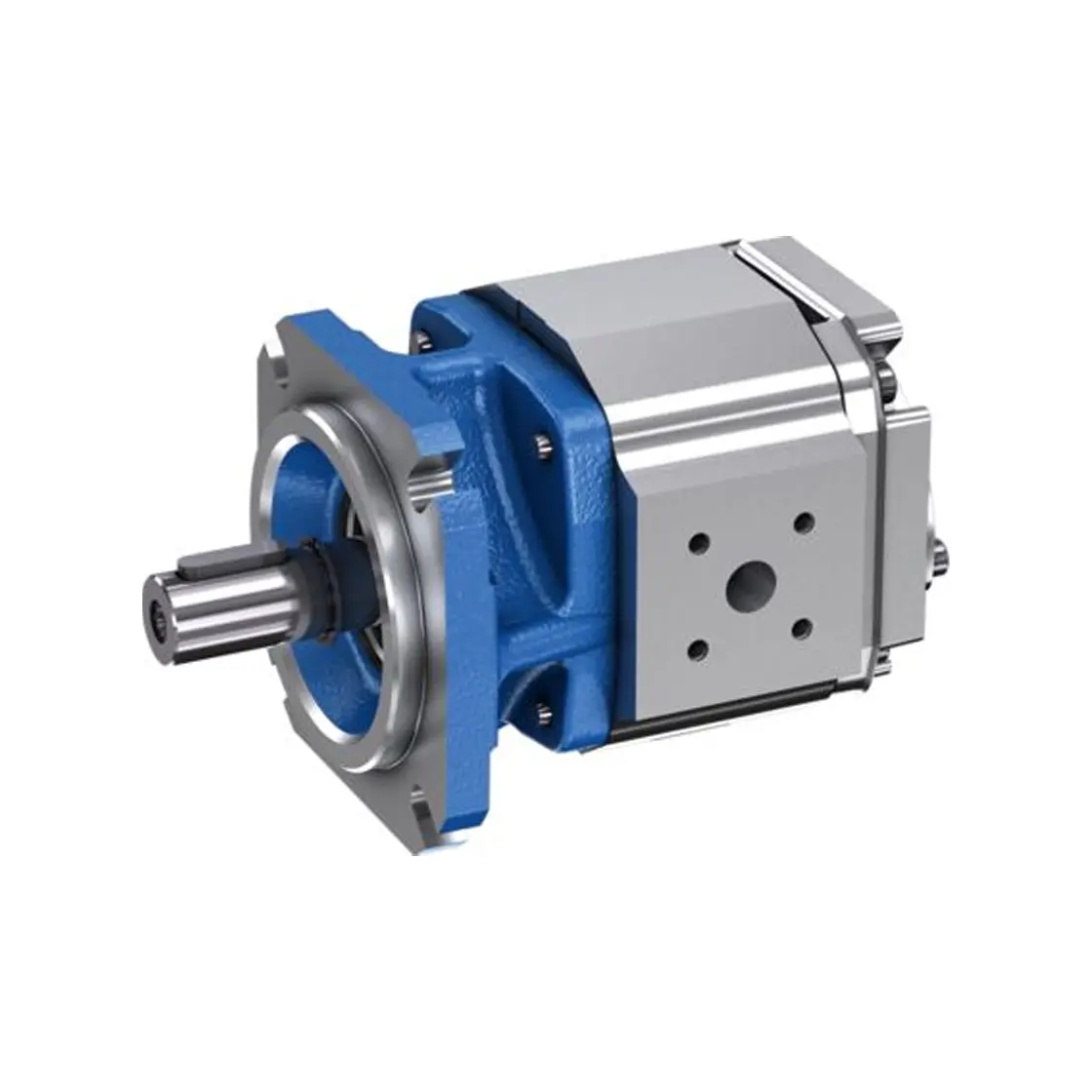

Internal gear pump - PGF2-2X/016RE20VE4

PGF Series Internal Gear Pump: Versatile & Robust

This internal gear pump is designed for both industrial and mobile applications within an open circuit, offering reliable performance even in demanding conditions. Its robust construction makes it suitable for variable-speed drives, while its advanced design ensures quiet and efficient operation.

Key Features

• Constant displacement
• Low noise and low pulsation for smooth operation
• High efficiency due to gap compensation
• Proven durability: suitable for two million load cycles at maximum pressure
• Equipped with FKM seals for enhanced fluid compatibility
• Features a lightweight aluminum housing

Specifications

• Size: 16 (The initial prompt states "size 16," while product attributes indicate "Size 19." I will retain "size 16" from your request as the primary general spec, but note the discrepancy with the specific product attribute if you need further clarification.)
• Operating Pressure: Up to 250 bar (as per your initial request, suitable for general internal gear pump)
  • Max. Operating Pressure (PGF product family): 210 bar
  • Max. Operating Pressure (special fluids): 210 bar
• Displacement Type: Constant
• Product Family: PGF
• Max. Flow: 57.6 l/min
• Through-drive: Yes
• Direction of Rotation: Clockwise
• Shaft End: Cylindrical ∅ 20 mm with fitting key, ISO 3019-2
• Mounting Flange: 4-hole mounting flange 80B4SW according to ISO 3019-2
• Hydraulic Fluid Compatibility: HLP, HLPD, HVLP, HVLPD, HETG, HEES, HEPG, HFDU, HFDR
• Seals Material: FKM
• Weight: 4.24 kg
