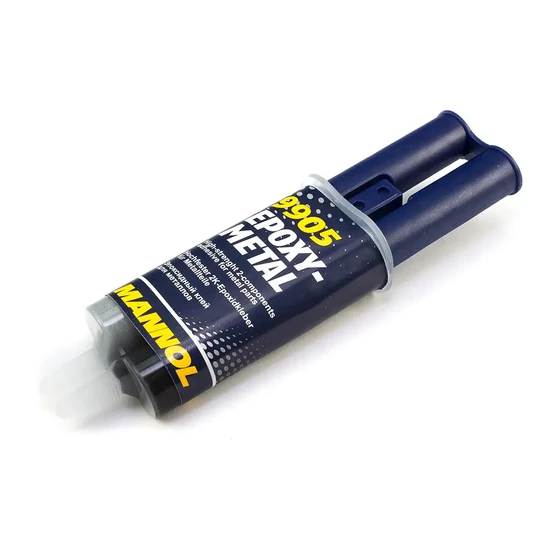

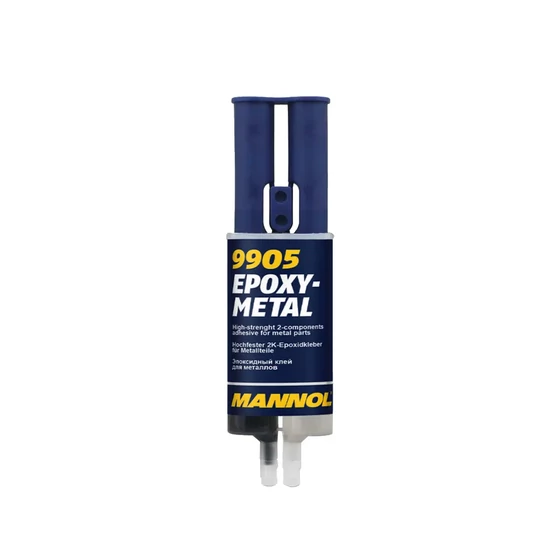

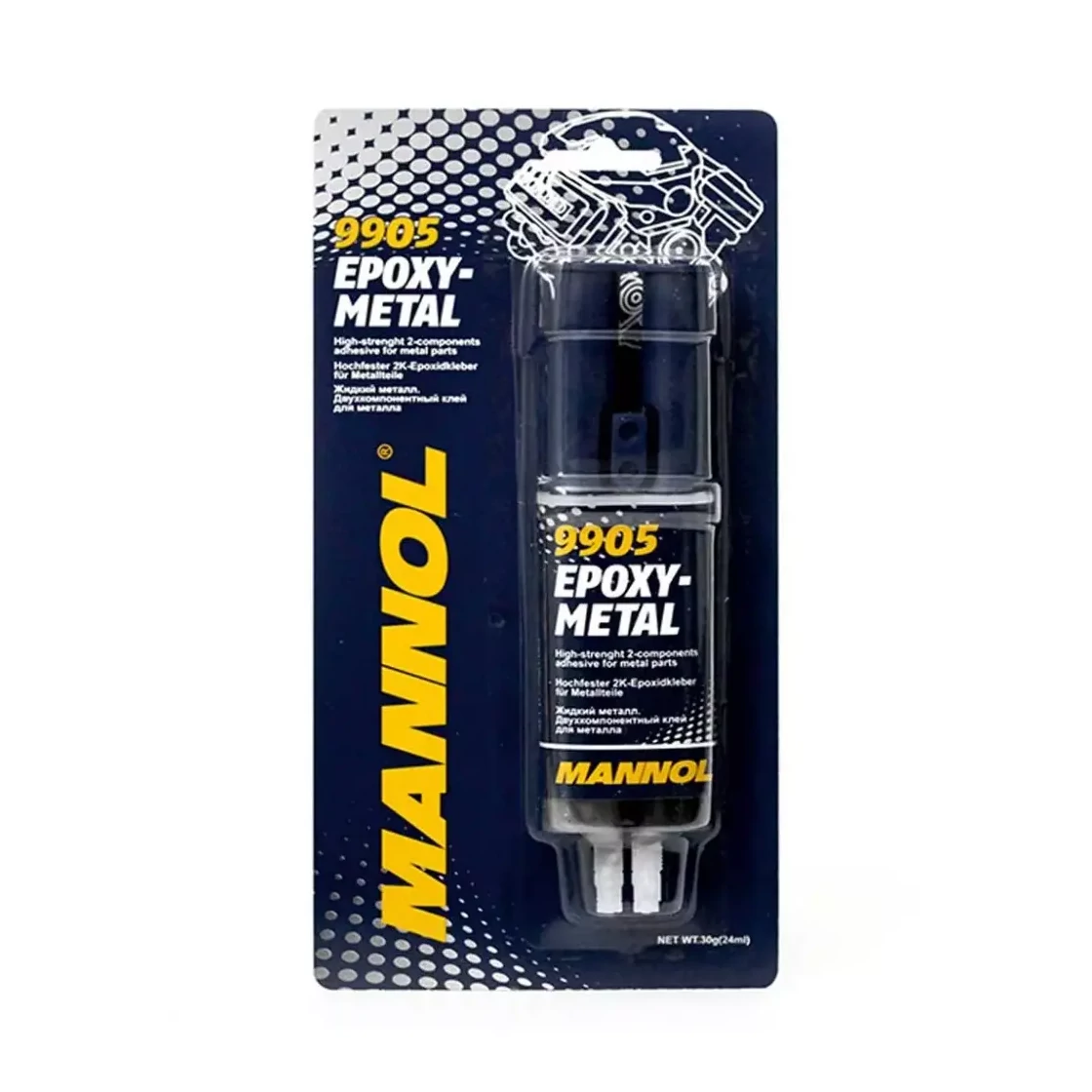

Epoxy‑Metal is a fast‑setting, two‑component adhesive based on epoxy resin. It bonds parts made of any metal or alloy (steel, cast iron, aluminum, copper, brass, bronze, magnesium, tin, lead, etc.) in any combination. Ideal for rapid, long‑lasting repairs such as sealing cracks and cavities of any shape, restoring internal or external threads, and filling voids. Suitable for automotive and industrial equipment repair, as well as home and office use.
Key Properties
-
Fast Cure: Initial set in 4 minutes; full cure in 2–3 hours
-
High Shear Strength: 3–5 N/mm² after full cure
-
Temperature Resistance: Up to +150 °C
-
Chemical & Mechanical Resistance: Excellent against oils, fuels, solvents, and wear
-
Underwater Hardening: Cures reliably even when submerged
-
Durability & Machinability: After full cure, can be machined (threaded, sanded) and painted or varnished
-
Versatile Filler: Can be used as a putty on flat surfaces
-
Multi‑substrate Bonding: Also bonds glass, ceramics, concrete, and wood
Recommended Applications
-
Crack & Cavity Sealing: Pipes, housings, tanks, castings
-
Thread Repair: Internal and external, damaged threads
-
General Repairs: Automotive parts, machinery, household fixtures
-
Surface Filling: Leveling uneven or pitted surfaces
Application Instructions
-
Surface Preparation: Remove old paint, rust, dirt, grease, and oil.
-
Degreasing: Wipe with 9691 MANNOL Brake Cleaner; let dry.
-
Mixing: Extrude equal parts (1:1 ratio) of resin and hardener. Mix thoroughly until uniform.
-
Application: Apply to both mating surfaces or into the repair area.
-
Assembly: Press parts together firmly with maximum force.
-
Curing:
-
Initial set: ~4 minutes
-
Full strength: 2–3 hours
|
