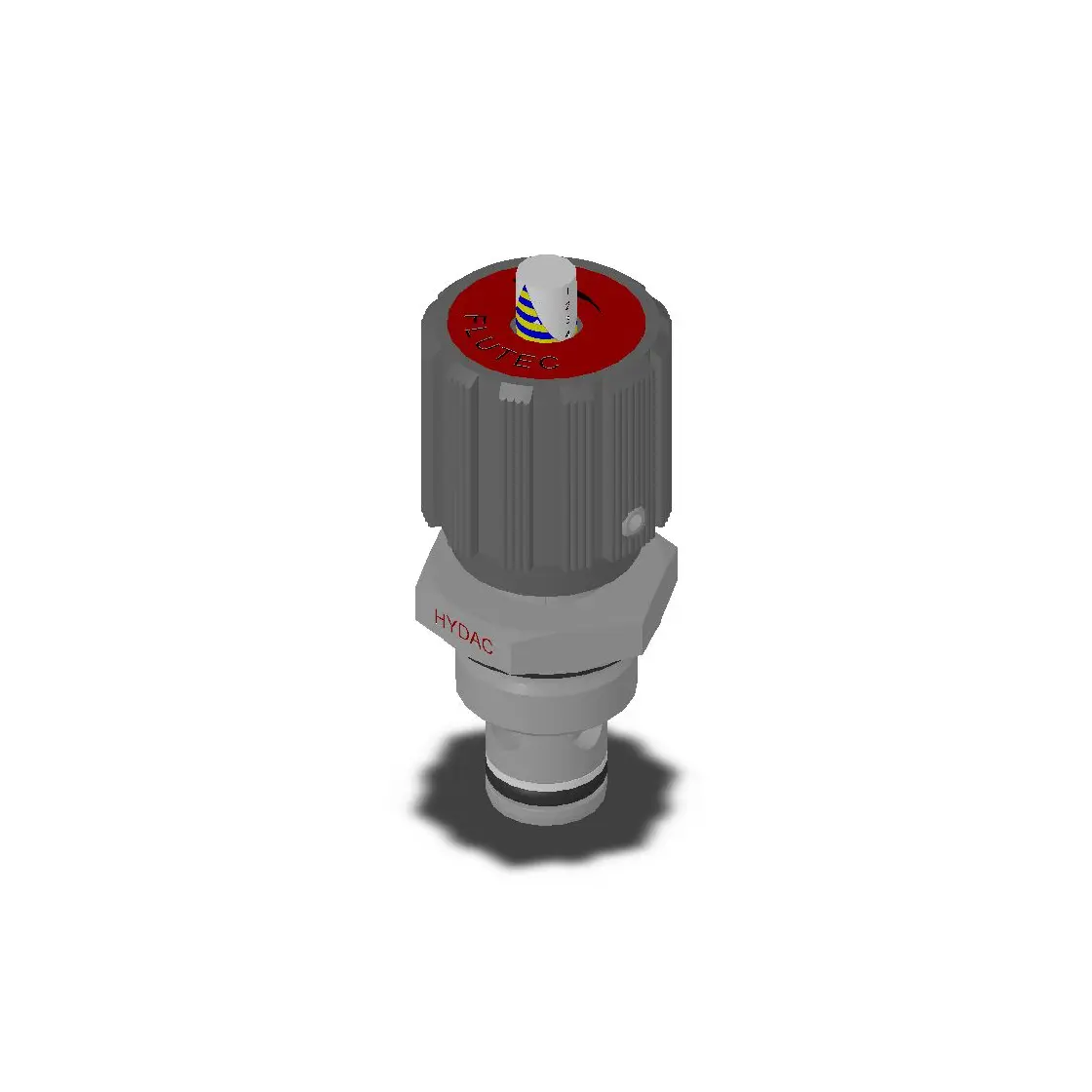

Double-acting control valve - DVE-08920-01-C-V
Request for quotation:

Double-acting control valve - DVE-08920-01-C-V

Request for quotation:
Subtype For bore mounting / Inserted into bore
Type Flow restrictor
Model: HVLFFS08FLDVE
Availability: Available to order
Manufacturer: Hydac
Max flow rate (Qmax) [l/min]: 50
Product family flow rate [l/min]: 0 - 50
Product family: DVE08
Flow range [l/min]: 0 - 50
Function: Spool valve / Throttle valve
Nominal size: 8
Object name: DVE08920-01-C-V
Max pressure (Pmax) [bar]: 350
Control type: Direct acting
Installation type: Metric
Seal material: FKM
Design: Cartridge
