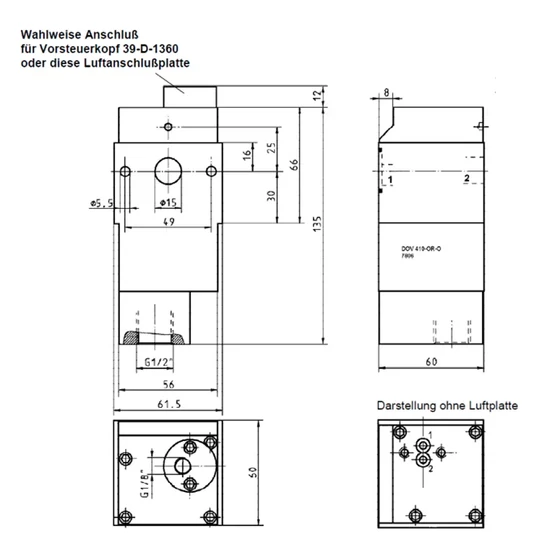

Valve - DOV 410-OR-O

This Parker DOV 410-OR-O venting valve offers a reliable solution for depressurizing pneumatic systems. It features a G1/2 connection and can be used across a wide pressure range.

Technical Specifications

• Type: DOV 410-OR-O
• Order No.: 3041000
• VW Material No.: 7706
• Nominal Size (DN): 12 mm
• Nominal Flow: 2200 l/min
• Operating Pressure: 2 - 16 bar
• Control Pressure: 2.25 - 10 bar
• Temperature Range: -10 °C to +70 °C
• Weight: 1.30 kg
