Dugattyú - búvárdugattyús hengerhez leírása
- A búvárdugattyús hengerhez készült dugattyút szárvezetéshez tervezték.
- Az FT-sorozat egy normál hosszúságú menetes dugattyút kínál, míg a BT-sorozat egy rövid, menet nélküli kialakítást.
- Mindkét sorozat acélból készül.
Dugattyú - búvárdugattyús hengerhez mérettáblázata
Kattintson a cikkszámra a kiválasztott termék árának és raktárkészletének megtekintéséhez.

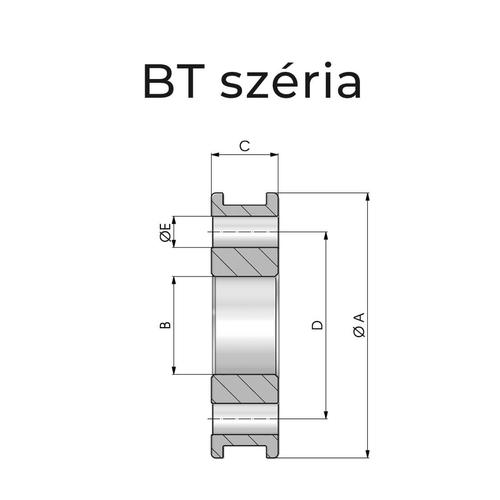

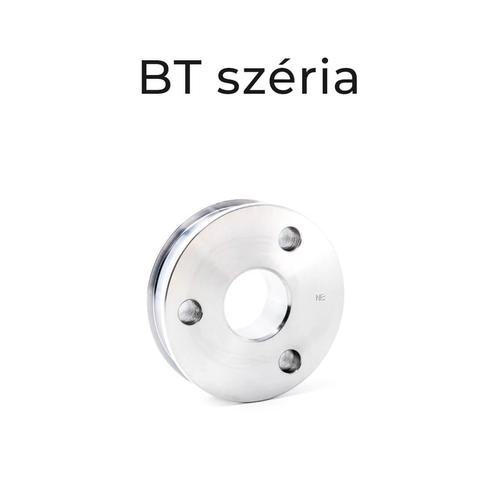

BT széria:
| Cikkszám | A | B | C | D | E | kg |
|---|---|---|---|---|---|---|
| ND030012BT | 30 | 12 | 14 | 20 | 3.5X3 | 0,04 |
| ND035014BT | 35 | 14 | 14 | 23 | 4.5X3 | 0,06 |
| ND040014BT | 40 | 14 | 14 | 27 | 4.5X3 | 0,09 |
| ND045016BT | 45 | 16 | 14 | 31 | 4.5X3 | 0,12 |
| ND050020BT | 50 | 20 | 14 | 34 | 6X3 | 0,13 |
| ND055020BT | 55 | 20 | 18 | 38 | 6X3 | 0,22 |
| ND060020BT | 60 | 20 | 18 | 42 | 7X3 | 0,28 |
| ND070024BT | 70 | 24 | 18 | 50 | 8.5X3 | 0,38 |
| ND080027BT | 80 | 27 | 18 | 60 | 8.5X3 | 0,52 |
| ND085027BT | 85 | 27 | 18 | 65 | 8.5X3 | 0,61 |
| ND090033BT | 90 | 33 | 18 | 68 | 7.5X5 | 0,66 |
| ND100033BT | 100 | 33 | 18 | 76 | 9X5 | 0,83 |
| ND110039BT | 110 | 39 | 18 | 86 | 9X5 | 1,01 |
| ND120039BT | 120 | 39 | 18 | 93 | 11X5 | 1,22 |

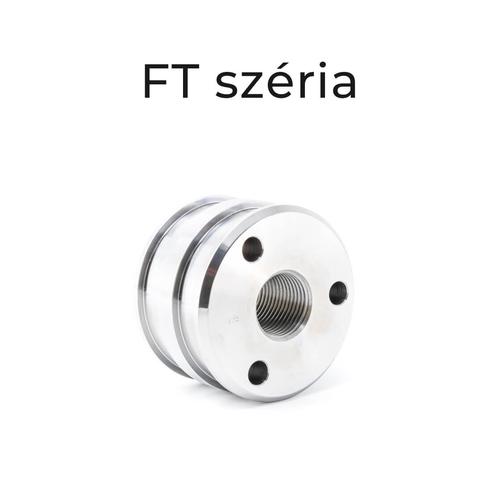

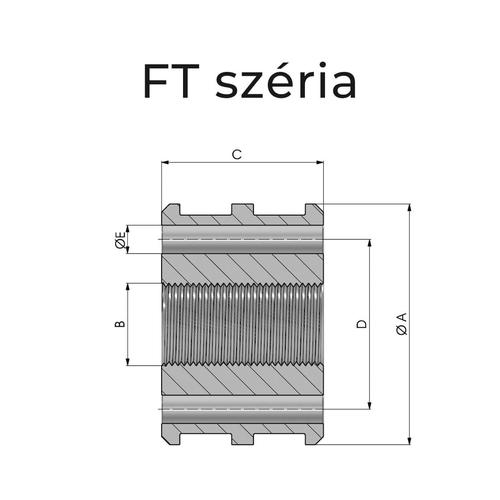

FT széria:
| Cikkszám | A | B | C | D | E | kg |
|---|---|---|---|---|---|---|
| ND030012FT | 30 | M12X1.5 | 35 | 20 | 3.5X3 | 0,13 |
| ND035014FT | 35 | M14X1.5 | 35 | 23 | 4.5X3 | 0,17 |
| ND040014FT | 40 | M14X1.5 | 35 | 27 | 4.5X3 | 0,25 |
| ND045016FT | 45 | M16X1.5 | 35 | 31 | 4.5X3 | 0,32 |
| ND050020FT | 50 | M20X1.5 | 35 | 34 | 6X3 | 0,35 |
| ND055020FT | 55 | M20X1.5 | 40 | 38 | 6X3 | 0,51 |
| ND060020FT | 60 | M20X1.5 | 40 | 42 | 7X3 | 0,63 |
| ND070024FT | 70 | M24X2 | 45 | 50 | 8.5X3 | 0,99 |
| ND080027FT | 80 | M27X2 | 45 | 60 | 8.5X3 | 1,34 |
| ND085027FT | 85 | M27X2 | 45 | 65 | 8.5X3 | 1,56 |
| ND090033FT | 90 | M33X2 | 50 | 68 | 7.5X5 | 1,87 |
| ND100033FT | 100 | M33X2 | 50 | 76 | 9X5 | 2,38 |
| ND110039FT | 110 | M39X3 | 55 | 86 | 9X5 | 3,19 |
| ND120039FT | 120 | M39X3 | 55 | 93 | 11X5 | 3,87 |
Short piston for plunger cylinder - NBPBT0003012
Article number: ND030012BT
Available to order
Manufacturer: --
Manufacturer article number: NBPBT0003012
Piston for plunger cylinder - NBPFT0301215
Article number: ND030012FT
Available to order
Manufacturer: --
Manufacturer article number: NBPFT0301215
Short piston for plunger cylinder - NBPBT0003514
Article number: ND035014BT
Available to order
Manufacturer: --
Manufacturer article number: NBPBT0003514
Piston for plunger cylinder - NBPFT0351415
Article number: ND035014FT
Available to order
Manufacturer: --
Manufacturer article number: NBPFT0351415
Short piston for plunger cylinder - NBPBT0004014
Article number: ND040014BT
Available to order
Manufacturer: --
Manufacturer article number: NBPBT0004014
Piston for plunger cylinder - NBPFT0401415
Article number: ND040014FT
Available to order
Manufacturer: --
Manufacturer article number: NBPFT0401415
Short piston for plunger cylinder - NBPBT0004516
Article number: ND045016BT
Available to order
Manufacturer: --
Manufacturer article number: NBPBT0004516
Piston for plunger cylinder - NBPFT0451615
Article number: ND045016FT
Available to order
Manufacturer: --
Manufacturer article number: NBPFT0451615
Short piston for plunger cylinder - NBPBT0005020
Article number: ND050020BT
Available to order
Manufacturer: --
Manufacturer article number: NBPBT0005020
Piston for plunger cylinder - NBPFT0502015
Article number: ND050020FT
Available to order
Manufacturer: --
Manufacturer article number: NBPFT0502015
Short piston for plunger cylinder - NBPBT0005520
Article number: ND055020BT
Available to order
Manufacturer: --
Manufacturer article number: NBPBT0005520
Piston for plunger cylinder - NBPFT0552015
Article number: ND055020FT
Available to order
Manufacturer: --
Manufacturer article number: NBPFT0552015
Short piston for plunger cylinder - NBPBT0006020
Article number: ND060020BT
Available to order
Manufacturer: --
Manufacturer article number: NBPBT0006020
Piston for plunger cylinder - NBPFT0602015
Article number: ND060020FT
Available to order
Manufacturer: --
Manufacturer article number: NBPFT0602015
Short piston for plunger cylinder - NBPBT0007024
Article number: ND070024BT
Available to order
Manufacturer: --
Manufacturer article number: NBPBT0007024
Piston for plunger cylinder - NBPFT0702420
Article number: ND070024FT
Available to order
Manufacturer: --
Manufacturer article number: NBPFT0702420
Short piston for plunger cylinder - NBPBT0008027
Article number: ND080027BT
Available to order
Manufacturer: --
Manufacturer article number: NBPBT0008027
Piston for plunger cylinder - NBPFT0802720
Article number: ND080027FT
Available to order
Manufacturer: --
Manufacturer article number: NBPFT0802720
Short piston for plunger cylinder - NBPBT0008527
Article number: ND085027BT
Available to order
Manufacturer: --
Manufacturer article number: NBPBT0008527
Piston for plunger cylinder - NBPFT0852720
Article number: ND085027FT
Available to order
Manufacturer: --
Manufacturer article number: NBPFT0852720
Short piston for plunger cylinder - NBPBT0009033
Article number: ND090033BT
Available to order
Manufacturer: --
Manufacturer article number: NBPBT0009033
Piston for plunger cylinder - NBPFT0903320
Article number: ND090033FT
Available to order
Manufacturer: --
Manufacturer article number: NBPFT0903320
Short piston for plunger cylinder - NBPBT0010033
Article number: ND100033BT
Available to order
Manufacturer: --
Manufacturer article number: NBPBT0010033
Piston for plunger cylinder - NBPFT1003320
Article number: ND100033FT
Available to order
Manufacturer: --
Manufacturer article number: NBPFT1003320
Short piston for plunger cylinder - NBPBT0011039
Article number: ND110039BT
Available to order
Manufacturer: --
Manufacturer article number: NBPBT0011039
Piston for plunger cylinder - NBPFT1103930
Article number: ND110039FT
Available to order
Manufacturer: --
Manufacturer article number: NBPFT1103930
Short piston for plunger cylinder - NBPBT0012039
Article number: ND120039BT
Available to order
Manufacturer: --
Manufacturer article number: NBPBT0012039
Piston for plunger cylinder - NBPFT1203930
Article number: ND120039FT
Available to order
Manufacturer: --
Manufacturer article number: NBPFT1203930
