Dugattyú szűrési segédlet
A menetes dugattyú leírása
- A menetes dugattyú esetében a dugattyúrúd és a dugattyú közötti kapcsolatot menetes szerkezet biztosítja.
- Ez a kialakítás növeli a dugattyúrúd és a dugattyú közötti koncentricitást, ezzel megakadályozva az esetleges hézagok és a vezetőcsavar fejének rezgését.
- A menetes kialakítás egyben megakadályozza a lazulást is, amely kiküszöböli a dugattyúrúd és a dugattyú közötti menetes kapcsolat meghibásodásának kockázatát.
- A dugattyú acélból készül és képes nagy nyomás alatti működésre. Maximális terhelhetősége 250 bar.

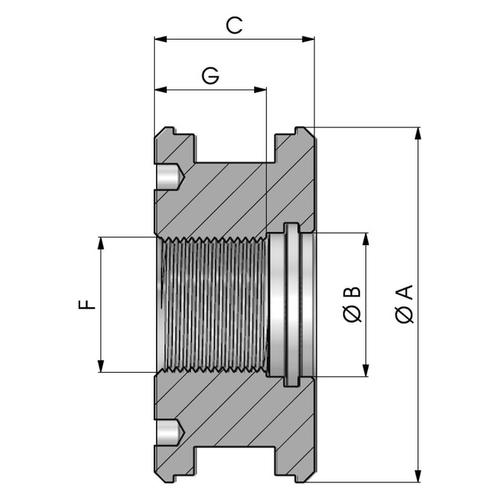

A menetes dugattyú mérettáblázata
Kattintson a cikkszámra a kiválasztott termék árának és raktárkészletének megtekintéséhez.
| Cikkszám | A | B | C | F | G | kg |
|---|---|---|---|---|---|---|
| ND025010F0 | 25 | 11 | 25 | M10X1.5 | 17.5 | 0,04 |
| ND030012F0 | 30 | 13 | 25 | M12X1.5 | 17.5 | 0,07 |
| ND032012F0 | 32 | 13 | 33 | M12X1.5 | 25.5 | 0,12 |
| ND035014F0 | 35 | 17 | 33 | M14X1.5 | 23 | 0,14 |
| ND040016F0 | 40 | 17 | 40 | M16X1.5 | 30 | 0,22 |
| ND045016F0 | 45 | 17 | 40 | M16X1.5 | 30 | 0,30 |
| ND050020F0 | 50 | 21 | 40 | M20X1.5 | 28 | 0,31 |
| ND060024F0 | 60 | 25 | 45 | M24X2 | 30 | 0,56 |
| ND063024F0 | 63 | 25 | 45 | M24X2 | 30 | 0,65 |
| ND065024F0 | 65 | 25 | 45 | M24X2 | 30 | 0,72 |
| ND070024F0 | 70 | 25 | 45 | M24X2 | 30 | 0,77 |
| ND075027F0 | 75 | 28 | 45 | M27X2 | 30 | 0,88 |
| ND080027F0 | 80 | 28 | 45 | M27X2 | 30 | 1,06 |
| ND080030F0 | 80 | 33 | 45 | M30X2 | 30 | 1,00 |
| ND090033F0 | 90 | 35 | 50 | M33X2 | 35 | 1,54 |
| ND100033F0 | 100 | 35 | 50 | M33X2 | 35 | 1,93 |
| ND110039F0 | 110 | 42 | 50 | M39X3 | 35 | 2,35 |
| ND120042F0 | 120 | 45 | 50 | M42X3 | 35 | 2,89 |
| ND125042F0 | 125 | 45 | 50 | M42X3 | 35 | 3,17 |
| ND130042F0 | 130 | 45 | 50 | M42X3 | 35 | 3,52 |
| ND140048F0 | 140 | 51 | 58 | M48X3 | 40 | 4,78 |
| ND150048F0 | 150 | 51 | 58 | M48X3 | 40 | 5,72 |
| ND150052F0 | 150 | 54 | 58 | M52X3 | 40 | 5,57 |
| ND160052F0 | 160 | 54 | 58 | M52X3 | 40 | 6,59 |
