Szárvezető szűrési segédlet
A cső belső átmérő névleges méret.
A cső további illesztési megmunkálást igényel.
A pontos méretekért érdeklődjön kollégáinknál.
A középhosszú kivitelű szárvezető leírása
- A középhosszú kivitelű munkahenger szárvezető kategóriában található termékek, hosszúságukat tekintve a 65 mm - 85 mm közötti tartományba tartoznak.
- Anyagát tekintve öntöttvasból készül és 250 bar maximális nyomásnak képes ellenállni.

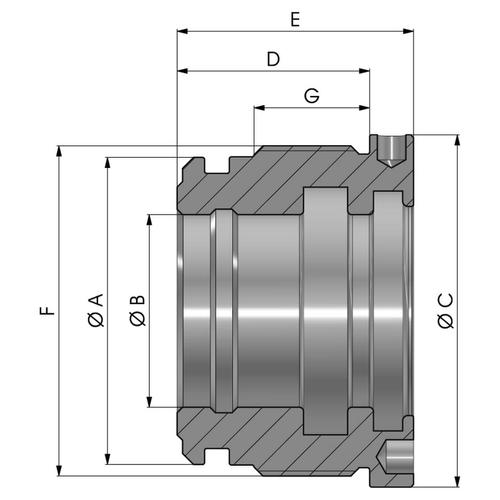

A középhosszú kivitelű szárvezető mérettáblázata
Kattintson a cikkszámra a kiválasztott termék árának és raktárkészletének megtekintéséhez.
| Cikkszám | A | B | C | D | E | F | G | kg |
|---|---|---|---|---|---|---|---|---|
| NV11510M40 | 100 | 40 | 114 | 55 | 65 | M105x2 | 30 | 3,16 |
| NV11510M50 | 100 | 50 | 114 | 55 | 65 | M105x2 | 30 | 2,85 |
| NV11510M60 | 100 | 60 | 114 | 55 | 65 | M105x2 | 30 | 2,38 |
| NV11510M63 | 100 | 63 | 114 | 55 | 65 | M105x2 | 30 | 2,27 |
| NV11510M70 | 100 | 70 | 114 | 55 | 65 | M105x2 | 30 | 1,92 |
| NV12510M45 | 110 | 45 | 124 | 60 | 70 | M115x2 | 36 | 4,17 |
| NV12511M50 | 110 | 50 | 124 | 60 | 70 | M115x2 | 36 | 3,97 |
| NV12511M60 | 110 | 60 | 124 | 60 | 70 | M115x2 | 36 | 3,49 |
| NV12511M70 | 110 | 70 | 124 | 60 | 70 | M115x2 | 36 | 2,89 |
| NV14012M50 | 120 | 50 | 139 | 60 | 70 | M125x2 | 36 | 4,99 |
| NV14012M60 | 120 | 60 | 139 | 60 | 70 | M125x2 | 36 | 4,51 |
| NV14012M70 | 120 | 70 | 139 | 60 | 70 | M125x2 | 36 | 3,88 |
| NV14012M80 | 120 | 80 | 139 | 60 | 70 | M125x2 | 36 | 3,29 |
| NV14512M60 | 125 | 60 | 144 | 65 | 75 | M130x2 | 41 | 5,38 |
| NV14512M70 | 125 | 70 | 144 | 65 | 75 | M130x2 | 41 | 4,74 |
| NV14512M80 | 125 | 80 | 144 | 65 | 75 | M130x2 | 41 | 4,09 |
| NV14512M90 | 125 | 90 | 144 | 65 | 75 | M130x2 | 41 | 3,29 |
| NV16014M70 | 140 | 70 | 159 | 65 | 75 | M145x2 | 41 | 6,48 |
| NV16014M80 | 140 | 80 | 159 | 65 | 75 | M145x2 | 41 | 5,87 |
| NV17012M70 | 150 | 70 | 169 | 70 | 82 | M155x2 | 46 | 8,52 |
| NV17015M80 | 150 | 80 | 169 | 70 | 82 | M155x2 | 46 | 7,84 |
| NV18016M80 | 160 | 80 | 179 | 73 | 85 | M165x2 | 49 | 9,69 |
| NV18016M90 | 160 | 90 | 179 | 73 | 85 | M165x2 | 49 | 8,81 |
Head medium-length - NBTM011510040
Article number: NV11510M40
Available to order
Manufacturer: --
Manufacturer article number: NBTM011510040
Head medium-length - NBTM011510050
Article number: NV11510M50
Available to order
Manufacturer: --
Manufacturer article number: NBTM011510050
Head medium-length - NBTM011510060
Article number: NV11510M60
Available to order
Manufacturer: --
Manufacturer article number: NBTM011510060
Head medium-length - NBTM011510063
Article number: NV11510M63
Available to order
Manufacturer: --
Manufacturer article number: NBTM011510063
Head medium-length - NBTM011510070
Article number: NV11510M70
Available to order
Manufacturer: --
Manufacturer article number: NBTM011510070
Head medium-length - NBTM012510045
Article number: NV12510M45
Available to order
Manufacturer: --
Manufacturer article number: NBTM012510045
Head medium-length - NBTM012511050
Article number: NV12511M50
Available to order
Manufacturer: --
Manufacturer article number: NBTM012511050
Head medium-length - NBTM012511060
Article number: NV12511M60
Available to order
Manufacturer: --
Manufacturer article number: NBTM012511060
Head medium-length - NBTM012511070
Article number: NV12511M70
Available to order
Manufacturer: --
Manufacturer article number: NBTM012511070
Head medium-length - NBTM014012050
Article number: NV14012M50
Available to order
Manufacturer: --
Manufacturer article number: NBTM014012050
Head medium-length - NBTM014012060
Article number: NV14012M60
Available to order
Manufacturer: --
Manufacturer article number: NBTM014012060
Head medium-length - NBTM014012070
Article number: NV14012M70
Available to order
Manufacturer: --
Manufacturer article number: NBTM014012070
Head medium-length - NBTM014012080
Article number: NV14012M80
Available to order
Manufacturer: --
Manufacturer article number: NBTM014012080
Head medium-length - NBTM014512560
Article number: NV14512M60
Available to order
Manufacturer: --
Manufacturer article number: NBTM014512560
Head medium-length - NBTM014512570
Article number: NV14512M70
Available to order
Manufacturer: --
Manufacturer article number: NBTM014512570
Head medium-length - NBTM014512580
Article number: NV14512M80
Available to order
Manufacturer: --
Manufacturer article number: NBTM014512580
Head medium-length - NBTM014512590
Article number: NV14512M90
Available to order
Manufacturer: --
Manufacturer article number: NBTM014512590
Head medium-length - NBTM016014070
Article number: NV16014M70
Available to order
Manufacturer: --
Manufacturer article number: NBTM016014070
Head medium-length - NBTM016014080
Article number: NV16014M80
Available to order
Manufacturer: --
Manufacturer article number: NBTM016014080
Head medium-length - NBTM017012070
Article number: NV17012M70
Available to order
Manufacturer: --
Manufacturer article number: NBTM017012070
Head medium-length - NBTM017015080
Article number: NV17015M80
Available to order
Manufacturer: --
Manufacturer article number: NBTM017015080
Head medium-length - NBTM018016080
Article number: NV18016M80
Available to order
Manufacturer: --
Manufacturer article number: NBTM018016080
Head medium-length - NBTM018016090
Article number: NV18016M90
Available to order
Manufacturer: --
Manufacturer article number: NBTM018016090
