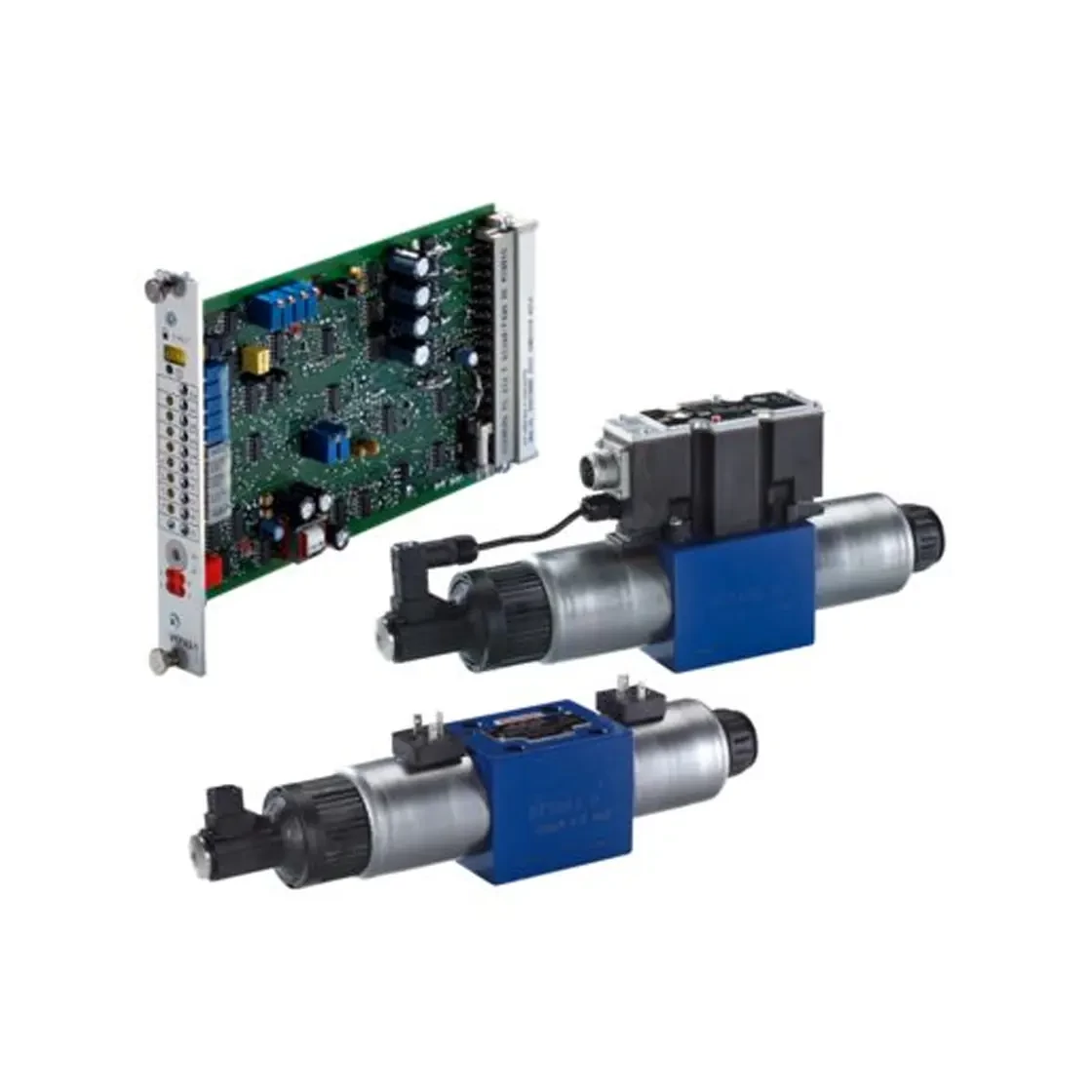

Proportional DCV - NA06/W04/24VDC/0...±10V - 4WREE 6 W04-2X/G24K31/A1V OBE

4WRE(E)6,10 Proportional Directional Control Valve: Precision and High Performance

This industrial hydraulic valve in Size 6 is designed for the high-performance range, offering reliable and precise control of oil flow direction according to its hydraulic symbol. Its high accuracy is achieved through internal piston position feedback, making it ideal for demanding industrial applications.

Key Features

• Industrial High-Performance: Engineered for demanding hydraulic systems.
• Reliable Control: Ensures consistent and dependable oil flow direction.
• High Accuracy: Achieved through internal piston position feedback.
• Spool Valve: Provides precise control of hydraulic functions.
• Direct Actuation: Delivers quick and accurate response.
• Integrated Electronics: Features on-board electronics for simplified integration and control.

Technical Specifications

• Product Family: 4WRE(E)6,10
• Size: 6
• Spool Symbol: Symbol W
• Type of Actuation: Electrical with on-board electronics
• Connection Diagram: ISO 4401-03-02-0-05
• Type of Connection: Subplate mounting
• Number of Ports: 4
• Number of Switching Positions: 3
• Supply Voltage: 24 VDC
• Electrical Connector: 7-pole (6 + PE) connector
• Electrical Connection Description: Connector 7-pole (6 + PE) according to EN 175201-804
• Connectivity: Analog, command value ±10 V
• Max. Operating Pressure: 315 bar
• Max. Flow: 20 L/min
• Nominal Flow: 4 L/min
• Hydraulic Fluid Compatibility: HL, HLP, HLPD, HVLP, HVLPD, HETG, HEES, HEPG, HFDU, HFDR
• Seals Material: FKM
• Weight: 2.44 kg
