S300
Szárvezető szűrési segédlet
A cső belső átmérő névleges méret.
A cső további illesztési megmunkálást igényel.
A pontos méretekért érdeklődjön kollégáinknál.
Az S300 kivitelű szárvezető leírása
- Az S300 kivitelű szárvezetők 180 mm feletti átmérővel rendelkeznek és magas nyomás ellenállására tervezték.
- Maximális nyomásállósága 300 bar.
- Anyaga öntöttvas.

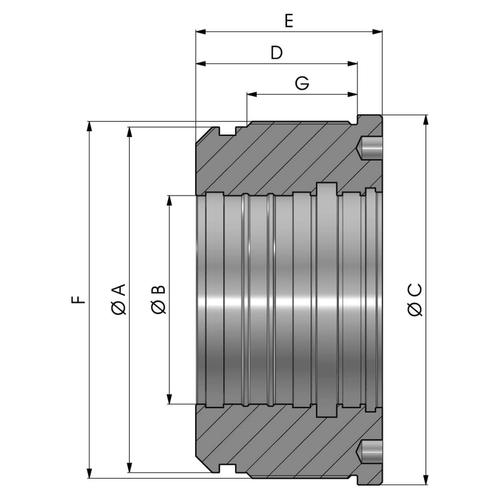

Az S300 kivitelű szárvezető mérettáblázata
Kattintson a cikkszámra a kiválasztott termék árának és raktárkészletének megtekintéséhez.
| Cikkszám | A | B | C | D | E | F | G | kg |
|---|---|---|---|---|---|---|---|---|
| NV21018008 | 180 | 80 | 209 | 92 | 110 | M188x2.5 | 58 | 17,07 |
| NV21018009 | 180 | 90 | 209 | 92 | 110 | M188x2.5 | 58 | 15,75 |
| NV21018010 | 180 | 100 | 209 | 92 | 110 | M188x2.5 | 58 | 14,55 |
| NV21018012 | 180 | 120 | 209 | 92 | 110 | M188x2.5 | 58 | 11,50 |
| NV22020009 | 200 | 90 | 219 | 92 | 110 | M208x2.5 | 58 | 20,02 |
| NV22020010 | 200 | 100 | 219 | 92 | 110 | M208x2.5 | 58 | 18,92 |
| NV22020012 | 200 | 120 | 219 | 92 | 110 | M208x2.5 | 58 | 16,00 |
| NV22020014 | 200 | 140 | 219 | 92 | 110 | M208x2.5 | 58 | 12,55 |
| NV25022010 | 220 | 100 | 249 | 104 | 122 | M228x2.5 | 70 | 27,50 |
| NV25022011 | 220 | 110 | 249 | 104 | 122 | M228x2.5 | 70 | 26,07 |
| NV25022012 | 220 | 120 | 249 | 104 | 122 | M228x2.5 | 70 | 24,40 |
| NV25022015 | 220 | 150 | 249 | 104 | 122 | M228x2.5 | 70 | 18,38 |
| NV25022016 | 220 | 160 | 249 | 104 | 122 | M228x2.5 | 70 | 15,92 |
| NV27025012 | 250 | 120 | 268 | 117 | 135 | M258x2.5 | 80 | 37,35 |
| NV27025015 | 250 | 150 | 268 | 117 | 135 | M258x2.5 | 80 | 30,80 |
Head S300 - NBT210180080
Article number: NV21018008
Available to order
Manufacturer: --
Manufacturer article number: NBT210180080
Head S300 - NBT210180090
Article number: NV21018009
Available to order
Manufacturer: --
Manufacturer article number: NBT210180090
Head S300 - NBT210180100
Article number: NV21018010
Available to order
Manufacturer: --
Manufacturer article number: NBT210180100
Head S300 - NBT210180120
Article number: NV21018012
Available to order
Manufacturer: --
Manufacturer article number: NBT210180120
Head S300 - NBT220200090
Article number: NV22020009
Available to order
Manufacturer: --
Manufacturer article number: NBT220200090
Head S300 - NBT220200100
Article number: NV22020010
Available to order
Manufacturer: --
Manufacturer article number: NBT220200100
Head S300 - NBT220200120
Article number: NV22020012
Available to order
Manufacturer: --
Manufacturer article number: NBT220200120
Head S300 - NBT220200140
Article number: NV22020014
Available to order
Manufacturer: --
Manufacturer article number: NBT220200140
Head S300 - NBT250220100
Article number: NV25022010
Available to order
Manufacturer: --
Manufacturer article number: NBT250220100
Head S300 - NBT250220110
Article number: NV25022011
Available to order
Manufacturer: --
Manufacturer article number: NBT250220110
Head S300 - NBT250220120
Article number: NV25022012
Available to order
Manufacturer: --
Manufacturer article number: NBT250220120
Head S300 - NBT250220150
Article number: NV25022015
Available to order
Manufacturer: --
Manufacturer article number: NBT250220150
Head S300 - NBT250220160
Article number: NV25022016
Available to order
Manufacturer: --
Manufacturer article number: NBT250220160
Head S300 - NBT270250120
Article number: NV27025012
Available to order
Manufacturer: --
Manufacturer article number: NBT270250120
Head S300 - NBT270250150
Article number: NV27025015
Available to order
Manufacturer: --
Manufacturer article number: NBT270250150
