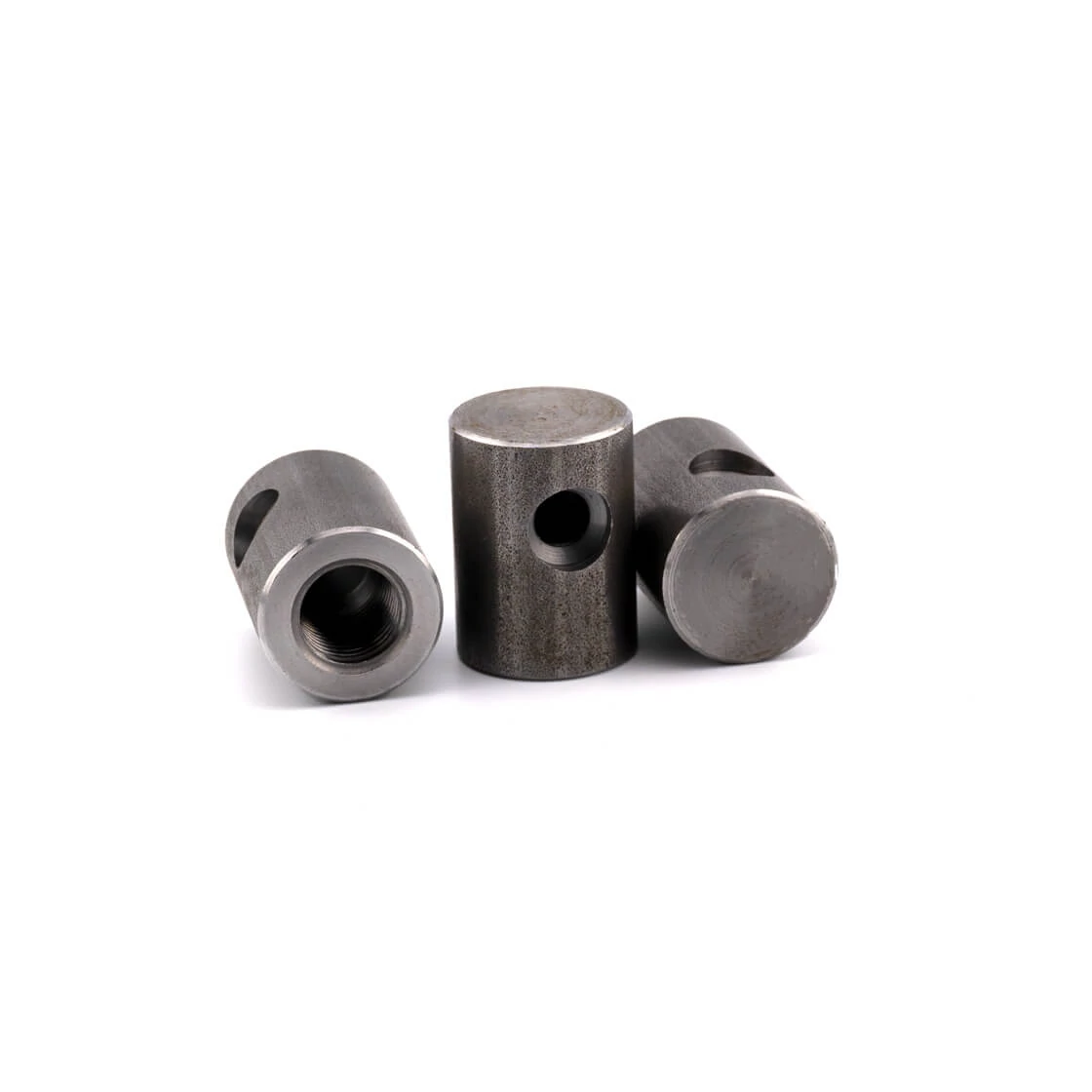

Description of the Weldable Elbow with Female Thread
Advantages:
- Design flexibility: The weldable version allows the user to weld the fitting in the desired position and angle, increasing the system’s adaptability.
- Strong and solid connection: Welding ensures a secure attachment of the fitting, increasing the overall strength and stability of the assembly.
- Leak resistance: Welded connections are typically leak-free, which is critical in high-pressure hydraulic systems.
Features:
- Material: These types of fittings are made of steel, which is strong and excellent for welding.
- Design: The elbow shape allows for changes in pipe direction, increasing system flexibility and design options.
- Size and thread: Available in various sizes and internal threads to suit different pipe sizes and applications.
Applications:
- Hydraulic systems: Where pipeline direction changes or welded joints are required.
- Heavy machinery: In high-performance machines and equipment where strong, solid connections are essential.
- Construction and agriculture: Where leak-free, reliable connections are crucial.

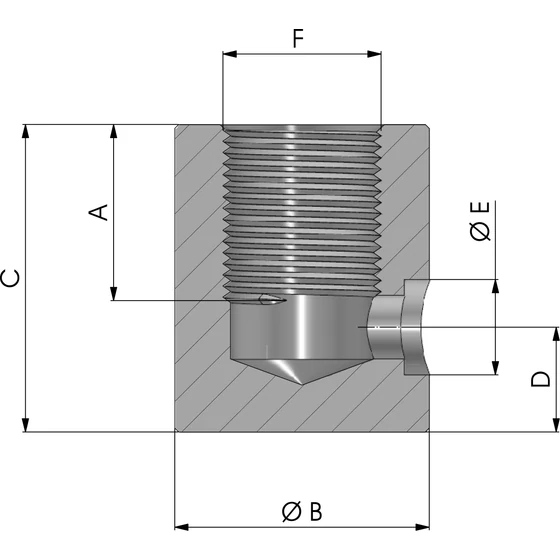

Size Chart of the Weldable Elbow with Female Thread
Click on the item number to view the price and stock availability of the selected product.
| Item number |
F |
C |
B |
A |
D |
E |
kg |
| NBCTG14000 |
1/4" |
30 |
22 |
14 |
11 |
10.5 |
0.06 |
| NBCTG38000 |
3/8" |
35 |
26 |
16 |
12 |
12.5 |
0.10 |
| NBCTG12000 |
1/2" |
35 |
30 |
18 |
13 |
15.5 |
0.12 |
| Item number |
F |
C |
B |
A |
D |
E |
kg |
| NBCTM16150 |
M16x1.5 |
30 |
22 |
14 |
11 |
10.5 |
0.05 |
| NBCTM18150 |
M18x1.5 |
35 |
26 |
16 |
12 |
12.5 |
0.09 |
| NBCTM22150 |
M22x1.5 |
35 |
30 |
18 |
13 |
15.5 |
0.11 |
