Tube Coupling (AD-BSP) - (K-K) - G1/2
0.0000 € + VAT
Qty:pcs
Notification

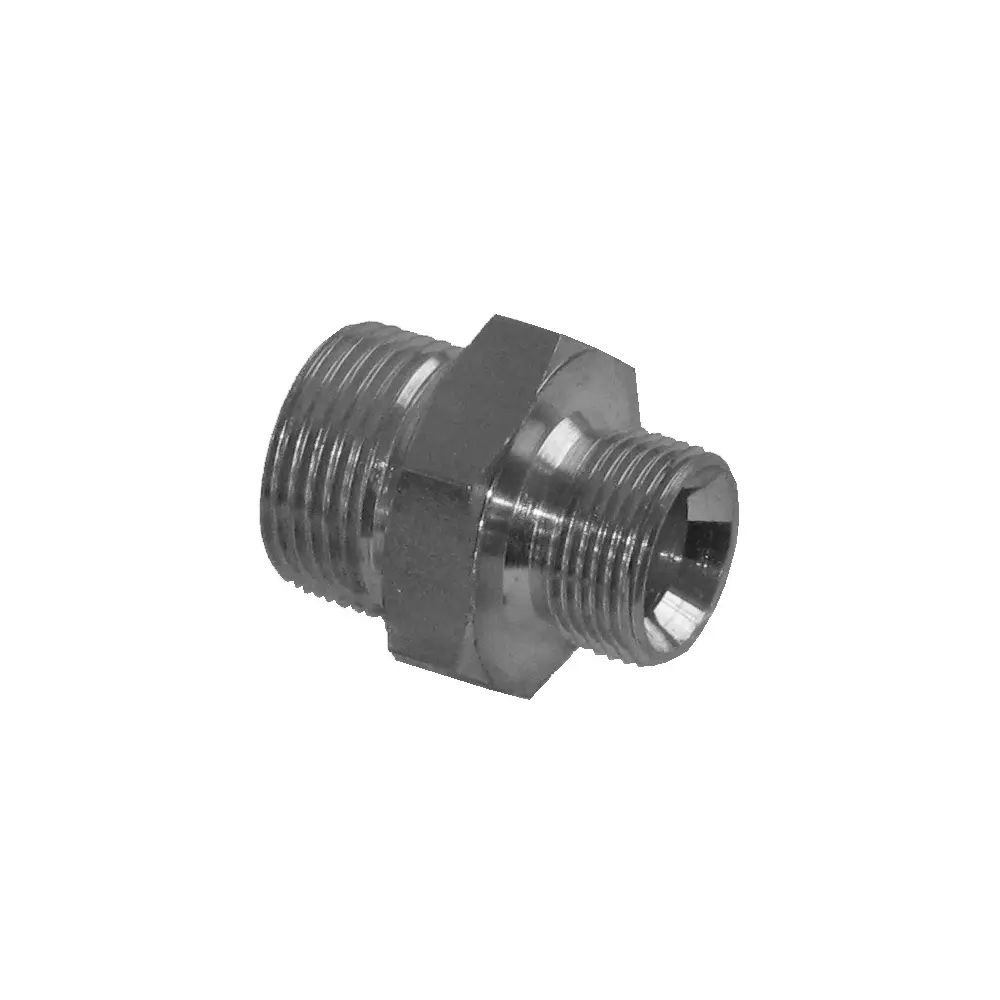

Tube Coupling (AD-BSP) - (K-K) - G1/2" - G5/8"

0.0000 € + VAT
Qty:pcs
Notification
Material Steel
Connection 1 BSP external thread
Connection 2 BSP external thread
Connection F1 (inch) G 1/2″ -14
Connection F2 (mm) G 5/8″ -14
Connector sub-type AD-BSP (K-K)
Connector type Straight connector - AD
Surface Galvanic coating
H (mm) 27
L1 (mm) 14
L2 (mm) 14
L (mm) 43
Structural form Straight adapter
Sealing 1 60° internal cone, flat gasket
Sealing 2 60° internal cone, flat gasket
Operating pressure (bar) 315
Operating pressure (PSI) 4568
Manufacturer article number: GEHRED08HB10
Model: HQCCK0810E
Availability: Available to order
Manufacturer: Nem besorolt
