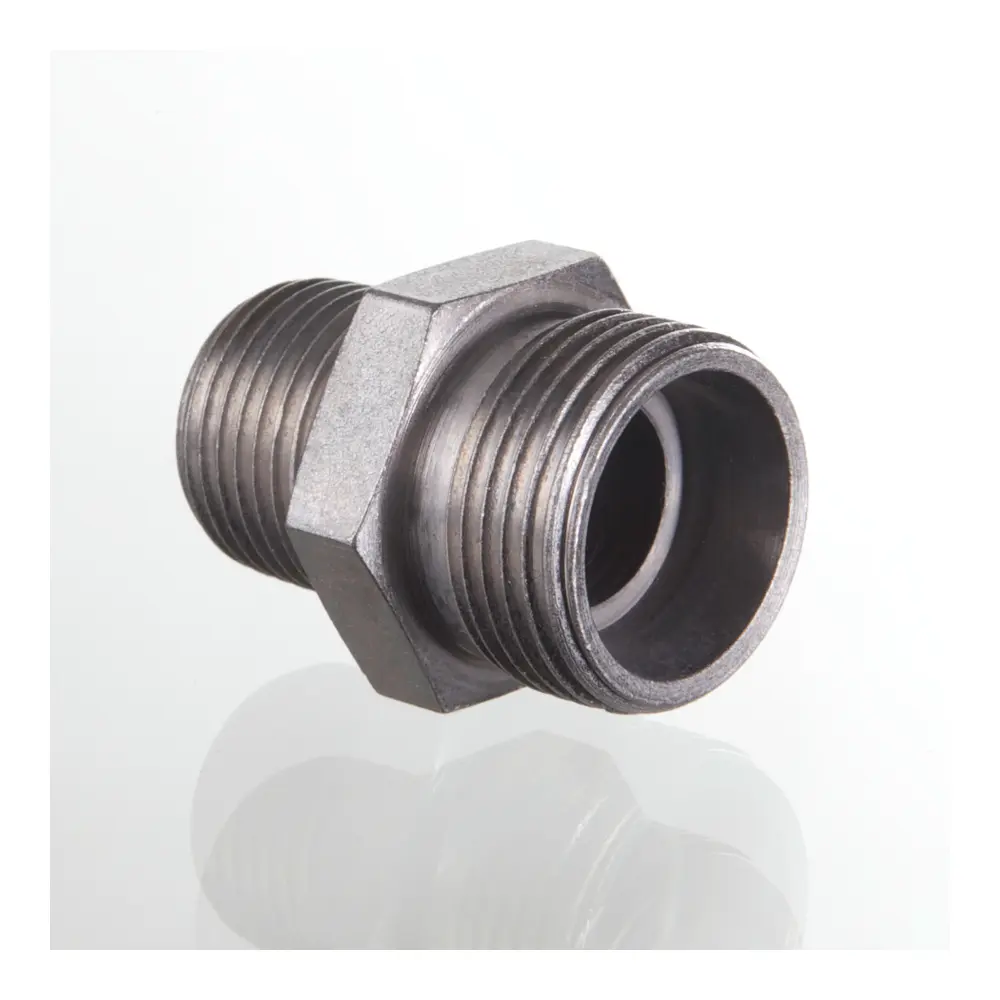

Tube Coupling - GE 08-LLR - 1/4
6.9893 € + VAT
Qty:pcs
Add to Cart

Tube Coupling - GE 08-LLR - 1/4"

6.9893 € + VAT
Qty:pcs
Add to Cart

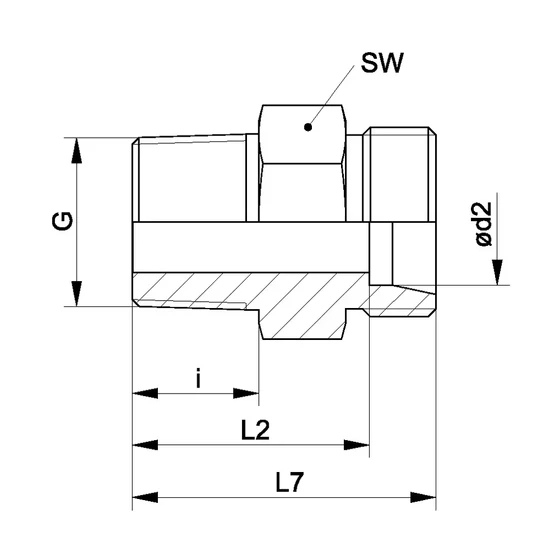

Material Steel
Connection 1 BSPT external thread
Connection 2 Metric external thread
Connection G1 (mm) R 1/4" K
Connection G2 (mm) M12x1
Connector sub-type Metrikus/BSP menet - extra könnyű kivitel (GE-LL/R)
Connector type Egyenes becsavarható - GE
Ø d2 (mm) 8
Surface Galvanic coating
i (mm) 12
Design LL
L2 (mm) 20.5
L7 (mm) 26
SW (mm) 14
Standard DIN 2353/ISO 8434-1, DIN 3852-1
Structural form Straight screw-in fitting
Extent Nut, without cutting ring
Sealing 1 Thread sealing
Sealing 2 24° internal cone
Operating pressure (bar) 100
Model: HQCGE08LLR040
Availability: 9 pcs in stock
Manufacturer: Nem besorolt
