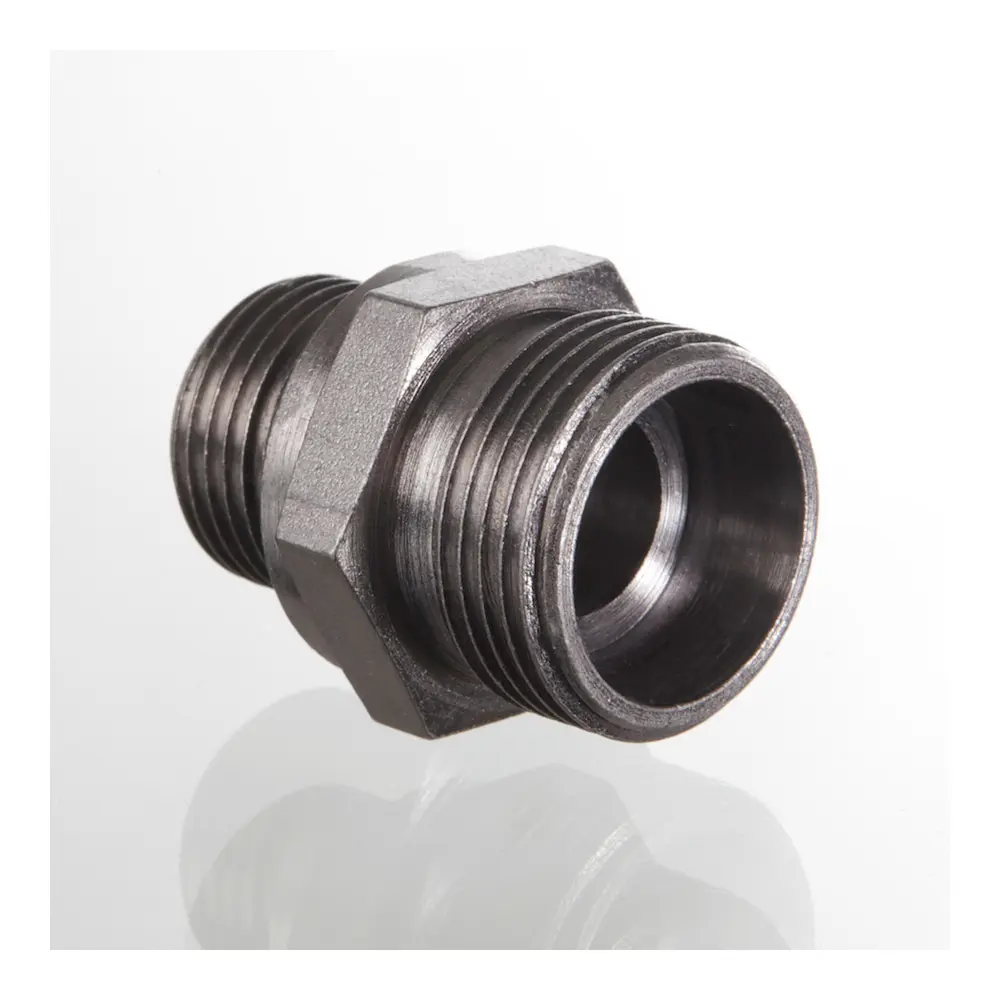

Tube Coupling - GE 08-LM M16×1,5
2.7458 € + VAT
Qty:pcs
Add to Cart

Tube Coupling - GE 08-LM M16×1,5

2.7458 € + VAT
Qty:pcs
Add to Cart

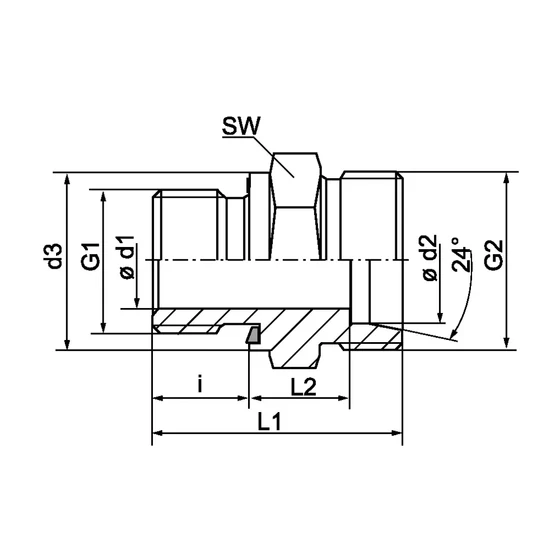

Material Steel
Connection 1 Metric external thread
Connection 2 Metric external thread
Connection G1 (mm) M 16 x 1,5
Connection G2 (mm) M 14 x 1,5
Connector sub-type Metrikus menet - könnyű kivitel (GE-L/M)
Connector type Egyenes becsavarható - GE
Pipe size (mm) 8
Ø d2 (mm) 8
Surface Galvanic coating
i (mm) 12
Design L
L1 (mm) 30.5
L2 (mm) 11.5
SW (mm) 22
Standard DIN 2353/ISO 8434-1, ISO 9974-2
Structural form Straight screw-in fitting
Extent Nut, without cutting ring
Sealing 1 E-form
Sealing 2 24° internal cone
Operating pressure (bar) 315
Manufacturer article number: TN92GG 08-LM16
Model: HQCGE08LM160
Availability: 27 pcs in stock
Manufacturer: Nem besorolt
