Tube Coupling - GE 10-LR-K 1/8
7.9878 € + VAT
Qty:pcs
Add to Cart

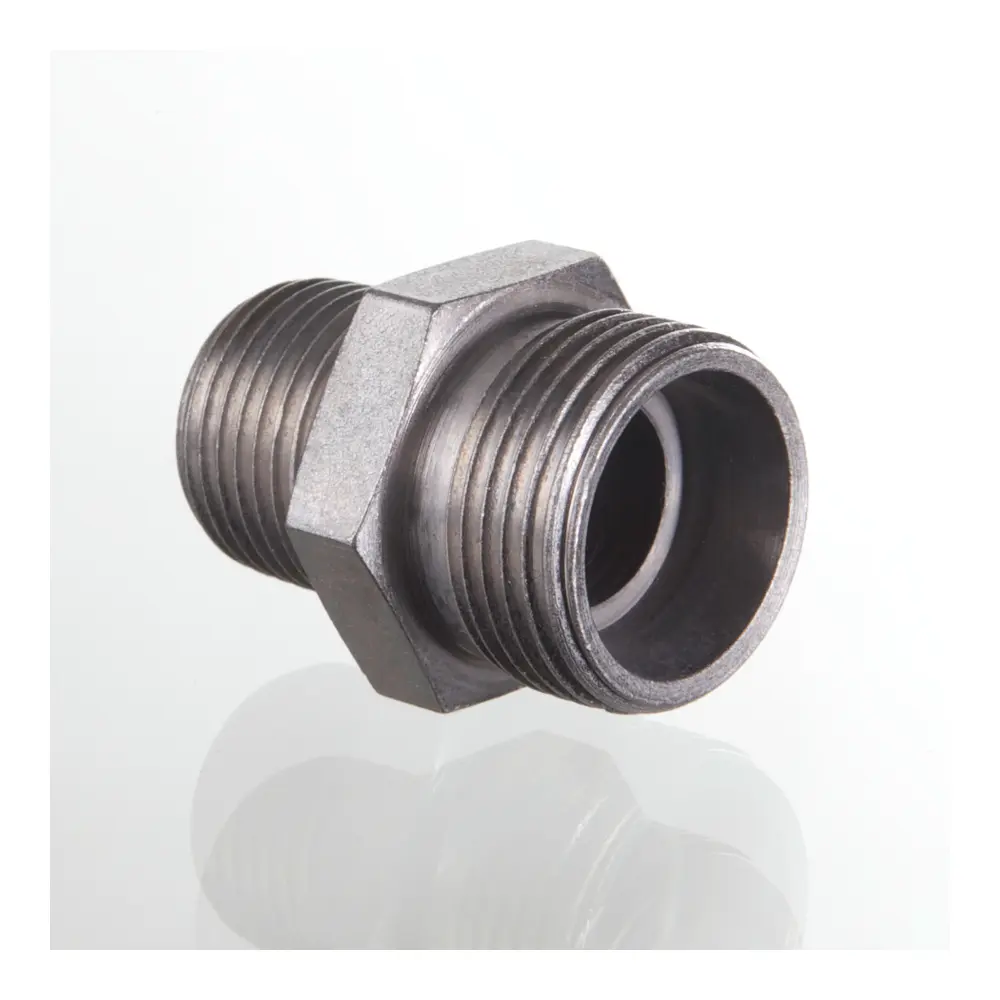

Tube Coupling - GE 10-LR-K 1/8"

7.9878 € + VAT
Qty:pcs
Add to Cart
Material Steel
Connection 1 BSPT external thread
Connection 2 Metric external thread
Connection G1 (mm) R 1/8" K
Connection G2 (mm) M16x1,5
Connector sub-type Metrikus/BSP menet - könnyű kivitel (GE-L/RK)
Connector type Egyenes becsavarható - GE

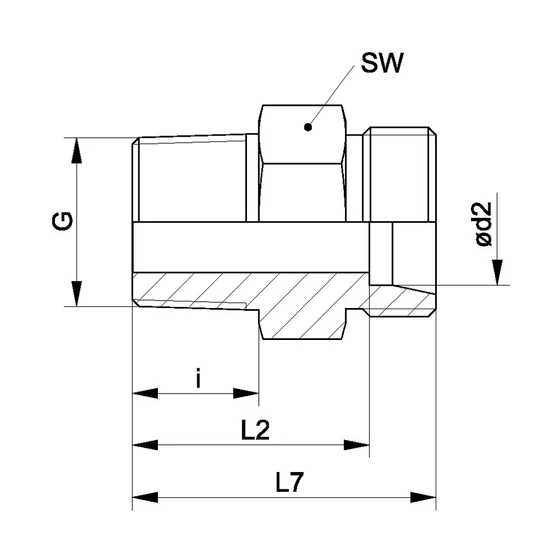

Ø d2 (mm) 10
Surface Galvanic coating
i (mm) 10.5
Design L
L2 (mm) 19.5
L7 (mm) 26.5
SW (mm) 17
Standard DIN 2353/ISO 8434-1, DIN 3852-2
Structural form Straight screw-in fitting
Extent Nut, without cutting ring
Sealing 1 Thread sealing
Sealing 2 24° internal cone
Operating pressure (bar) 315
Manufacturer article number: XVRKNW08HL1/8
Model: HQCGE10LK020
Availability: 12 pcs in stock
Manufacturer: Nem besorolt
