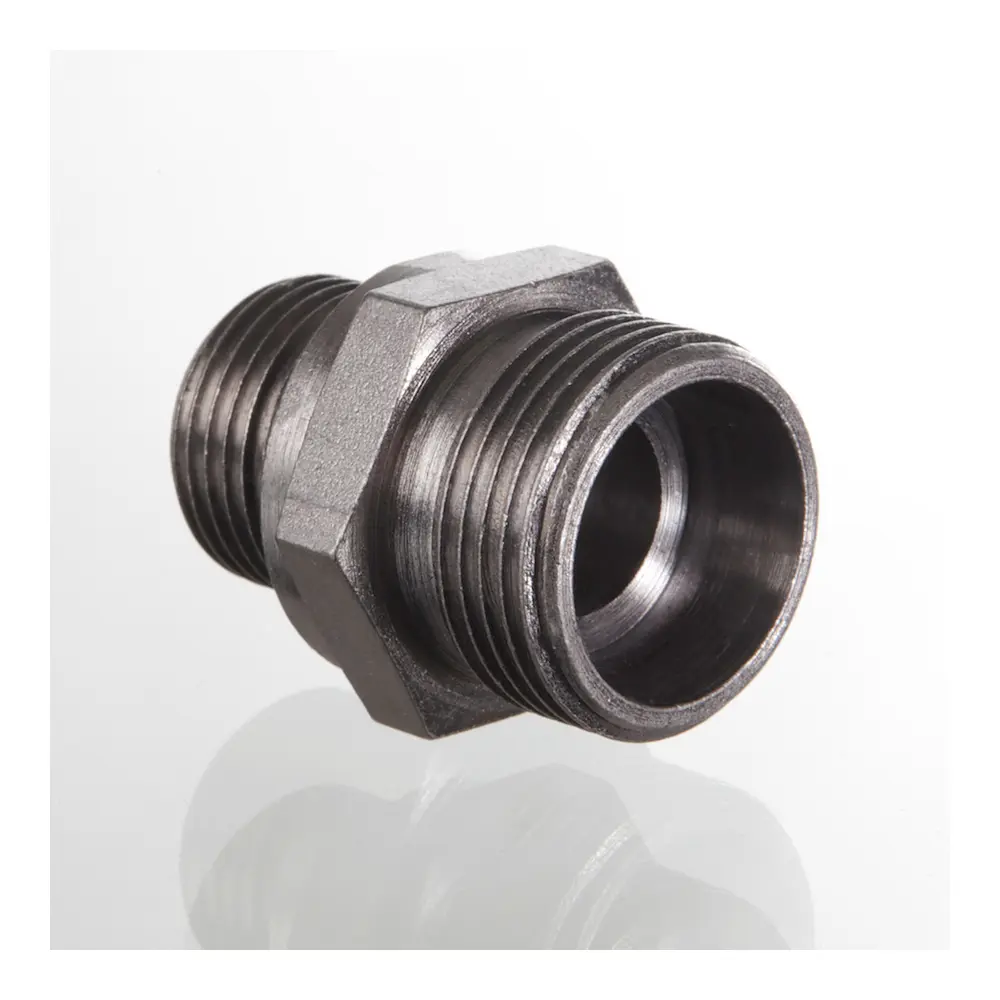

Tube Coupling - GE 12-LM
2.9954 € + VAT
Qty:pcs
Add to Cart

Tube Coupling - GE 12-LM

2.9954 € + VAT
Qty:pcs
Add to Cart
Material Steel
Connection 1 Metric external thread
Connection 2 Metric external thread
Connection G1 (mm) M 16 x 1,5
Connection G2 (mm) M 18 x 1,5
Connector sub-type Metrikus menet - könnyű kivitel (GE-L/M)
Connector type Egyenes becsavarható - GE
Screw sub-type Metric thread - light duty design (GE-L/M)
Screw type Straight screw-in fitting - GE
Pipe size (mm) 12

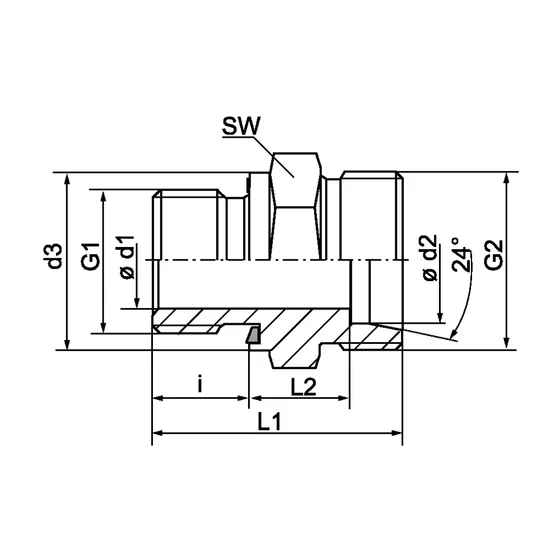

Ø d2 (mm) 12
Surface Galvanic coating
i (mm) 12
Design L
L1 (mm) 31.5
L2 (mm) 12.5
SW (mm) 22
Standard DIN 2353/ISO 8434-1, ISO 9974-2
Structural form Straight screw-in fitting
Extent Nut, without cutting ring
Sealing 1 E-form
Sealing 2 24° internal cone
Operating pressure (bar) 315
Manufacturer article number: VMNW10HLED
Model: HQCGE12LM160
Availability: 41 pcs in stock
Manufacturer: Nem besorolt
