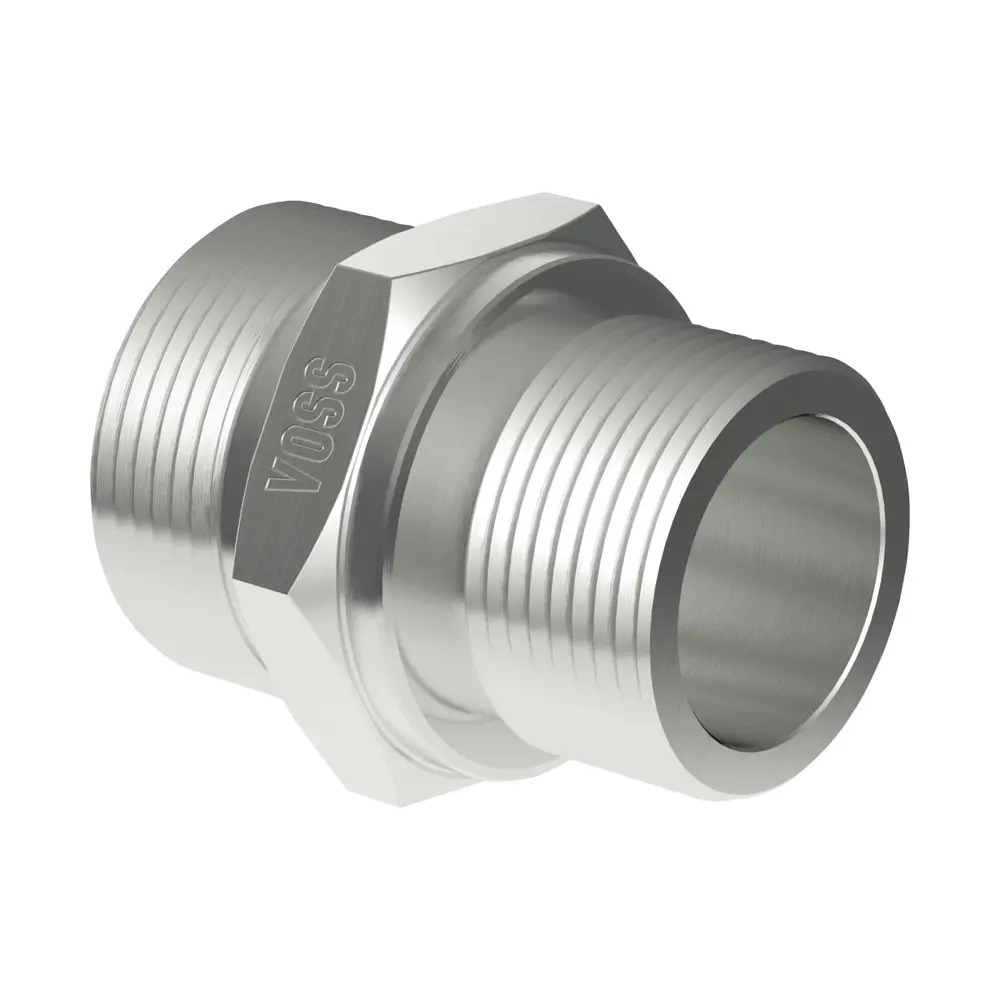

Tube Coupling - GE 15-LR 1/4
3.8352 € + VAT
Qty:pcs
Add to Cart

Tube Coupling - GE 15-LR 1/4"

3.8352 € + VAT
Qty:pcs
Add to Cart

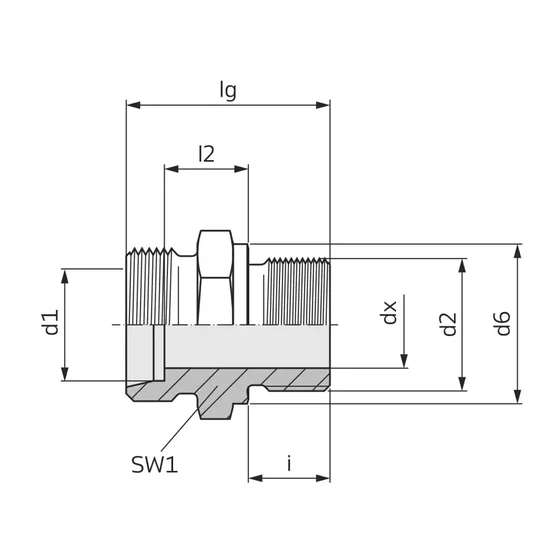

Material Steel
Connection 1 Metric external thread
Connection 2 BSPP external thread
Connection G1 (mm) M22x1,5
Connector sub-type Metrikus/BSP menet - könnyű kivitel (GE-L/R)
Connector type Egyenes becsavarható - GE
Pipe size (mm) 15
d6 (mm) 18
dx (mm) 6
Surface Galvanic coating
l2 (mm) 13
i (mm) 12
Design L
lg (mm) 32
SW1 (mm) 24
Standard DIN 3859-1
Structural form Straight screw-in fitting
Extent Nut, without cutting ring
Sealing 1 24° internal cone
Sealing 2 Sealing edge
Operating pressure (bar) 400
Main category Csatlakozók
SubCategory Csavarzatok
Manufacturer Nincs
Manufacturer article number: 114152822
Model: HQCGE15LR040
Availability: 123 pcs in stock
Manufacturer: Nem besorolt
