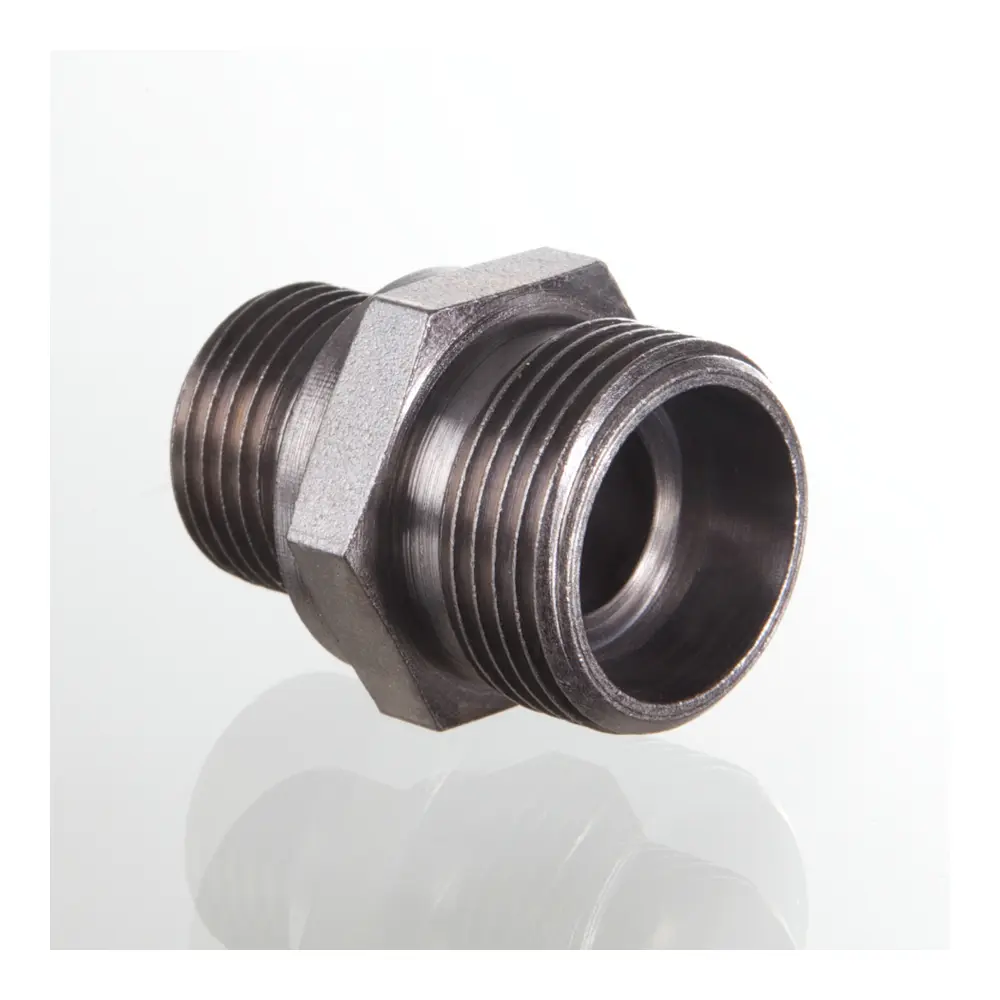

Tube Coupling - GE 18-LM M26×1,5
17.9726 € + VAT
Qty:pcs
Add to Cart

Tube Coupling - GE 18-LM M26×1,5

17.9726 € + VAT
Qty:pcs
Add to Cart

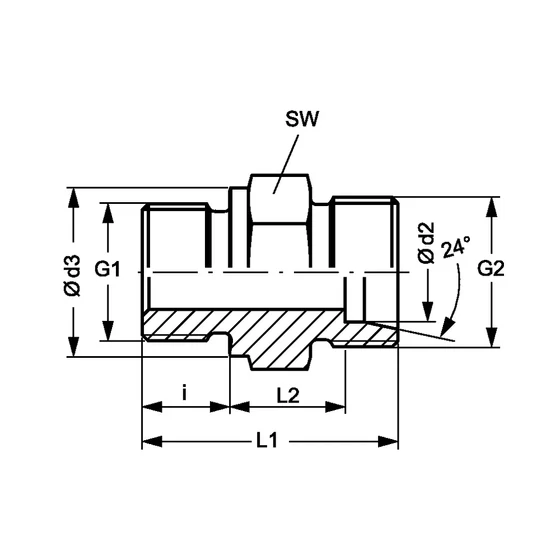

Material Steel
Connection 1 Metric external thread
Connection 2 Metric external thread
Connection G1 (mm) M 26 x 1,5
Connection G2 (mm) M 26 x 1,5
Connector sub-type Metrikus menet - könnyű kivitel (GE-L/M)
Connector type Egyenes becsavarható - GE
Pipe size (mm) 18
Ø d2 (mm) 18
Surface Galvanic coating
i (mm) 16
Design L
L1 (mm) 38
L2 (mm) 14.5
SW (mm) 32
Standard DIN 2353/ISO 8434-1, ISO 9974-2
Structural form Straight screw-in fitting
Extent Nut, without cutting ring
Sealing 1 Sealing edge
Sealing 2 24° internal cone
Operating pressure (bar) 315
Manufacturer article number: VMNW16HL26
Model: HQCGE18LM260
Availability: 4 pcs in stock
Manufacturer: Nem besorolt
