Tube Coupling - (GE-UNF) - JIC 1/2
1.9970 € + VAT
Qty:pcs
Add to Cart

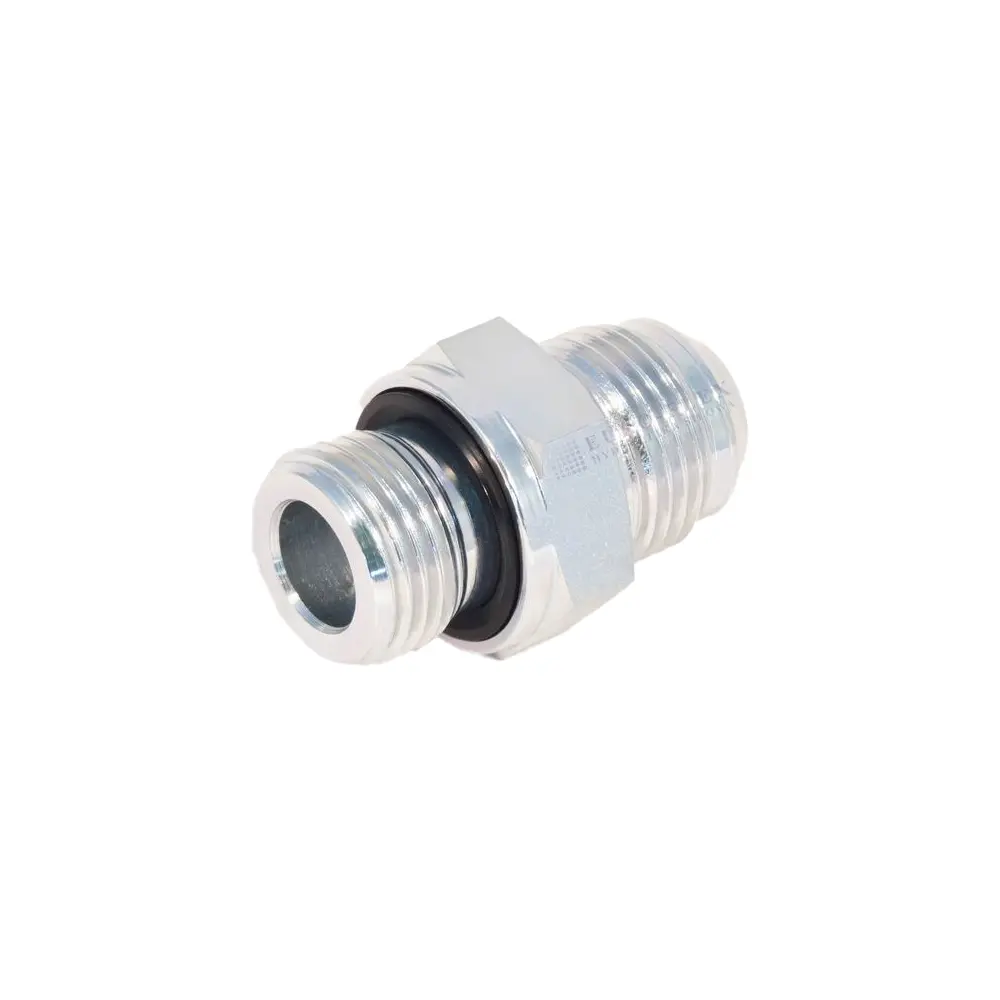

Tube Coupling - (GE-UNF) - JIC 1/2"-20 - UNF 9/16"

1.9970 € + VAT
Qty:pcs
Add to Cart

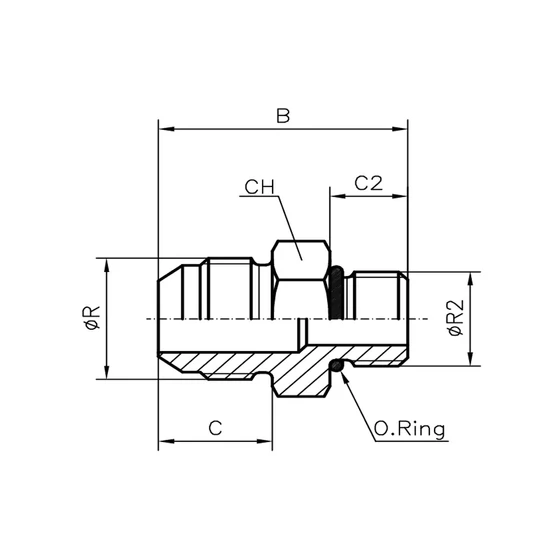

Material Steel
B (mm) 33
C2 (mm) 9.9
C (mm) 14
CH (mm) 17
Connection 1 UNF external thread
Connection 2 UNF external thread
Connection ØR (col) 1/2
Connector sub-type UNF menet - JIC kivitel (GE-JIC)
Connector type Egyenes becsavarható - GE
Pipe size (mm) 8
Pipe size (inch) 5/16
Surface Galvanic coating
Structural form Straight screw-in fitting
Sealing 1 37° external cone
Sealing 2 O-ring
Operating pressure (bar) 350
Manufacturer article number: BA.21.05.06
Model: HQCJGE05U060
Availability: 3 pcs in stock
Manufacturer: Nem besorolt
