Tube Coupling - G 06-S
4.0000 € + VAT
Qty:pcs
Add to Cart

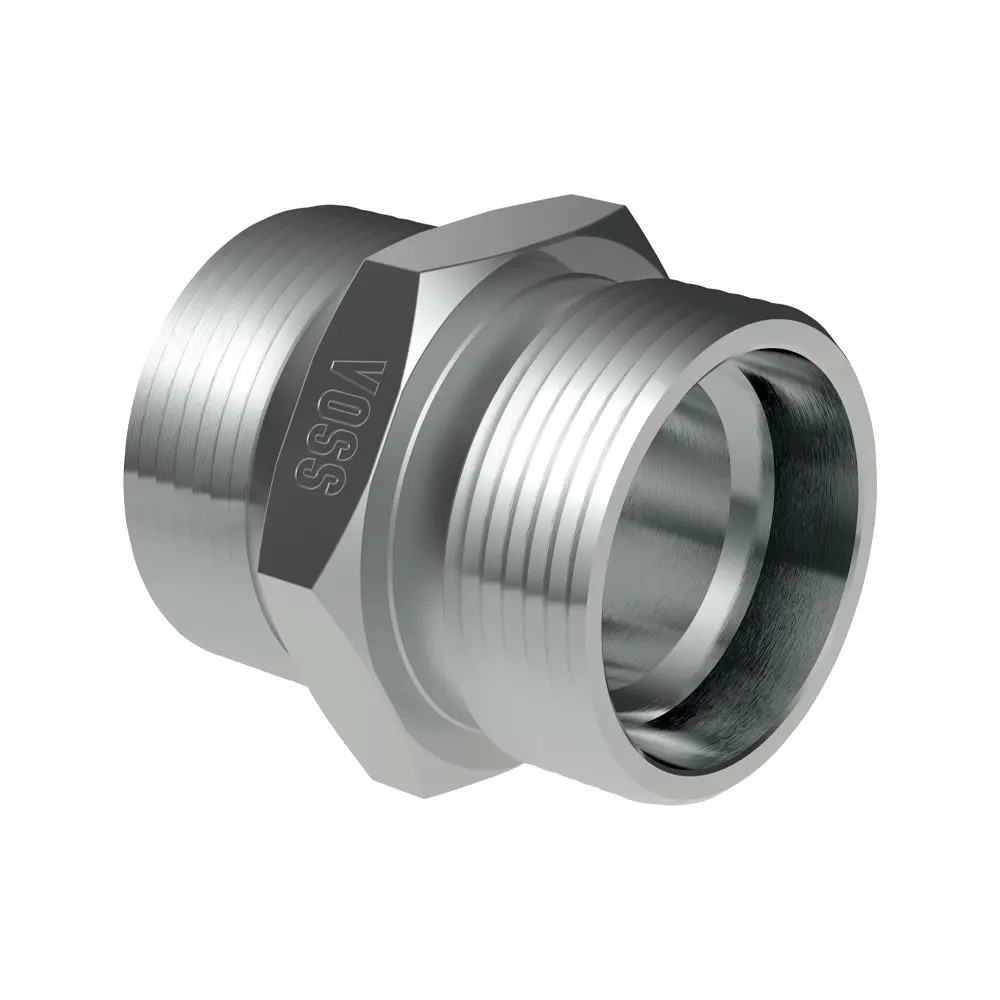

Tube Coupling - G 06-S

4.0000 € + VAT
Qty:pcs
Add to Cart

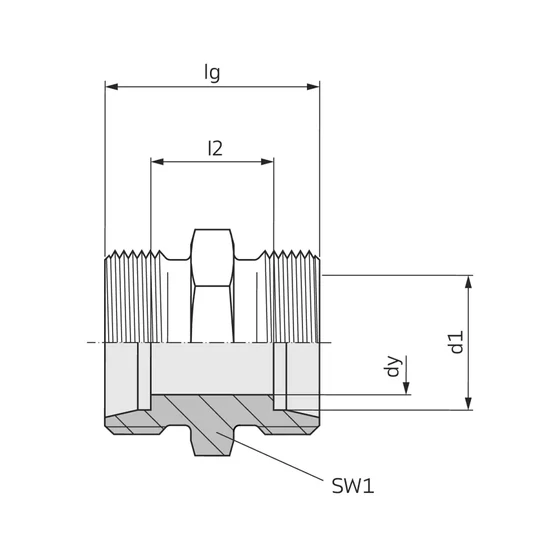

Material Steel
Connection 1 Metric external thread
Connection 2 Metric external thread
Connection G1 - G2 (mm) M14x1,5
Connector sub-type Metrikus menet - nehéz kivitel (G-S)
Connector type Straight fitting - G
Ø d1 (mm) 6
dy (mm) 4
Surface Galvanic coating
l2 (mm) 16
Design S
lg (mm) 30
SW1 (mm) 14
Standard DIN 2353/ISO 8434-1
Structural form Straight fitting
Extent Nut, without cutting ring
Sealing 1 24° internal cone
Sealing 2 24° internal cone
Operating pressure (bar) 800
Main category Fittings
SubCategory Straight union - G
Manufacturer Nincs
Manufacturer article number: 112502007
Model: HQCGG06S00
Availability: 4 pcs in stock
Manufacturer: Nem besorolt
