Tube Coupling - (EGE-R) - ORFS 11/16
7.5000 € + VAT
Qty:pcs
Notification

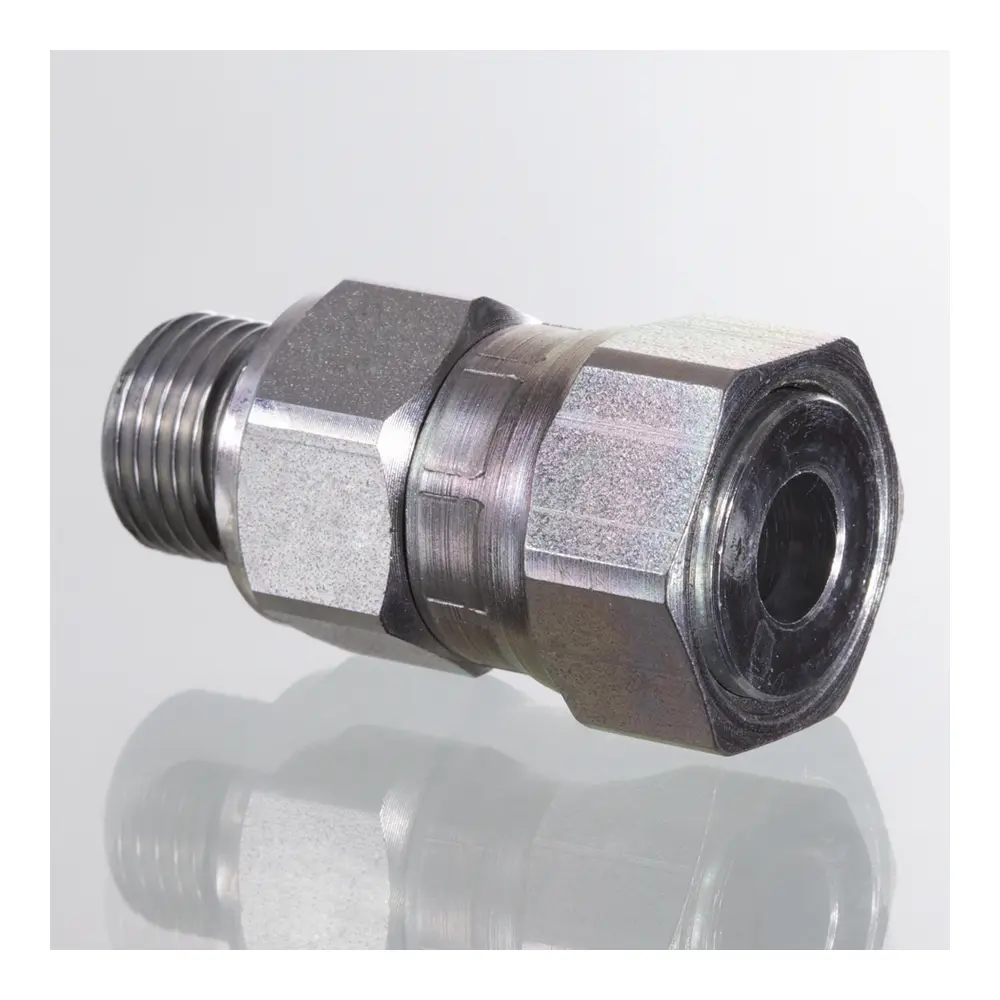

Tube Coupling - (EGE-R) - ORFS 11/16" - G1/2"

7.5000 € + VAT
Qty:pcs
Notification
Material Steel
Connection 1 BSPP external thread
Connection 2 UNF female swivel nut
Connection G1 (mm) G 1/2" -14
Connection G2 (mm) 11/16" -16 UN
Connector sub-type UNF/BSP menet - ORFS kivitel (EGE-ORFS/R)
Connector type Egyenes rátét becsavarható - EGE
Surface Galvanic coating

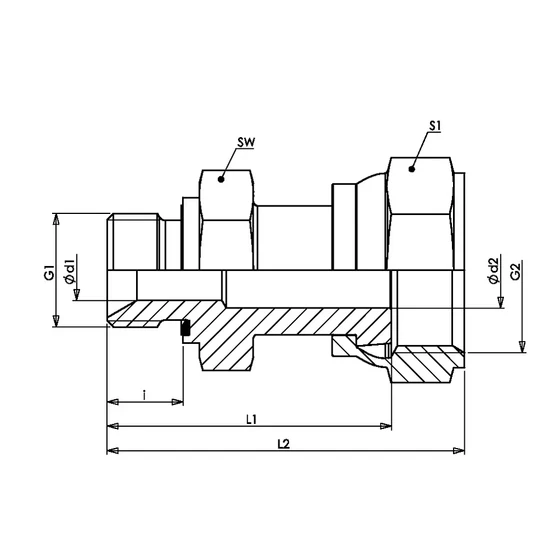

S1 (mm) 22
SW (mm) 27
Standard ISO 8434-3, ISO 1179-2
Structural form Straight Screw-in Insert - EGE
Sealing 1 E-form
Sealing 2 60° external cone
Sealing 3 Flat sealing
Operating pressure (bar) 420
Main category Fittings
SubCategory Swivel nut male stud coupling - EGE
Manufacturer Nincs
Manufacturer article number: GEHRED08AJF06
Model: HQCOEG06R080
Availability: Available to order
Manufacturer: Nem besorolt
