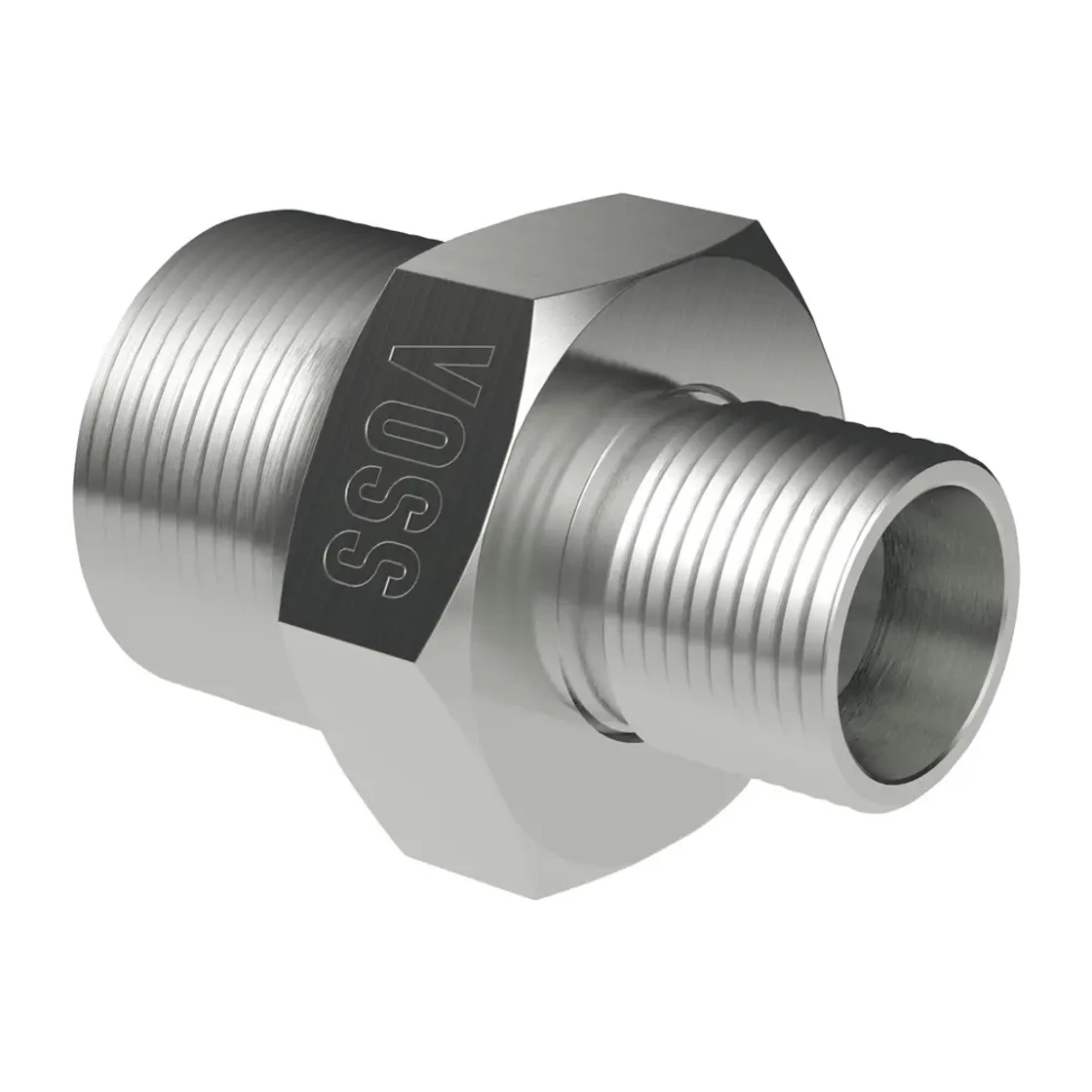

Tube Coupling - GR 20/16-S
13.7748 € + VAT
Qty:pcs
Add to Cart

Tube Coupling - GR 20/16-S

13.7748 € + VAT
Qty:pcs
Add to Cart
Material Steel
Connection 1 Metric male thread
Connection 2 Metric male thread
Connection G1 (mm) M30x2
Connection G2 (mm) M24x1,5
Connector sub-type Metrikus menet - nehéz kivitel (GR-S)
Connector type Egyenes szűkítő - GR
Ø d1 (mm) 20
Ø d2 (mm) 16
dy (mm) 12
Surface Galvanic coating
l2 (mm) 23
Design S
lg (mm) 42
SW1 (mm) 32
Standard DIN 2353/ISO 8434-1
Structural form Straight Reducer - GR
Extent Swivel nut, without cutting ring
Sealing 1 24° internal cone
Sealing 2 24° internal cone
Operating pressure (bar) 420
Manufacturer article number: 112812007
Model: HQCGR20S16S0
Availability: 5 pcs in stock
Manufacturer: Nem besorolt
