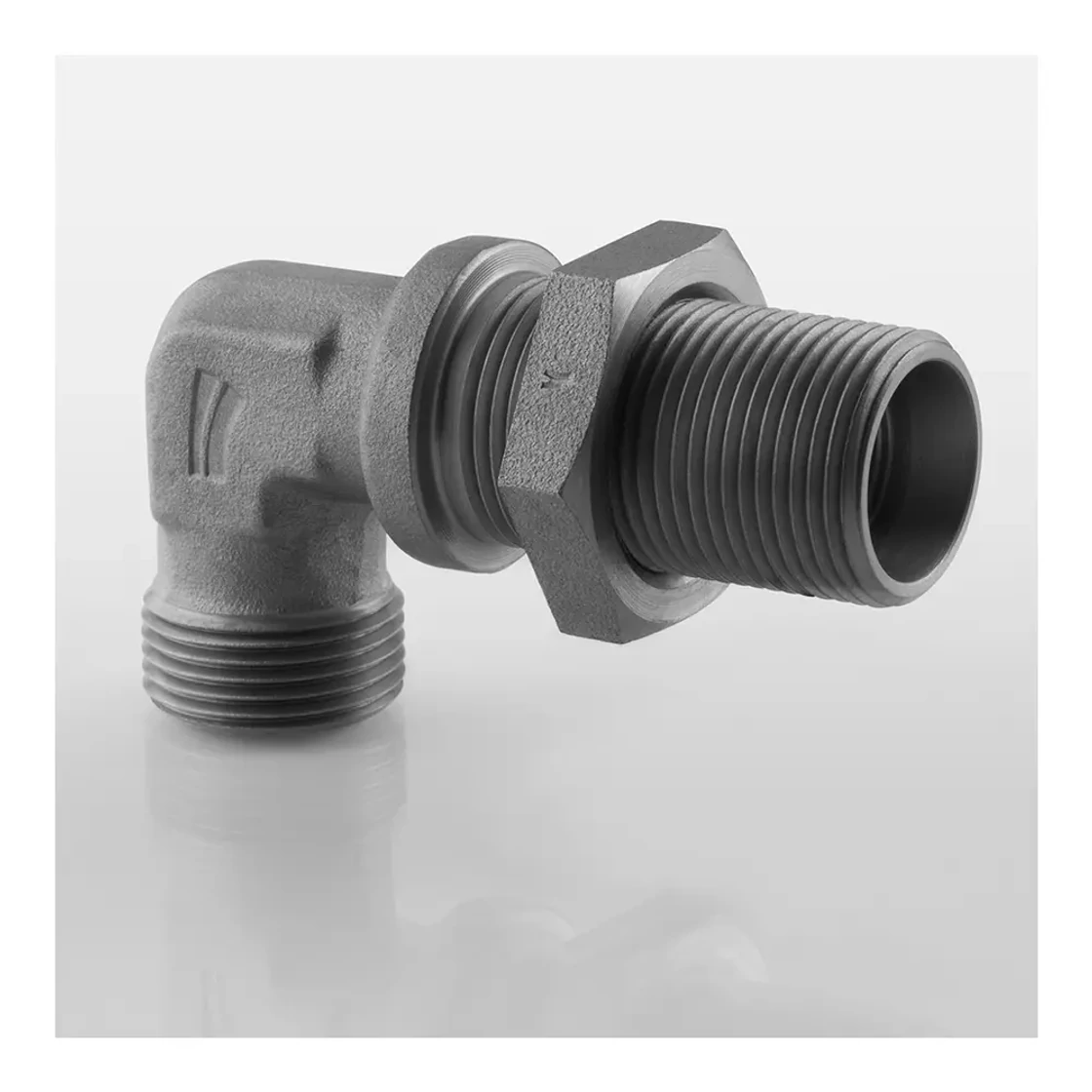

Tube Coupling - WSV 08-L
7.6705 € + VAT
Qty:pcs
Add to Cart

Tube Coupling - WSV 08-L

7.6705 € + VAT
Qty:pcs
Add to Cart

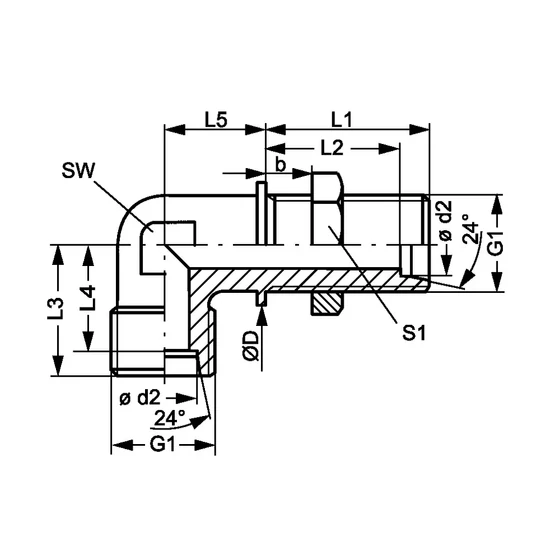

Material Steel
B (mm) 16
Connection 1 Metric male thread
Connection 2 Metric male thread
Connection G1 - G2 (mm) M 14 x 1.5
Connector sub-type Metrikus menet - könnyű kivitel (WSV-L)
Connector type Falazatátvezető könyök - WSV
Ø D (mm) 19
Surface Galvanic coating
Design L
L1 (mm) 34
L2 (mm) 27
L3 (mm) 21
L4 (mm) 14
S1 (mm) 19
SW (mm) 12
Standard DIN 2353/ISO 8434-1
Structural form Bulkhead Elbow Fitting - WSV
Extent Swivel nut, without cutting ring
Sealing 1 24° internal cone
Sealing 2 24° internal cone
Operating pressure (bar) 315
Main category Csatlakozók
SubCategory Csavarzatok
Manufacturer Nincs
Manufacturer article number: SWNW06HL
Model: HQCWS08L00
Availability: 14 pcs in stock
Manufacturer: Nem besorolt
