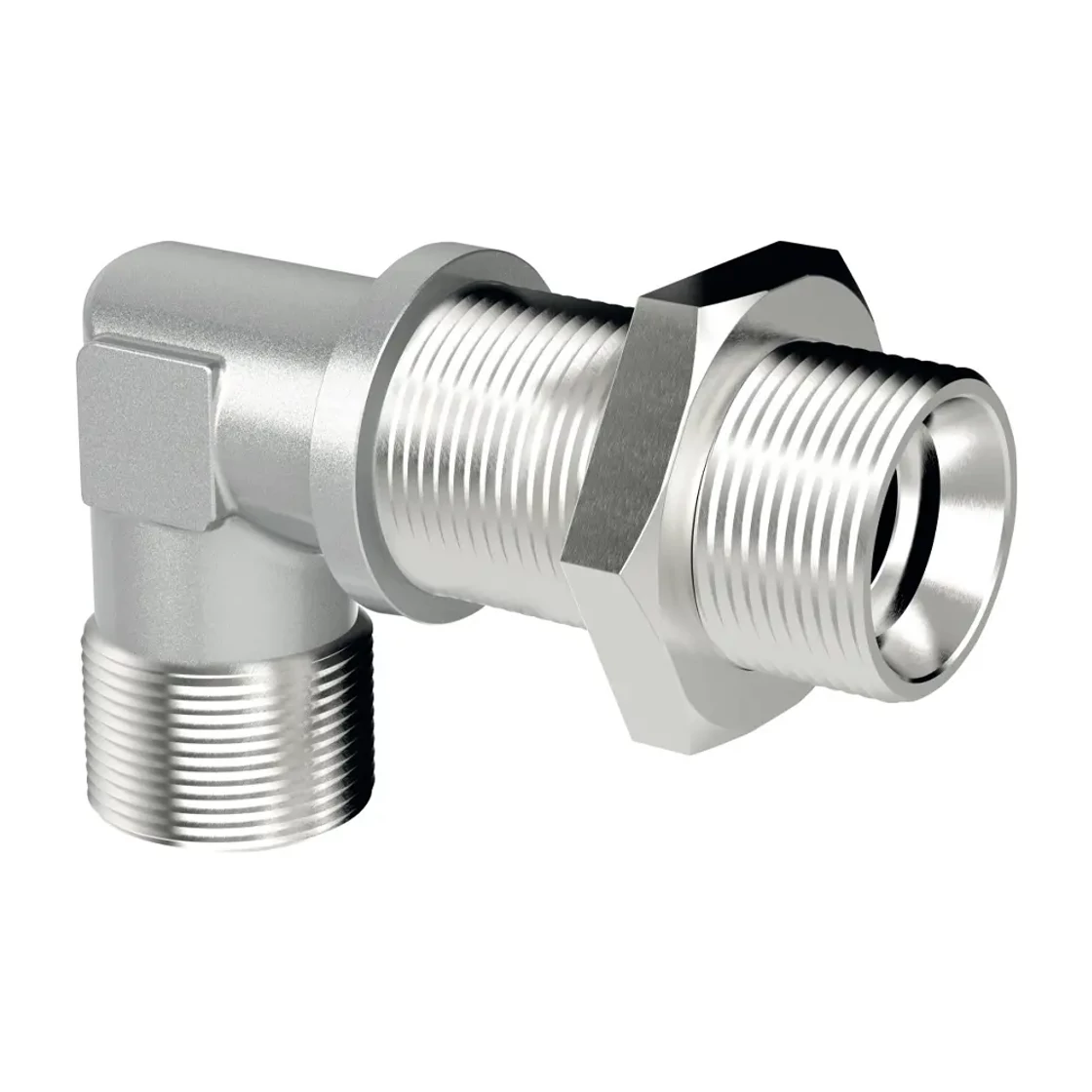

Tube Coupling - WSV 14-S
16.2793 € + VAT
Qty:pcs
Add to Cart

Tube Coupling - WSV 14-S

16.2793 € + VAT
Qty:pcs
Add to Cart
Material Steel
Connection 1 Metric male thread
Connection 2 Metric male thread

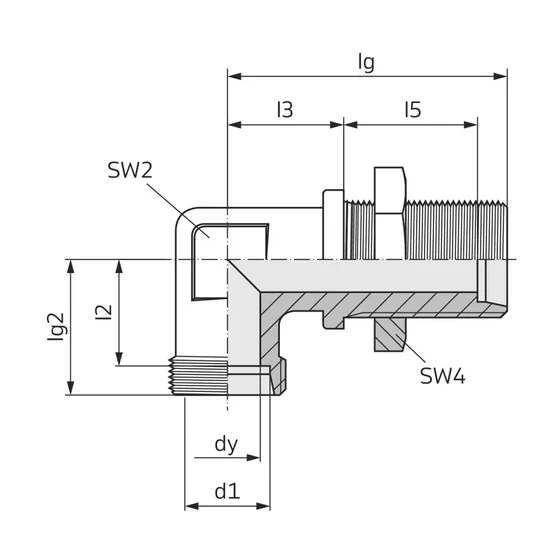

Connection G1 - G2 (mm) M22x1,5
Connector sub-type Metrikus menet - nehéz kivitel (WSV-S)
Connector type Falazatátvezető könyök - WSV
Ø d1 (mm) 14
dy (mm) 10
Surface Galvanic coating
l2 (mm) 22
Design S
l3 (mm) 23
l5 (mm) 32
lg2 (mm) 30
lg (mm) 63
SW2 (mm) 19
SW4 (mm) 30
Standard DIN 2353/ISO 8434-1
Structural form Metrikus menet - nehéz kivitel (WSV-S)
Extent Swivel nut, without cutting ring
Sealing 1 24° internal cone
Sealing 2 24° internal cone
Operating pressure (bar) 630
Manufacturer article number: 138702007
Model: HQCWS14S00
Availability: 2 pcs in stock
Manufacturer: Nem besorolt
