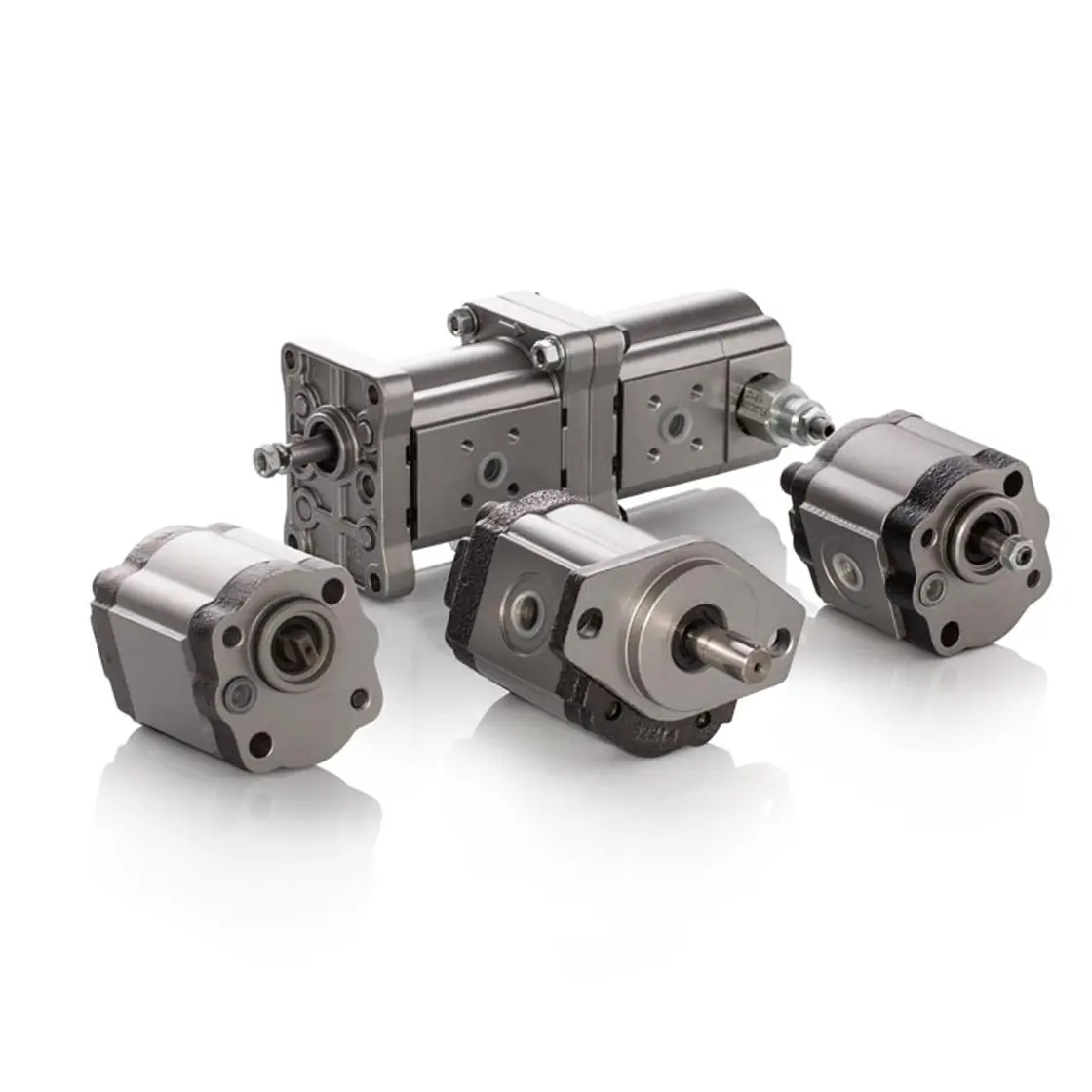

Gear pump - 01ZA088C400DN

Gear pump - 01ZA088C400DN

Subtype Single-circuit
Material aluminum housing - cast iron bottom and flange
Material alumínium ház - önöttvas fenék és flansni
Peak pressure 180
Connections G1/2"-G3/8"
Bolt mounting 52,4×71,9
Mounting size Gr.1 - egyes építés
Rotational speed at working pressure (min-max) 200-3000
Direction of rotation jobb / órajárás szerinti
Mounting flange standard EU standard - Ø25,4 f8
Maximum speed without load 4000
Maximum peak pressure 200
Displacement (cm³/rev) 8.82
Shaft and key size kúpos 1:8 - 9,7 - 2,4
Seal NBR
Maximum pressure 170 bar
Manufacturer article number: 01ZA088C400TDN
Model: HPGS1ZA088C400DN
Availability: 4 pcs in stock
Manufacturer: Ronzio
