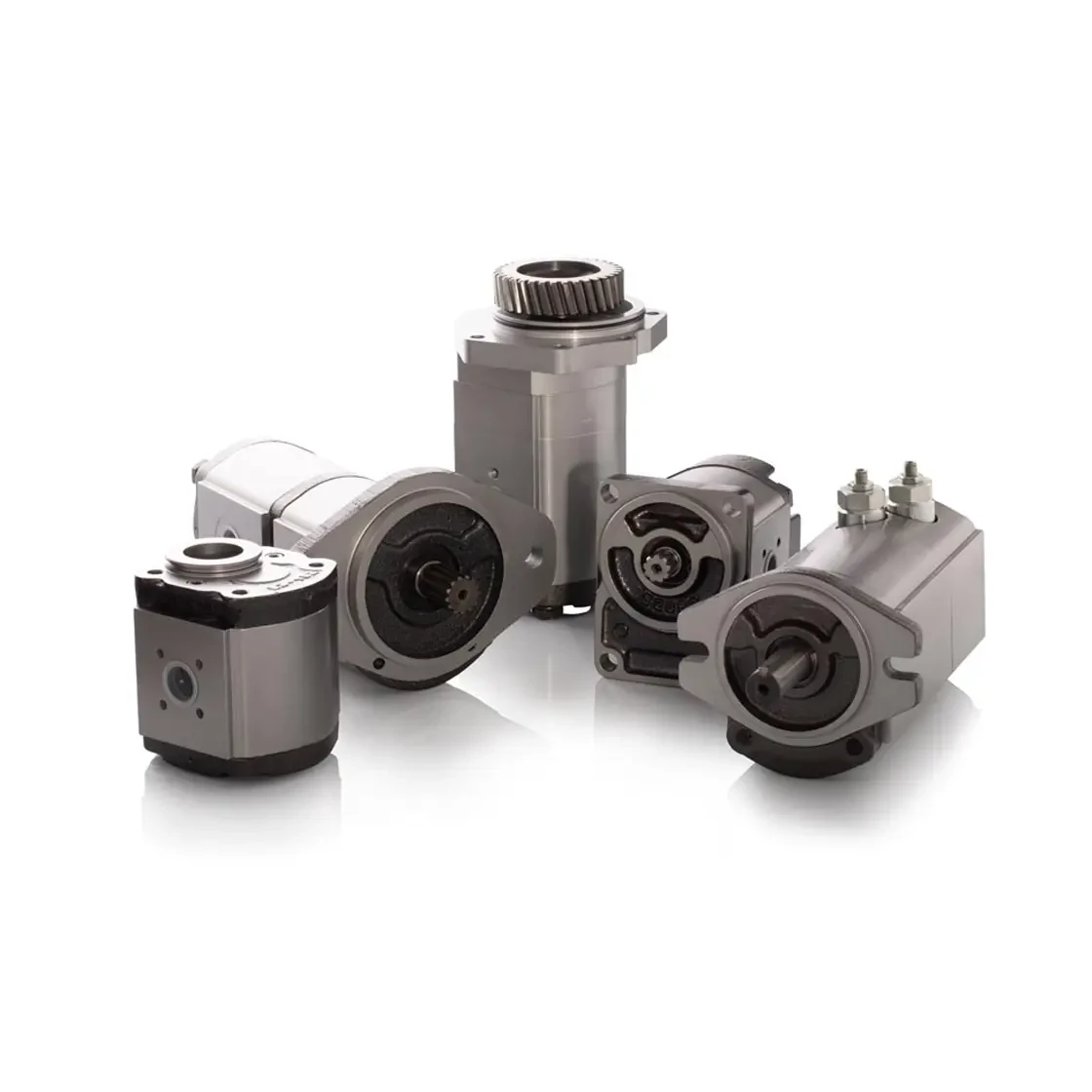

Gear pump - 03ZAG30C048DN

Gear pump - 03ZAG30C048DN

Subtype Single-circuit
Material aluminum housing - cast iron bottom and flange
Material alumínium ház - önöttvas fenék és flansni
Connections EU standard - Ø51 - Ø40
Bolt mounting 98×128
Mounting size Gr.3 - hármas építés
Rotational speed at working pressure (min-max) 350
Direction of rotation jobb / órajárás szerinti
Mounting flange standard EU standard - Ø50,8 f8
Maximum speed without load 3000
Maximum peak pressure 310
Displacement (cm³/rev) 29.9
Shaft and key size kúpos 1:8 - 22,2 - 4
Seal NBR
Maximum pressure 280 bar
Manufacturer article number: 03ZAG30C048TDN
Model: HPGS3ZAG30C048DN
Availability: 10 pcs in stock
Manufacturer: Ronzio
