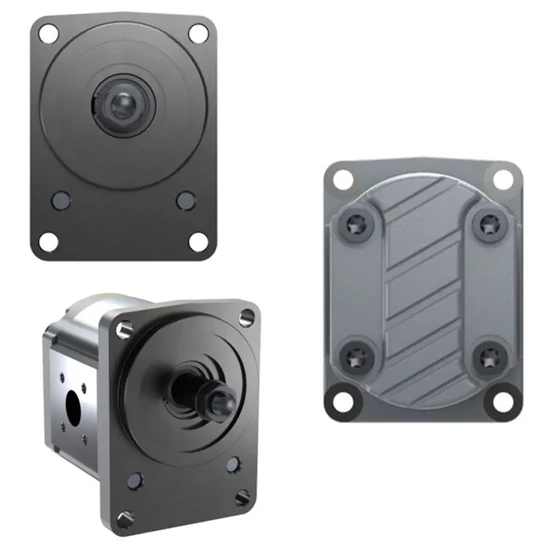

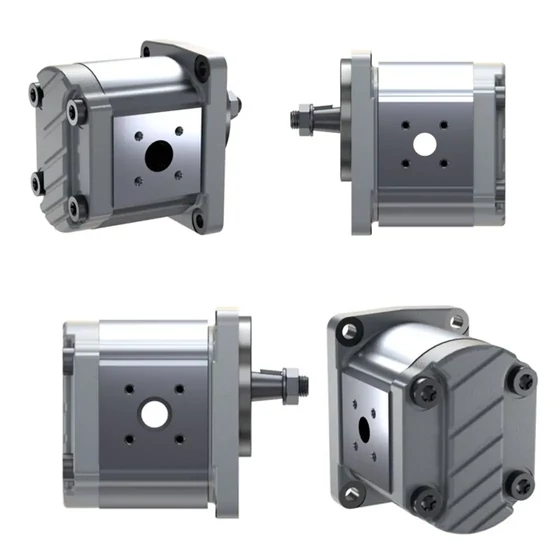

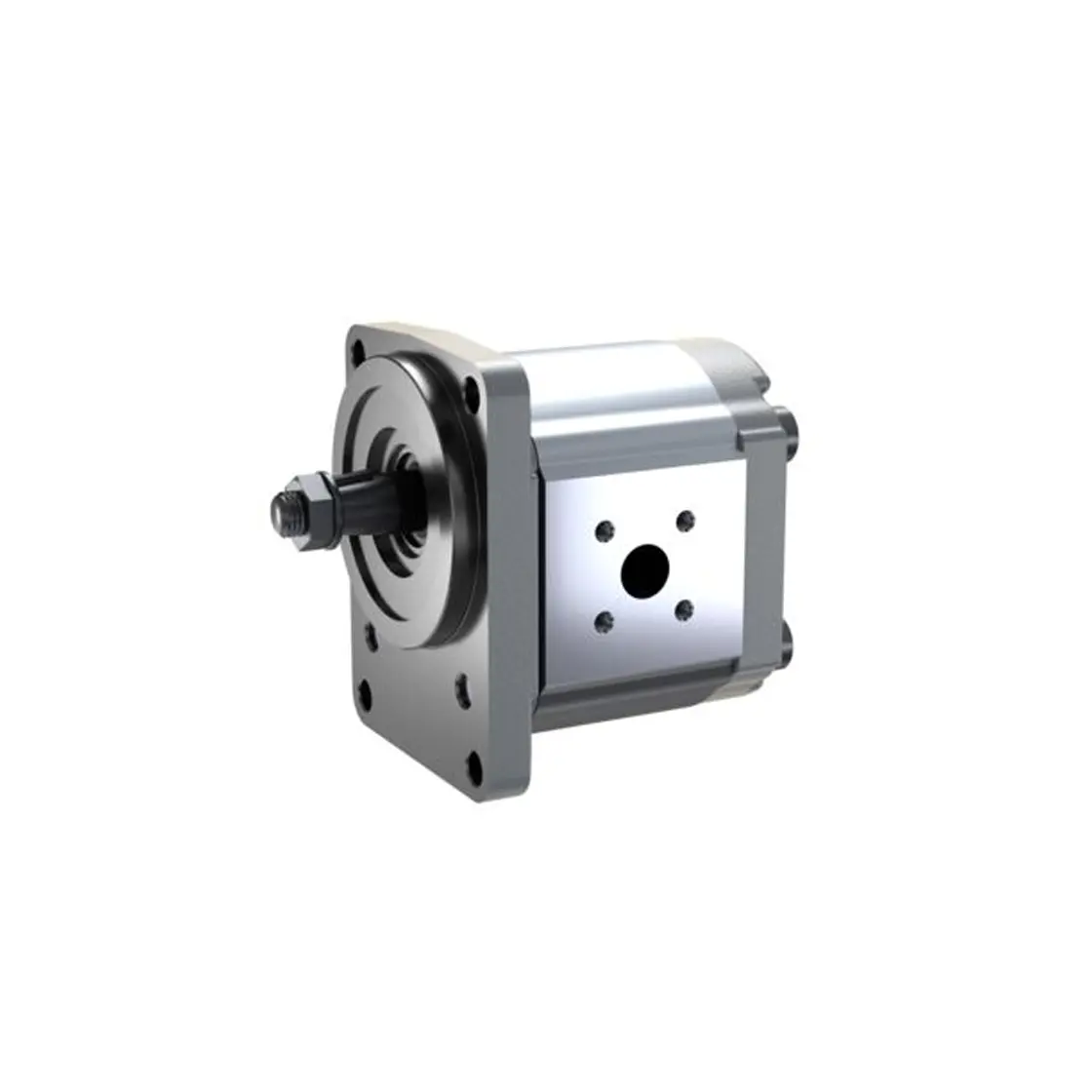

Gearpump - AZPJ-22-014RCB20MB

External Gear Pump: Quiet, High-Performance, and Durable

This external gear pump is engineered to efficiently convert mechanical energy (torque and rotational speed) into hydraulic energy (flow and pressure). Its design focuses on achieving high efficiencies and minimizing heat loss through pressure-dependent gap sealing and high-precision manufacturing technology.

Key Features

• Consistent high quality from large-volume production.
• Long service life.
• Optimized pressure pulsation, which reduces noise emissions and oscillations in the system.
• Pleasant pitch due to its low operating frequency.
• Slide bearings designed for high loads.
• Corrosion-resistant version with a lightweight aluminum housing and standard rear cover.

Technical Specifications

• Product Type: External Gear Unit (Pump function)
• Model: J Series (4…28 cm3/rev)
• Series: Bearing diameter 20 mm
• Nominal Size: 14 cm3/rev
• Max. Flow: 42.0 l/min
• Max. Intermittent Pressure: 280 bar
• Maximum Rotational Speed: 3000 rpm
• Direction of Rotation: Clockwise
• Drive Shaft: Conical 1:5
• Front Cover: Rectangular flange ∅ 80 mm
• Port Connection: Square flange to fitting ISO 8434-1
• Housing Material: Aluminum
• Noise Level: Very low noise at low frequency
• Sealing Material: NBR
• Weight: 4.1 kg
• Version: Corrosion resistant, pinned
