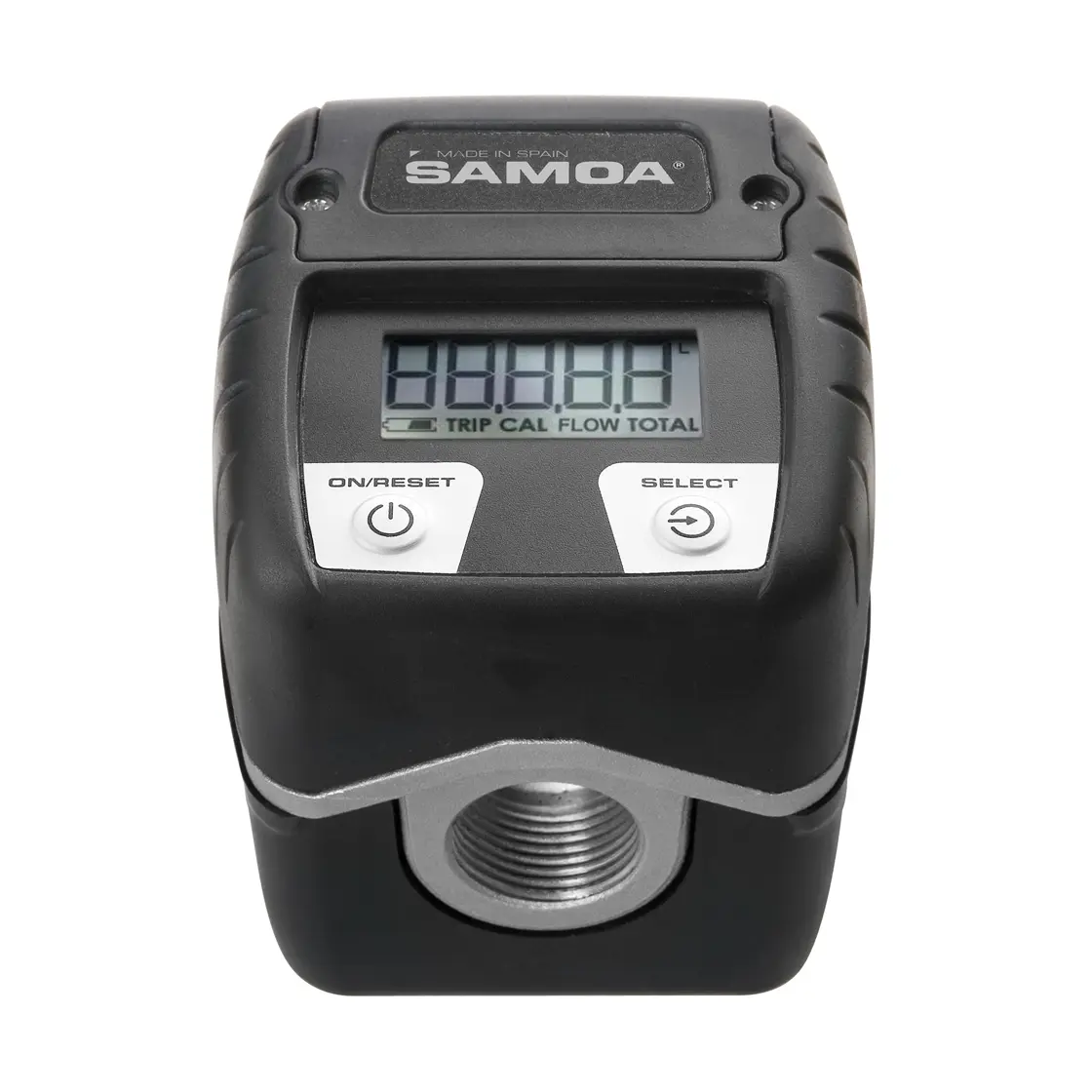

C80 Series – High-Volume In-Line Digital Meter (1″, 82 L/min, Aluminum)

The C80 series oval gear meter is engineered for oil and diesel measurement in in-line installations. It can be wall-mounted in the fluid line or at the pump outlet for precise flow monitoring.

Key Features

• Measuring Principle: Oval gear

• Housing Material: Anodized aluminum

• Flow Capacity: 82 L/min

• Electronic Register:

  • Multifunction display: delivery volume, permanent & resettable totalizers

  • Selectable units: liters, quarts, pints, US gallons

  • Real-time flow rate (e.g., L/min)

• Power Supply: 2× AAA alkaline batteries

• Mechanical Protection: Shockproof, TPE molded shroud

• Magnetic Isolation: Wetted magnets drive the register, isolating electronics from fluid

Applications

• Fuel dispensing systems

• Mobile & stationary diesel/oil service units

• Industrial lubrication supply systems

• Pump outlet flow measurement

Technical Specifications
