Description
Product Details – English
| Elastomer Material | Standard (-20°C to 100°C) nitrile – Mix 25 bladder and rings |
|---|---|
| Product Series | EHV |
| Certificates | PED 2014/68/EU |
| Body Material | Carbon steel shell and fluid port |

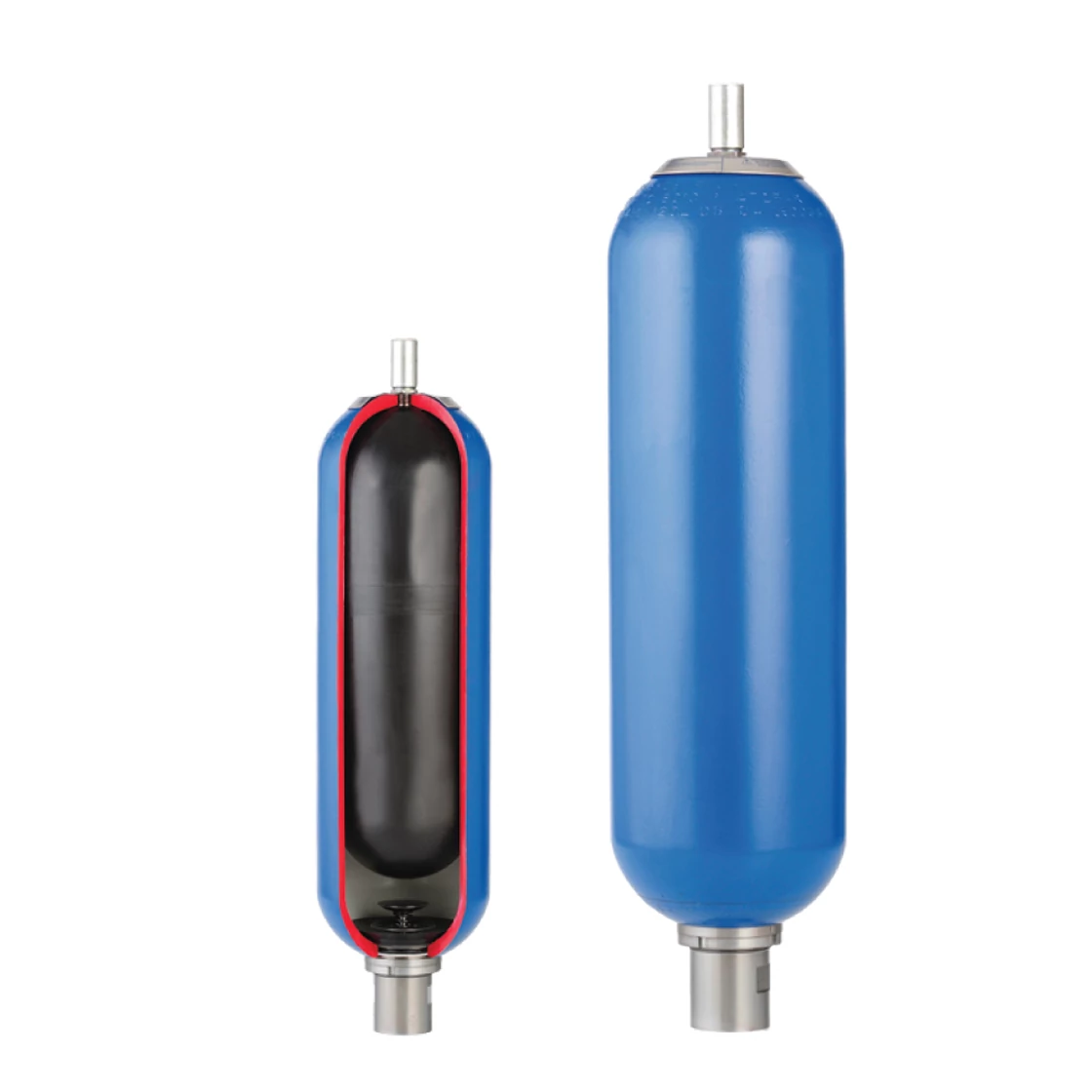

| Product Type | EHV 4-350/90-A25DC-200 |
| Gas Volume | 3.7 L |
| Body Material | Carbon steel – shell and fluid port |
| Fluid Port Connection | G1 1/4" – maximum flow rate: 450 L/min |
| For Fluid Type | Group 2 |
| Gas Valve Type | 7/8" 14 UNF integrated – Model C |
| Minimum Operating Temperature | -20 °C |
| Maximum Flow Rate | 450 L/min |
| Maximum Operating Temperature | 80 °C |
| Weight | 15 kg |
| Height | 434 mm |
| Diameter | 170 mm |
| Industry | Industrial, Energy, Marine, Mobile |
| Accessories Included | Repair kits, clamps, brackets, lifting eyes, mounting frames |
| Nominal Volume | 4 L |
| Maximum Operating Pressure | 350 bar (PED) |
