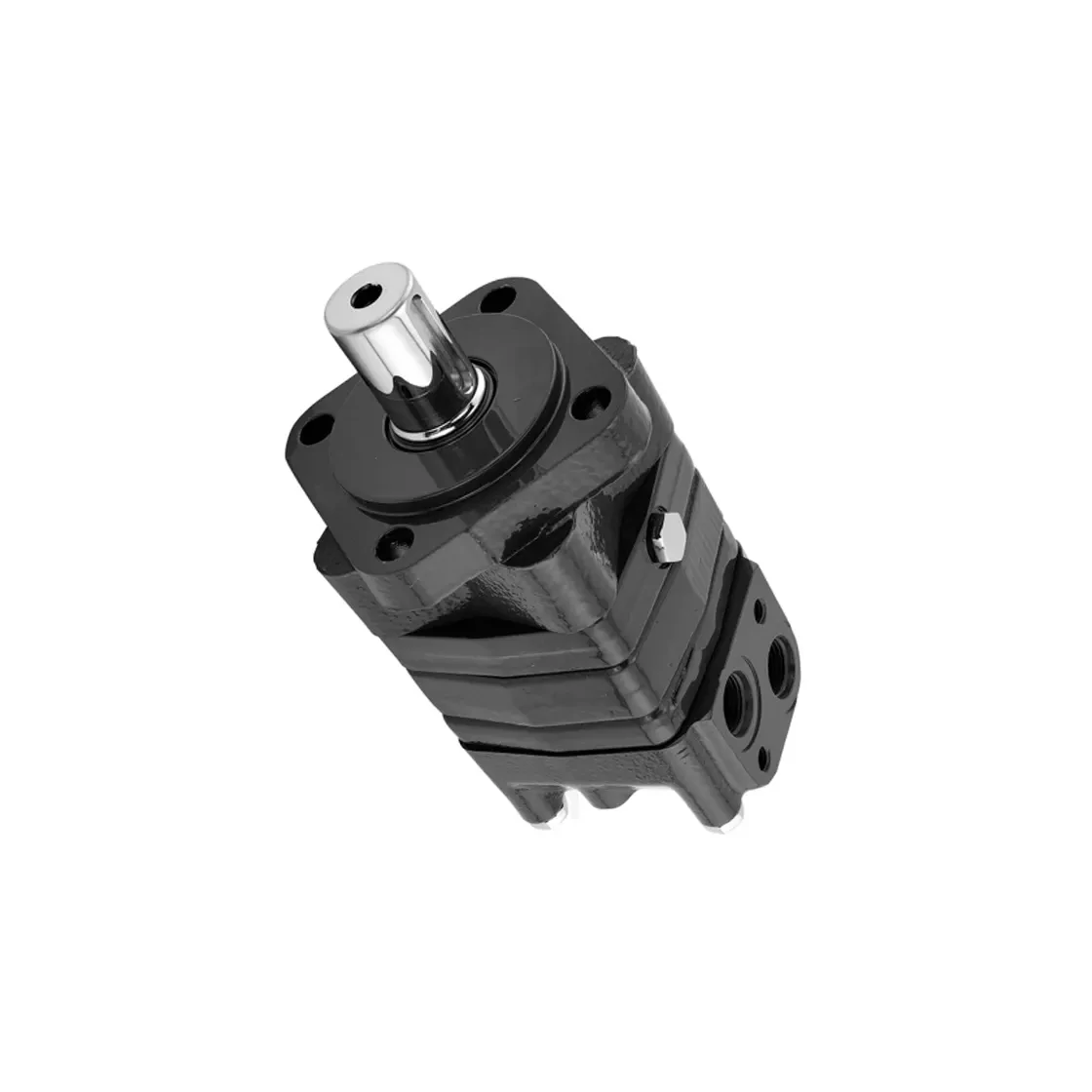

Hydaulic Motor - OMS 315

General Specifications

• Displacement Volume: 314.9 cm³

• Shaft Diameter: 32 mm

Performance

• Max. Speed: 240 rpm

• Max. Torque: 825 Nm

• Max. Power: 15.0 kW

Pressure & Flow

• Pressure Differential (Δp): 200 bar

• Inlet Pressure: 230 bar

• Max. Flow Rate: 75 l/min

Configuration

• Motor Design: with check valves

Ports & Connections

• Port A–B (BSP): 1/2″

• Residue Oil Port: G 1/4″

• Drive Shaft Connection: G 1/2″

Dimensions

• Overall Length (L): 208 mm

• Face-to-Drive-End Length (L₁): 54.8 mm

Manufacturer’s Part Number

• Danfoss P/N: 151F0506
