Description

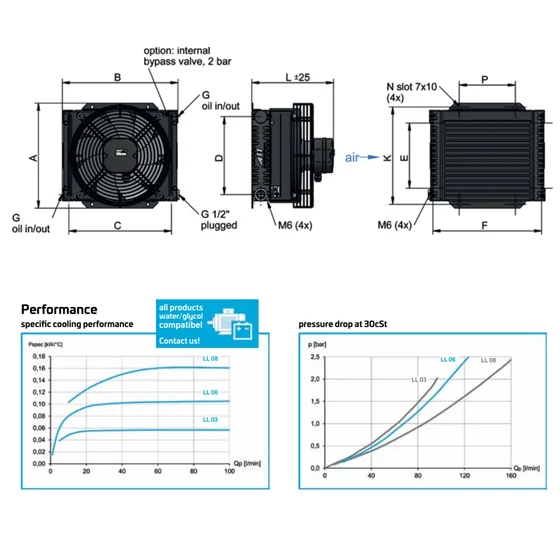

| Part number | description | A [mm] | B [mm] | C [mm] | D [mm] | E [mm] | F [mm] | G | K [mm] | L [mm] | N | P |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

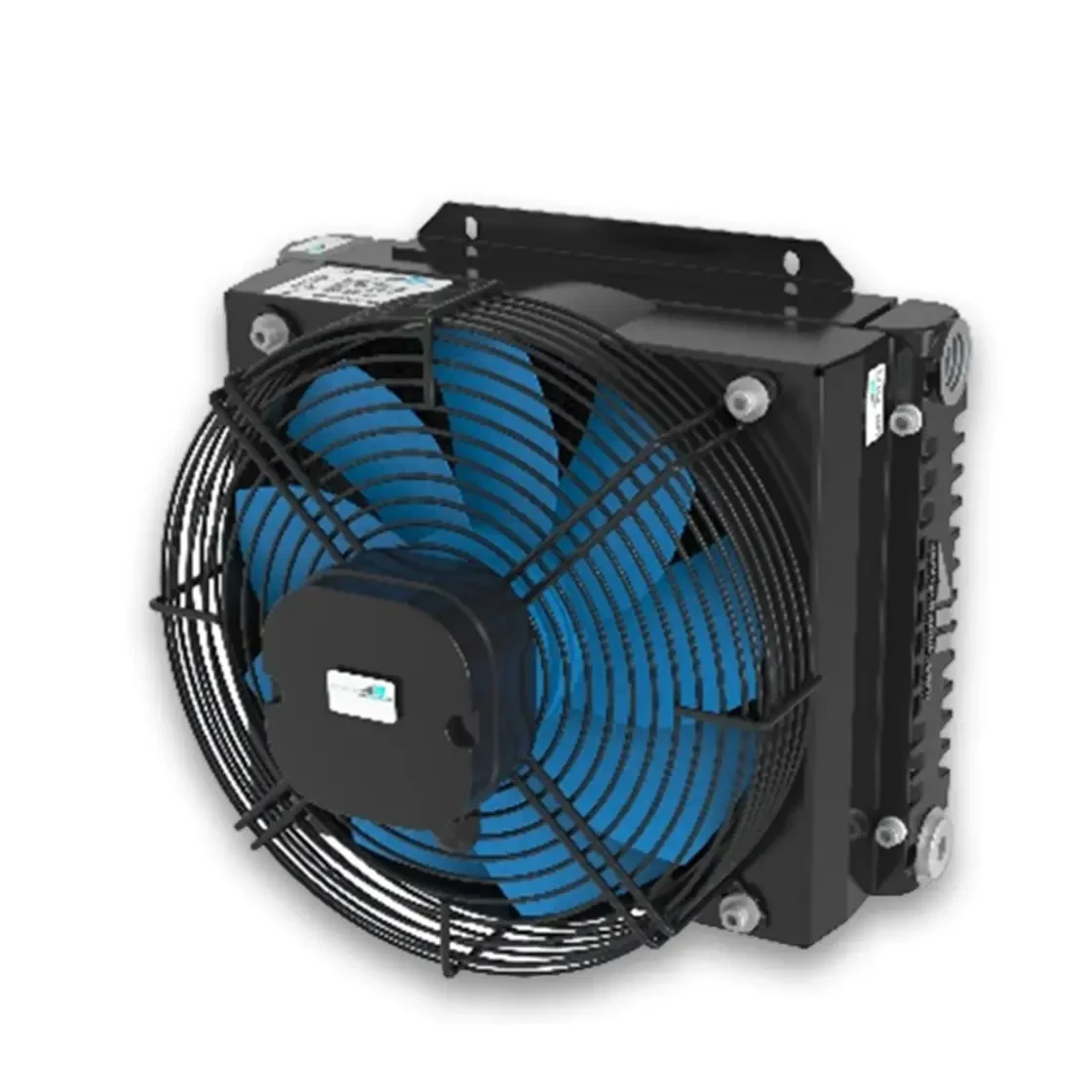

| HEALL06HP230 | LL 06 AC compact | 290 | 323 | 284 | 215 | 180 | 301 | G 3/4" | 269 | 226 | 7x10 | 155 |
| Part number | description | Power [kW] | Current [A] | protection | Rotation speed [rpm] | Airflow [m³/s] | Noise level [dB] | Weight [kg] | Optional internal bypass (2 bar) |
|---|---|---|---|---|---|---|---|---|---|
| HEALL06HP230 | LL 06 AC compact | 0.10 | 0.45 | IP 44 | 2480 | 0.32 | 66 | 7.9 |
Radiator
- Material: Aluminum
- Operating temperature range: -20°C to +100°C (oil temperature)
- Air cooling fin: corrugated
- Maximum operating pressure: 26 bar (static)
