Description

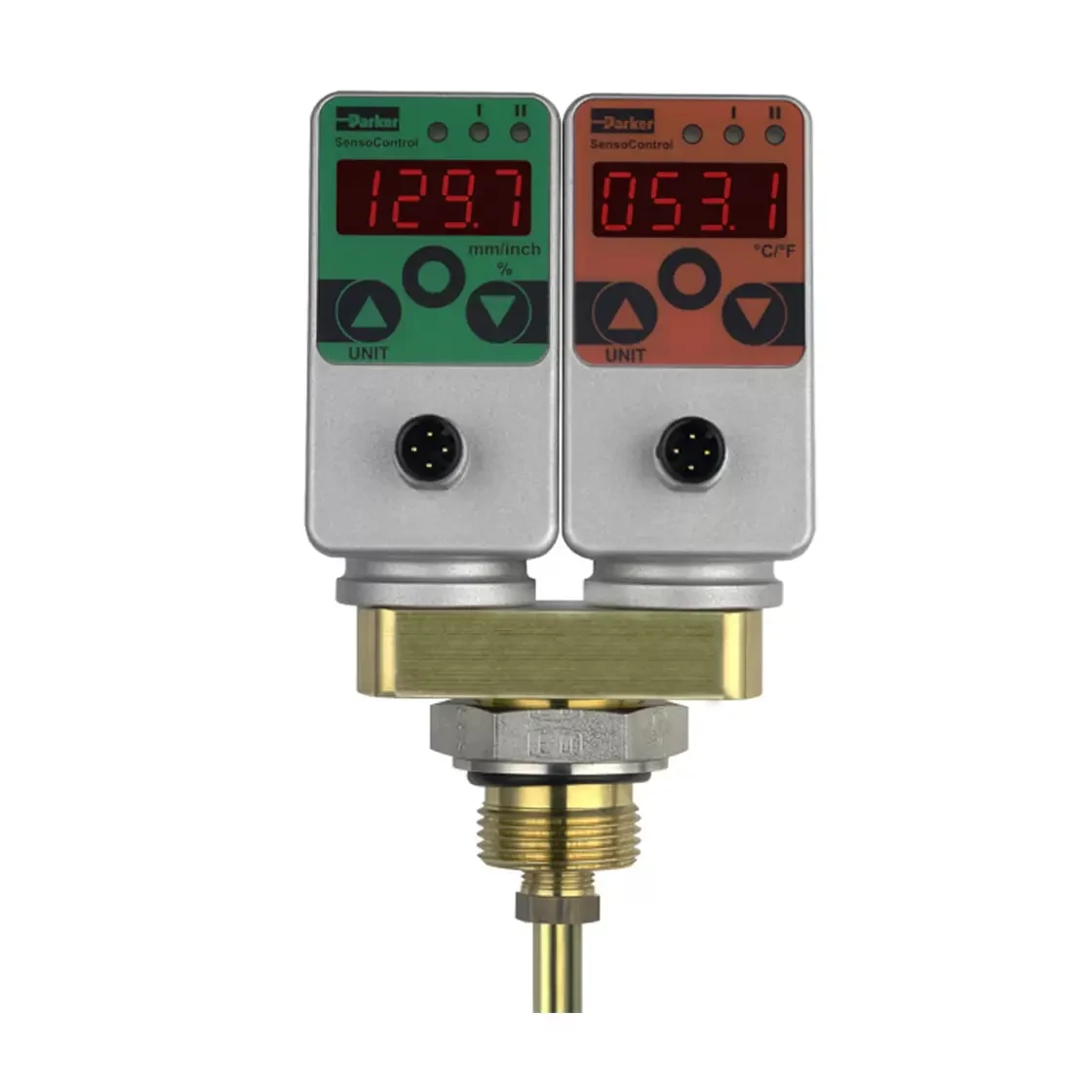

LevelTempController – Unified Level & Temperature Control on One Platform
The LevelTempController integrates level and temperature sensing, display, switching outputs, and analogue signals in one device. Ideal for continuous tank monitoring with fine 5 mm resolution and percentage-based readout.
Key Features
-
Level & Temperature Display (thermometer / inspection glass)
-
Switching & Analogue Outputs
-
Configurable Level & Temperature Setpoints
Level Functionality
-
Continuous, high-resolution (≤ 5 mm) float position tracking
-
Display in mm, inch, or % (tank-shape independent)
-
Offset input for true-bottom-level indication
-
Menu-driven setpoint adjustment after installation
-
No sticking mechanical contacts, enhanced reliability
Temperature Functionality
-
Continuous temperature measurement & display
-
Programmable switching points (window, hysteresis, NO/NC)
-
Analogue output (4–20 mA or 0–10 V)
Reliable & Secure
-
Password-protected parameters against unauthorized changes
-
Robust electronics and proven measuring system
Universal Application
-
Replaces multiple mechanical switches with a single controller
-
Optional analogue outputs for PLC integration
-
Window & hysteresis functions, NC/NO configuration
Benefits
-
Proven industrial-grade measuring system
-
Single installation point (one hole only)
-
No surge pipe required
-
Consolidates several switches into one
Markets
-
Industrial automation and process control
Applications
-
Level Monitoring: leakage detection, overfill prevention
-
Temperature Control: coolers, heaters, alarms, shutdowns
