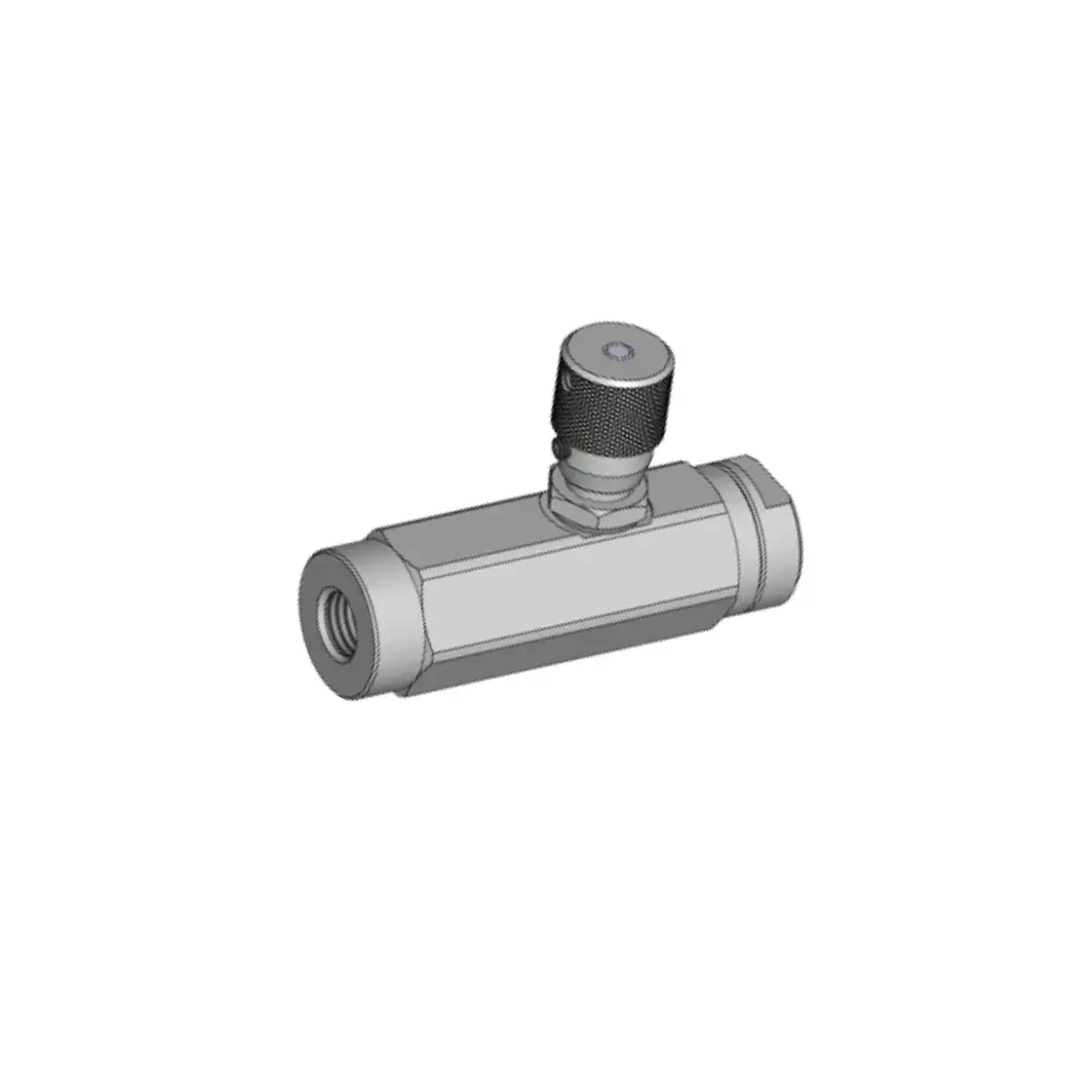

Picture 1/3 -2 way pressure compensated flow control valve - FCVC-1-90-G1/2

Picture 2/3 -2 way pressure compensated flow control valve - FCVC-1-90-G1/2

Picture 3/3 -2 way pressure compensated flow control valve - FCVC-1-90-G1/2

2 way pressure compensated flow control valve - FCVC-1-90-G1/2

Payment and shipping information

Our services

Contact

2 way pressure compensated flow control valve - FCVC-1-90-G1/2

Subtype	Inline / Pipe-mounted
Connection	1/2"
Maximum flow rate	40 l / min
Type of Actuation	Tekerőgomb
Type of Operation	Mechanikus
Maximum pressure	250 bar
Type	2-way flow regulator
Manufacturer article number:	22-C-01-B01-3-0-04-0
Model:	HVLKCG08GC
Availability:	5 pcs in stock
Manufacturer:	--
Fluid viscosity: ISO 3448 Filtration: ISO 4406 Fluid temperature: -20°C to +90°C Ambient temperature: -20°C to +50°C External surfaces: Galvanized
