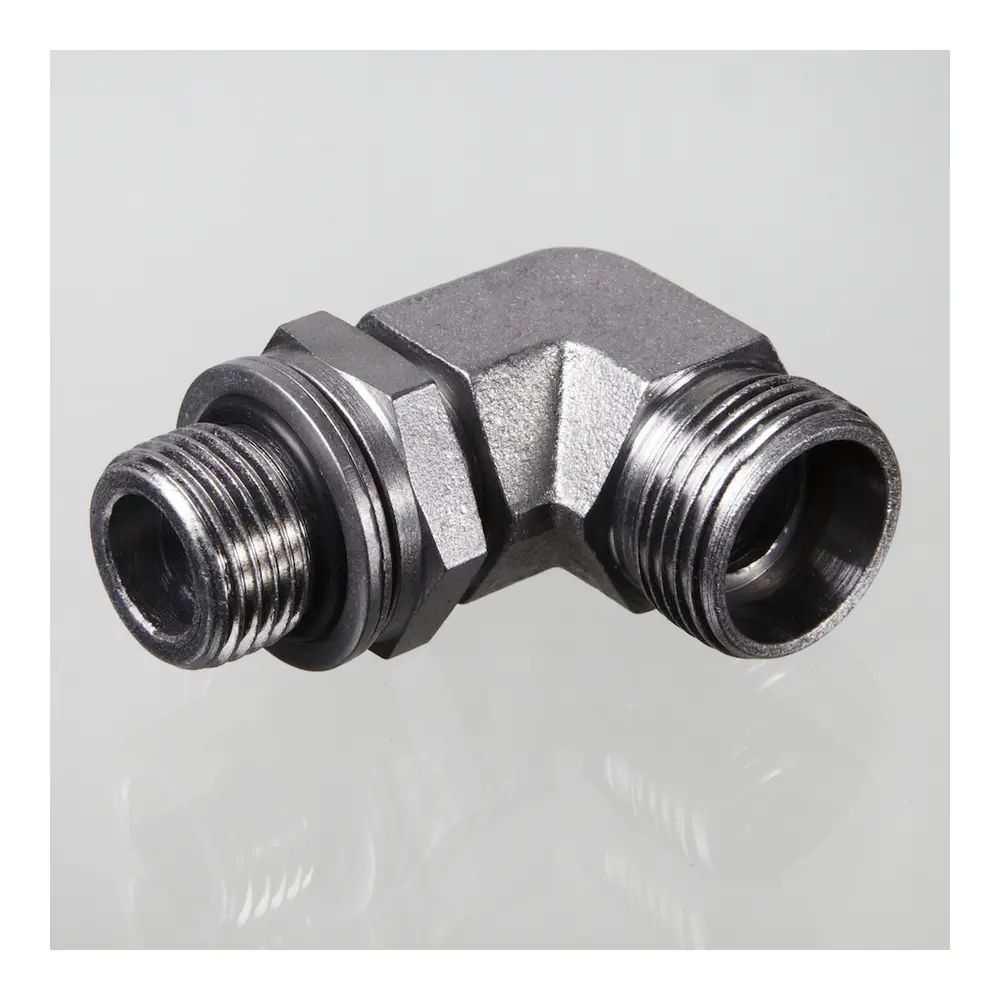

Tube Coupling - WEE 12-LR
16.8751 € + VAT
Qty:pcs
Add to Cart

Tube Coupling - WEE 12-LR

16.8751 € + VAT
Qty:pcs
Add to Cart
Material Steel
Connection 1 BSPP external thread
Connection 2 Metric external thread

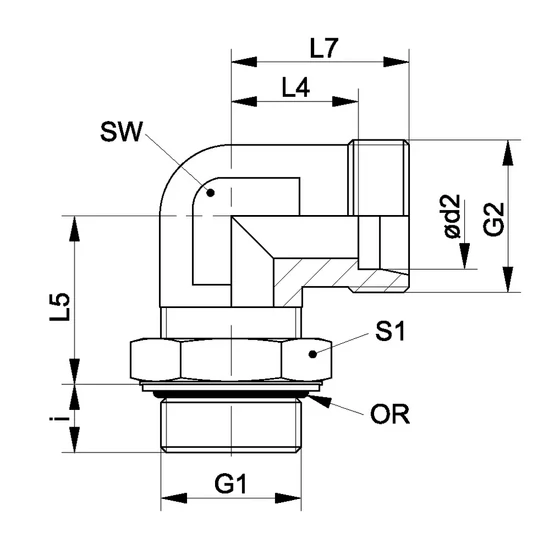

Connection G1 (mm) G 3/8" -19
Connection G2 (mm) M 18 x 1.5
Connector sub-type Metrikus/BSP menet - könnyű kivitel (WEE-L/R)
Connector type Könyök beállítható - WEE
Ø d2 (mm) 12
Surface Galvanic coating
i (mm) 9
Design L
L4 (mm) 19
L5 (mm) 28
L7 (mm) 26
S1 (mm) 22
SW (mm) 19
Standard ISO 8434-1, ISO 1179-3
Structural form Adjustable Elbow Fitting - WEE, WH
Extent Nut, without cutting ring
Sealing 1 O-ring
Sealing 2 24° internal cone
Operating pressure (bar) 250
Main category Csatlakozók
SubCategory Csavarzatok
Manufacturer Nincs
Manufacturer article number: EWORNW10HLED
Model: HQCWEE12LR060
Availability: 2 pcs in stock
Manufacturer: Nem besorolt
