Tube Coupling - (WEE-Metr.) - JIC 3/4
12.2728 € + VAT
Qty:pcs
Add to Cart

Tube Coupling - (WEE-Metr.) - JIC 3/4" - M18×1,5

12.2728 € + VAT
Qty:pcs
Add to Cart

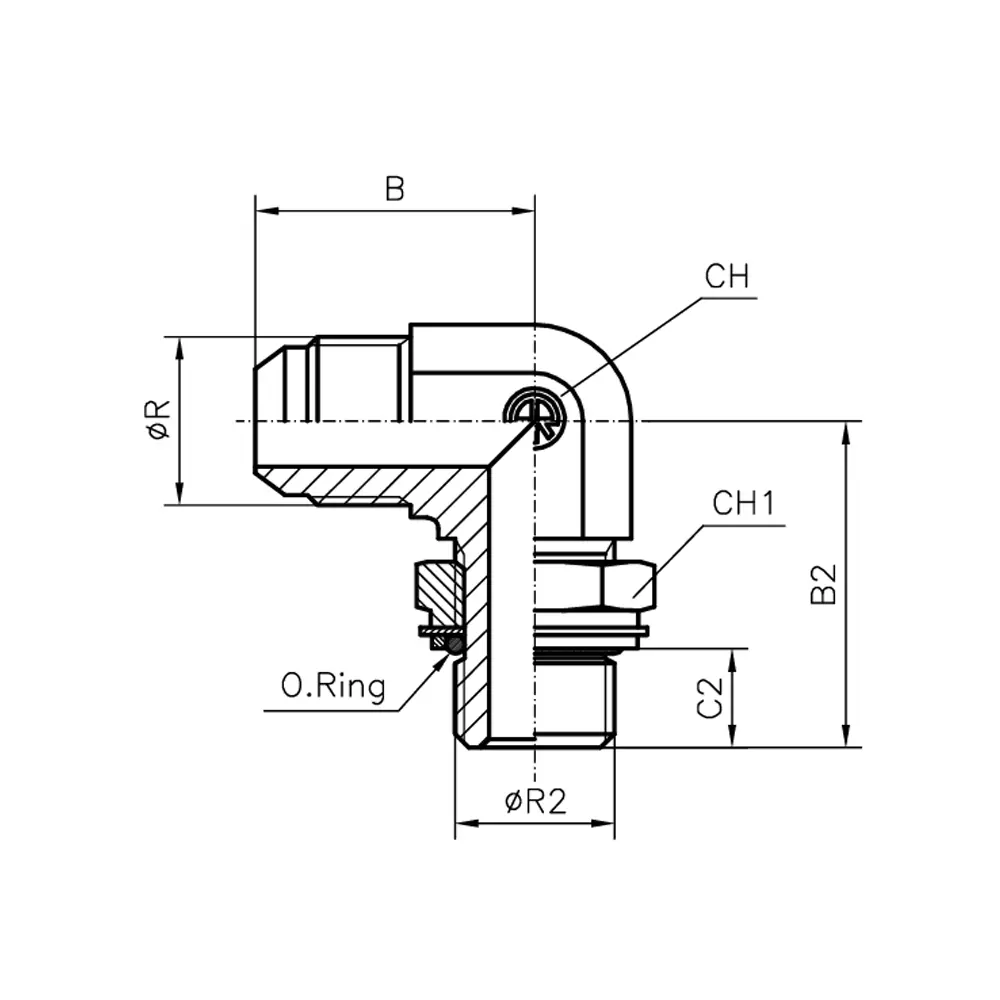

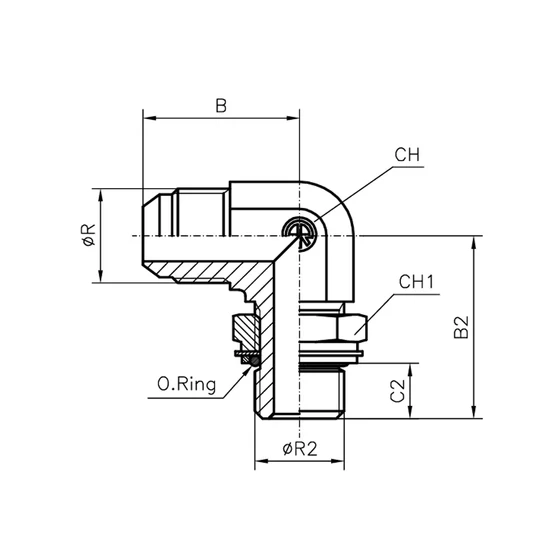

Material Steel
B2 (mm) 38
B (mm) 31.8
C2 (mm) 12.5
CH (mm) 19
CH1 (mm) 24
Connection 1 UNF external thread
Connection 2 BSPP external thread
Connection ØR (col) 3/4
Connection ØR2 (inch) 18x1,5
Connector sub-type UNF/metrikus menet - JIC kivitel (WEE-JIC/M)
Connector type Könyök beállítható - WEE
Pipe size (mm) 12
Pipe size (inch) 1/2
Surface Galvanic coating
Standard ISO 6149-3
Structural form Adjustable Elbow Fitting - WEE, WH
Sealing 1 37° external cone
Sealing 2 O-ring
Operating pressure (bar) 350
Main category Csatlakozók
SubCategory Csavarzatok
Manufacturer Nincs
Manufacturer article number: 00-ST070806
Model: HQCJWEE08M180
Availability: 2 pcs in stock
Manufacturer: Nem besorolt
