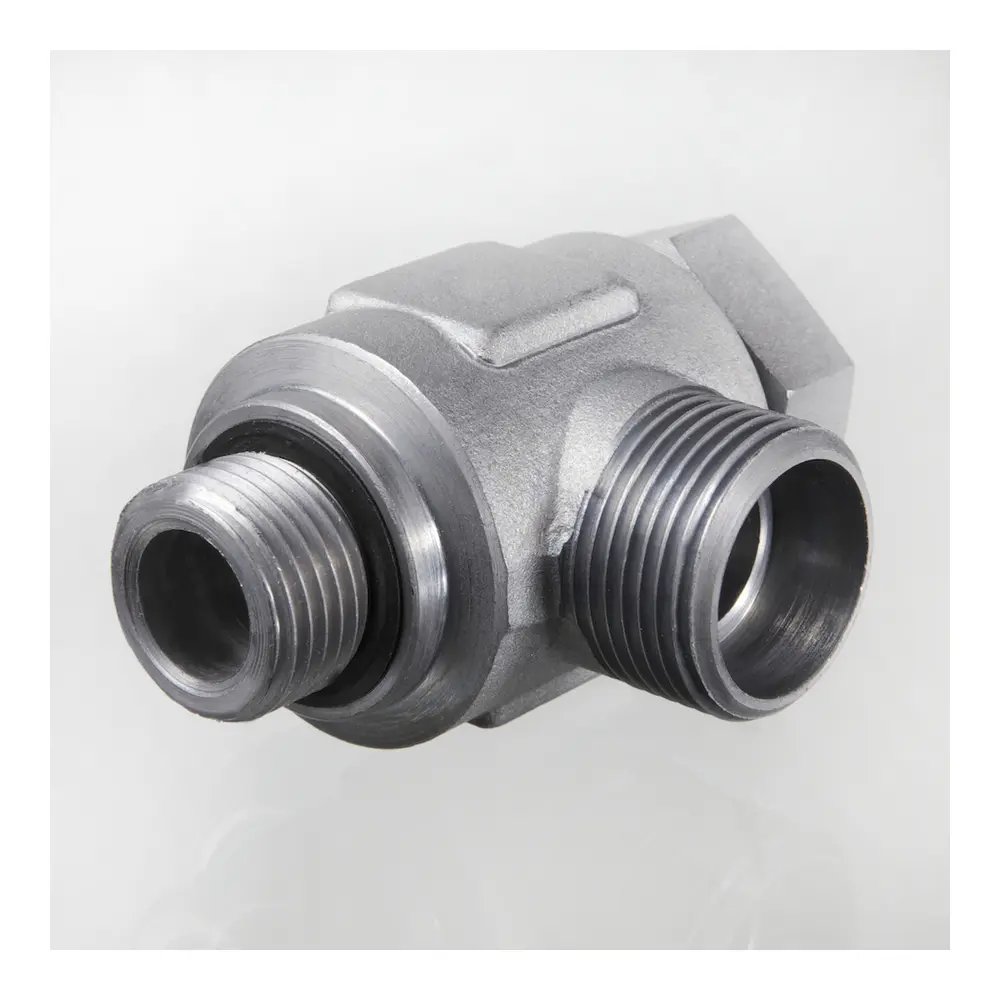

Tube Coupling - WH 08-LLR
10.2273 € + VAT
Qty:pcs
Notification

Tube Coupling - WH 08-LLR

10.2273 € + VAT
Qty:pcs
Notification
Material Steel
Connection 1 BSPP external thread
Connection 2 Metric external thread
Connection G1 (mm) G 1/8" -28
Connection G2 (mm) M12x1
Connector sub-type Metrikus/BSP menet - extra könnyű kivitel (WH-LL/R)
Connector type Könyök beállítható - WH

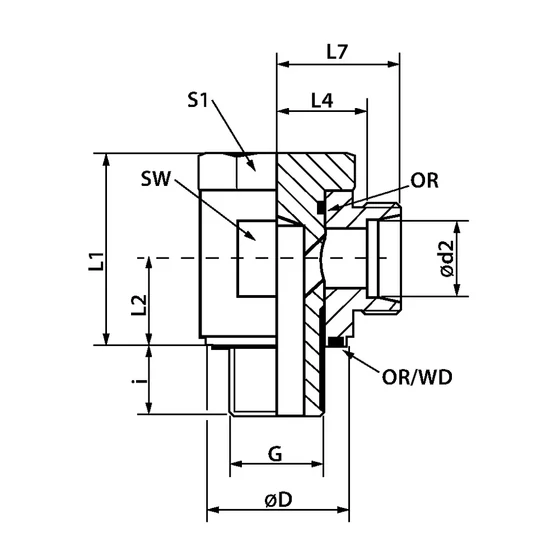

Ø d2 (mm) 8
Ø D (mm) 14.5
Surface Galvanic coating
i (mm) 8
Design LL
L1 (mm) 23.5
L2 (mm) 10.5
L4 (mm) 13.5
L7 (mm) 19
S1 (mm) 17
SW (mm) 17
Standard ISO 8434-1
Structural form Adjustable Elbow Fitting - WEE, WH
Extent Nut, without cutting ring
Sealing 1 E-form
Sealing 2 24° internal cone
Operating pressure (bar) 100
Main category Csatlakozók
SubCategory Csavarzatok
Manufacturer Nincs
Manufacturer article number: SDOR08LL
Model: HQCWH08LLR020
Availability: Available to order
Manufacturer: Nem besorolt
