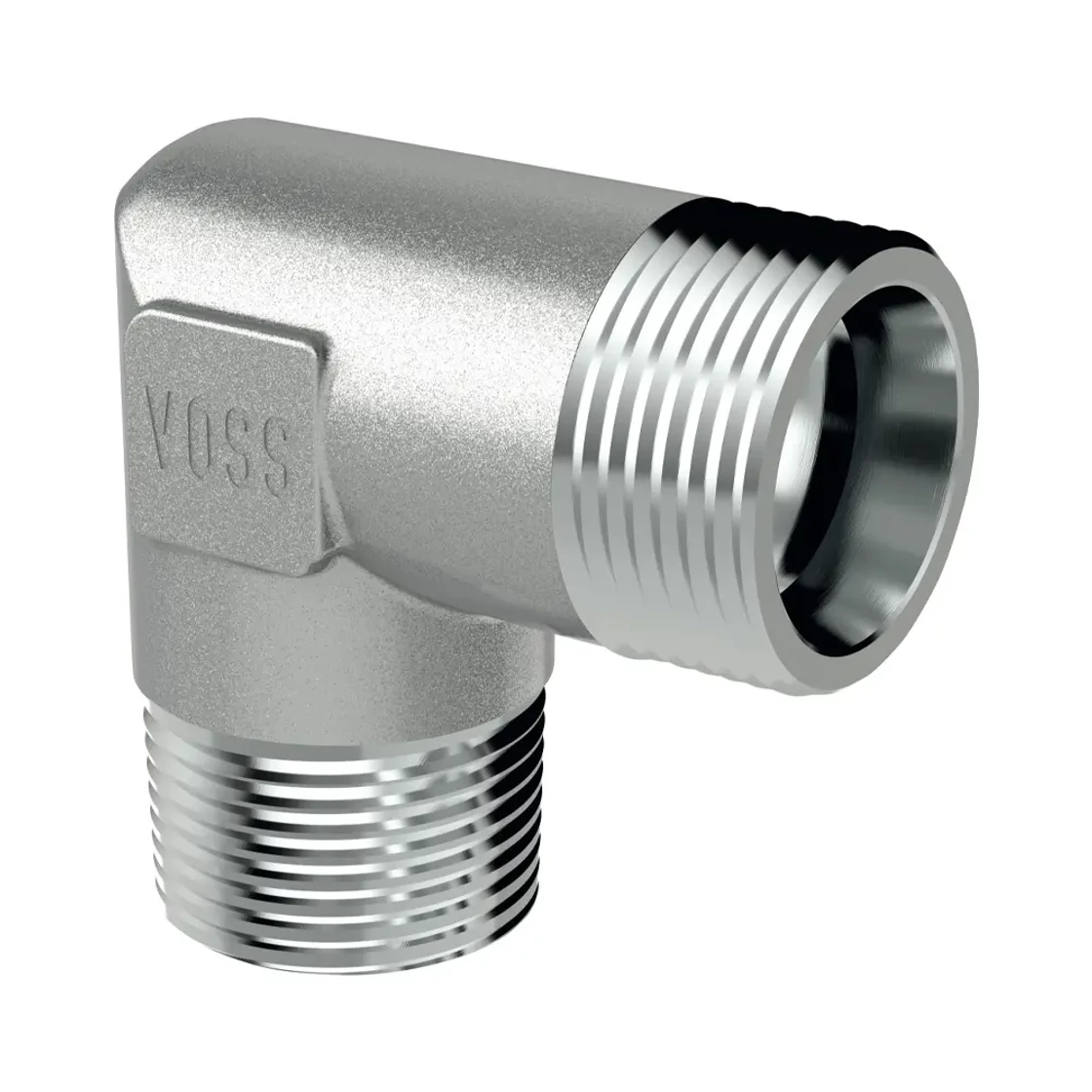

Tube Coupling - WE 08-SR
7.5517 € + VAT
Qty:pcs
Add to Cart

Tube Coupling - WE 08-SR

7.5517 € + VAT
Qty:pcs
Add to Cart

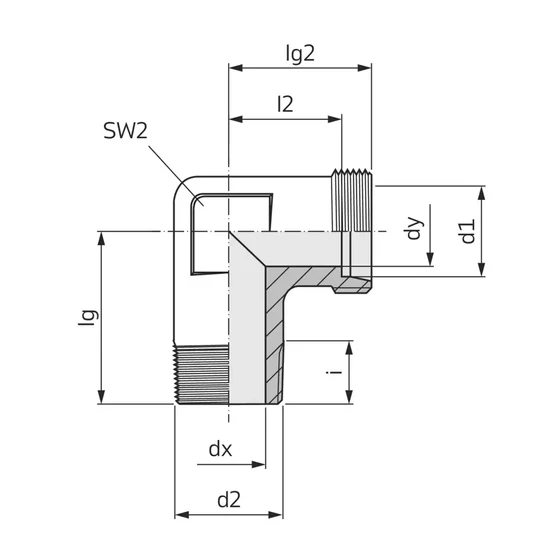

Material Steel
Connection 1 Metric male thread
Connection 2 BSPT male thread
Connection G1 (mm) M16x1,5
Connection G2 (mm) R 1/4
Connector sub-type Metrikus/BSP kúpos menet - nehéz kivitel (WE-S/R)
Connector type Könyök becsavarható - WE
Ø d1 (mm) 8
dx (mm) 5
dy (mm) 5
Surface Galvanic coating
l2 (mm) 17
i (mm) 6.2
Design S
lg2 (mm) 24
lg (mm) 27
SW2 (mm) 17
Standard DIN 2353/ISO 8434-1
Structural form Screw-in Elbow Fitting - WE
Sealing 1 24° external cone
Sealing 2 Thread-sealing
Operating pressure (bar) 630
Manufacturer article number: 116552007
Model: HQCWE08SR040
Availability: 5 pcs in stock
Manufacturer: Nem besorolt
