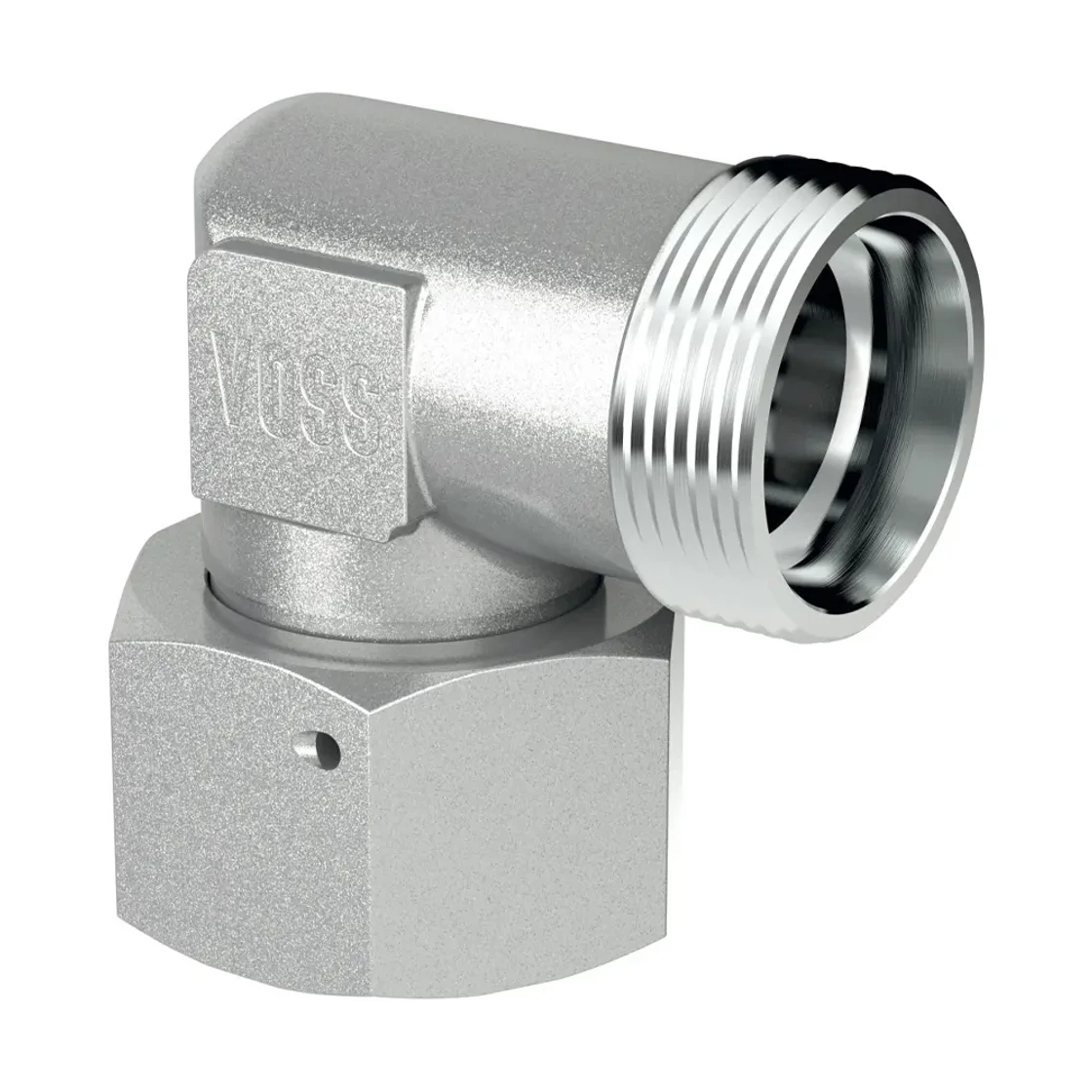

Tube Coupling - EW 06-S
6.2931 € + VAT
Qty:pcs
Add to Cart

Tube Coupling - EW 06-S

6.2931 € + VAT
Qty:pcs
Add to Cart
Material Steel
Connection 1 Metric male thread
Connection 2 Metric female swivel nut
Connection G1 - G2 (mm) M14x1,5
Connector sub-type Metrikus menet - nehéz kivitel (EW-S)
Connector type Könyök rátét - EW

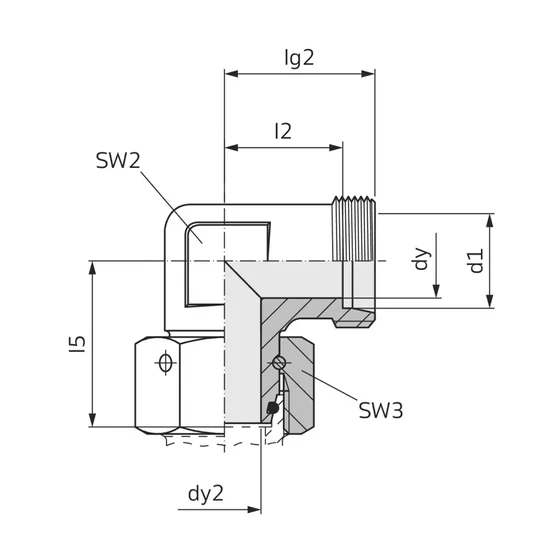

Ø d1 (mm) 6
dy2 (mm) 2.5
dy (mm) 4
Surface Galvanic coating
l2 (mm) 16
Design S
l3 (mm) 40
l5 (mm) 27
lg2 (mm) 23
SW2 (mm) 14
SW3 (mm) 17
Standard DIN 2353/ISO 8434-1
Structural form Elbow Insert - EW
Extent Swivel nut, without cutting ring
Sealing 1 24° internal cone
Sealing 2 24° external cone
Operating pressure (bar) 800
Manufacturer article number: 1158522057
Model: HQCEW06S00
Availability: 12 pcs in stock
Manufacturer: Nem besorolt
