Tube Coupling (EW-BSP) - (H-K) - G3/4
16.7500 € + VAT
Qty:pcs
Add to Cart

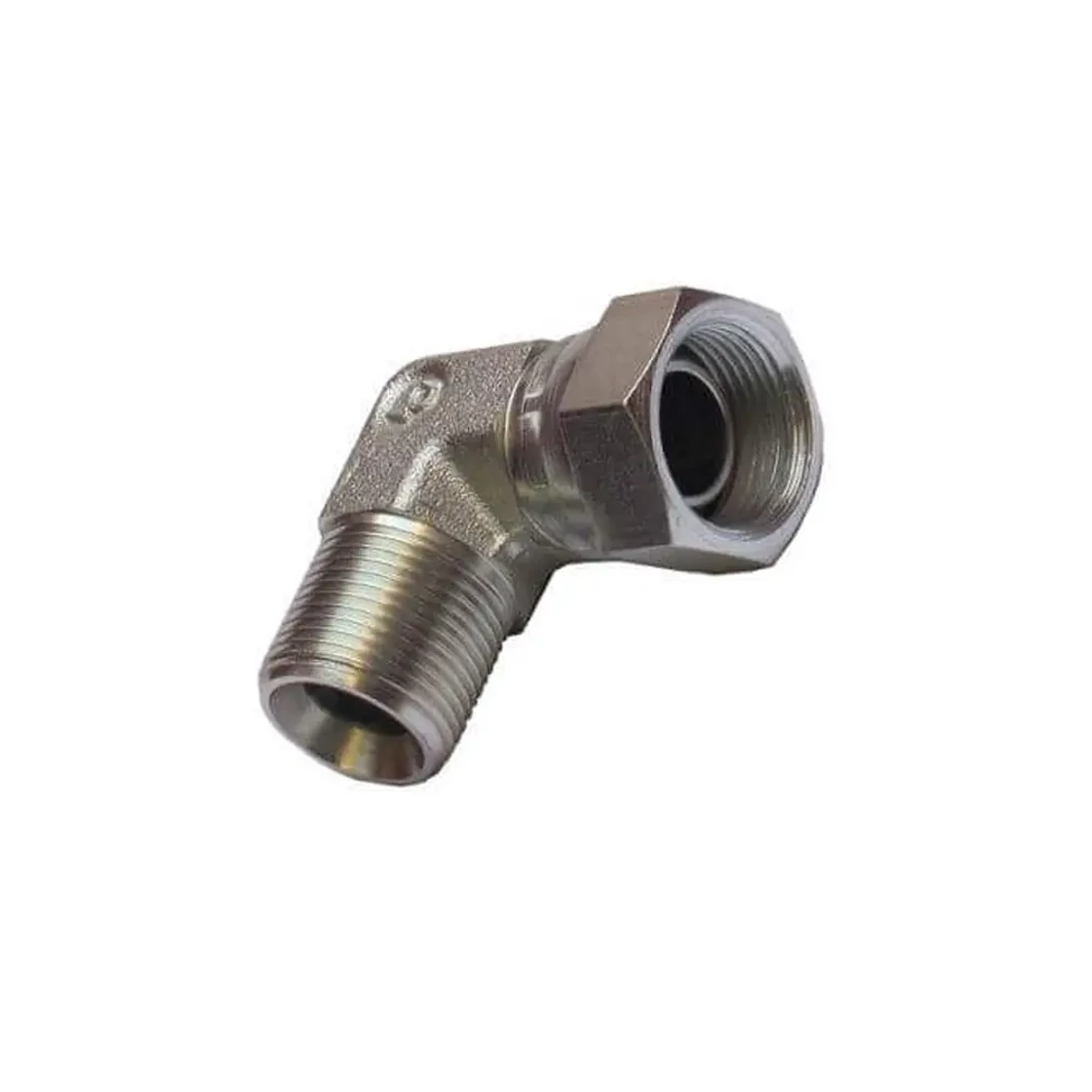

Tube Coupling (EW-BSP) - (H-K) - G3/4" - Sw.-Male

16.7500 € + VAT
Qty:pcs
Add to Cart
Material Steel
Connection 1 BSPP male thread
Connection 2 BSPP female swivel nut
Connection F1 (inch) 3/4''
Connection F2 (mm) 3/4''
Connector sub-type BSP hollender belső/külső menet (EW-BSP) (H-K)
Connector type Könyök rátét - EW
Surface Galvanic coating

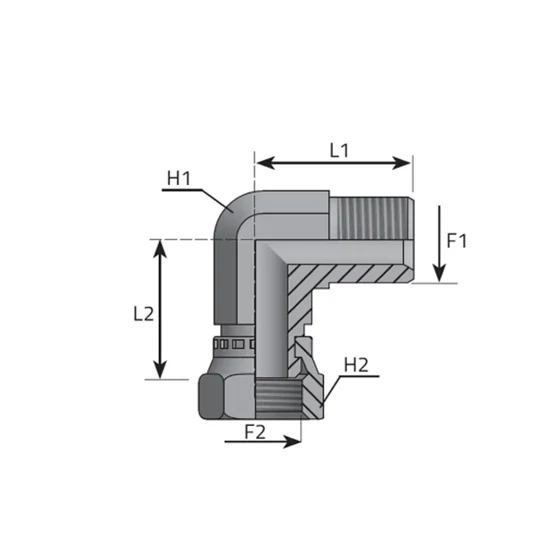

H1 (mm) 27
H2 (mm) 32
L1 (mm) 42
L2 (mm) 45
Structural form Elbow Insert - EW
Sealing 1 60° internal cone
Sealing 2 60° external cone
Operating pressure (bar) 250
Operating pressure (PSI) 3625
Main category Fittings
SubCategory Swivel nut elbow - EW
Manufacturer Nincs
Manufacturer article number: LMG12FGG12
Model: HQCCEW1200
Availability: 7 pcs in stock
Manufacturer: Nem besorolt
