Tube Coupling (EW-BSP) - (H-K) - G3/8
8.5586 € + VAT
Qty:pcs
Add to Cart

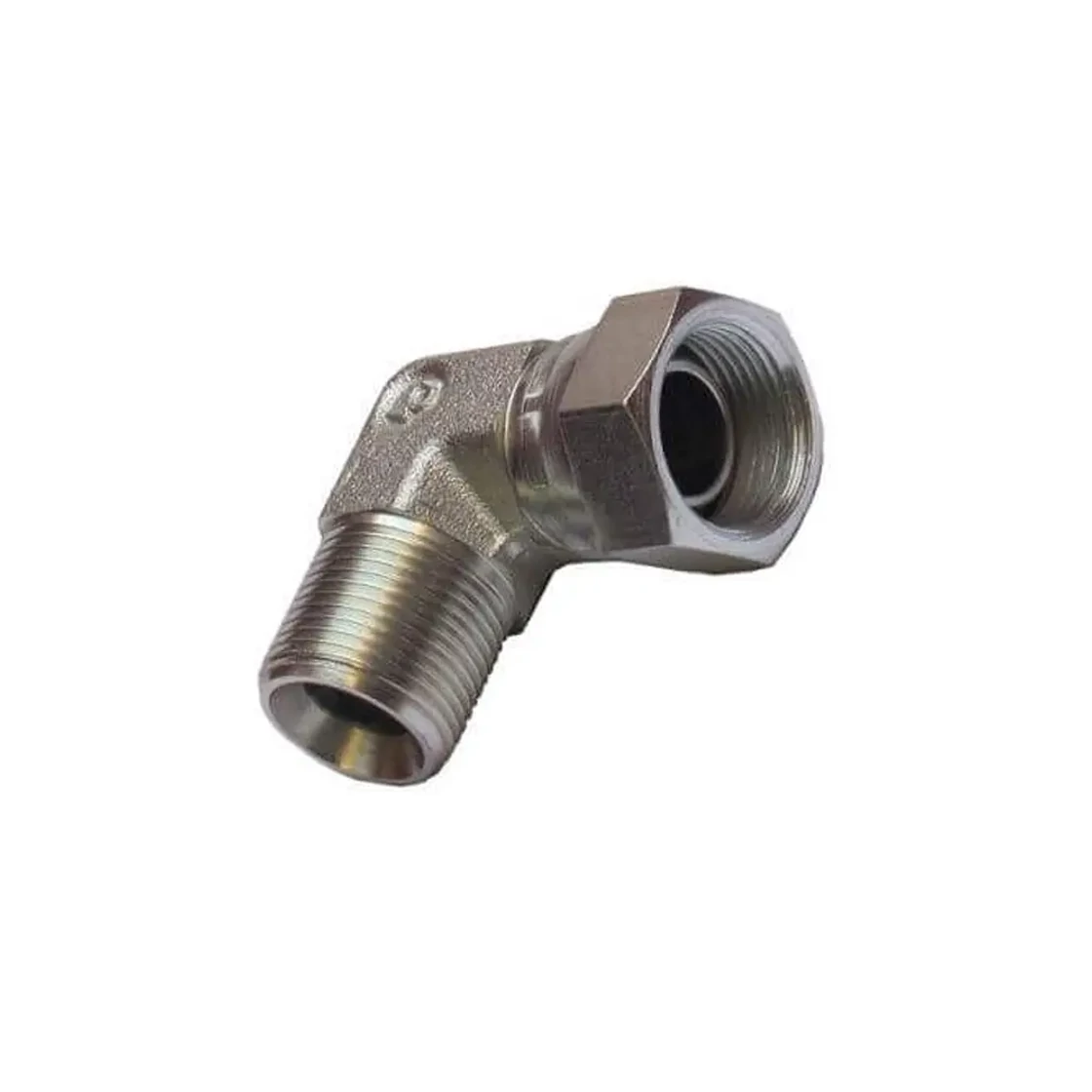

Tube Coupling (EW-BSP) - (H-K) - G3/8" - Sw.-Male

8.5586 € + VAT
Qty:pcs
Add to Cart
Material Steel
Connection 1 BSPP male thread
Connection 2 BSPP female swivel nut
Connection F1 (inch) 3/8''
Connection F2 (mm) 3/8''
Connector sub-type BSP hollender belső/külső menet (EW-BSP) (H-K)
Connector type Könyök rátét - EW
Surface Galvanic coating

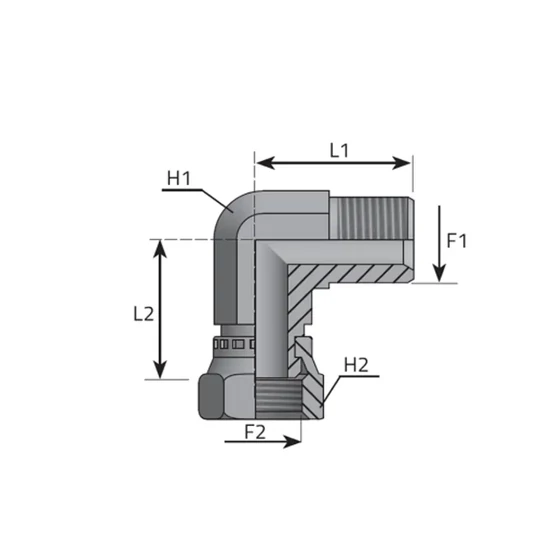

H1 (mm) 19
H2 (mm) 22
L1 (mm) 29
L2 (mm) 36
Structural form Elbow Insert - EW
Sealing 1 60° internal cone
Sealing 2 60° external cone
Operating pressure (bar) 350
Operating pressure (PSI) 5075
Manufacturer article number: LMG06FGG06
Model: HQCCEW0600
Availability: 13 pcs in stock
Manufacturer: Nem besorolt
