Tube Coupling - (W) - JIC 3/4
9.2667 € + VAT
Qty:pcs
Add to Cart

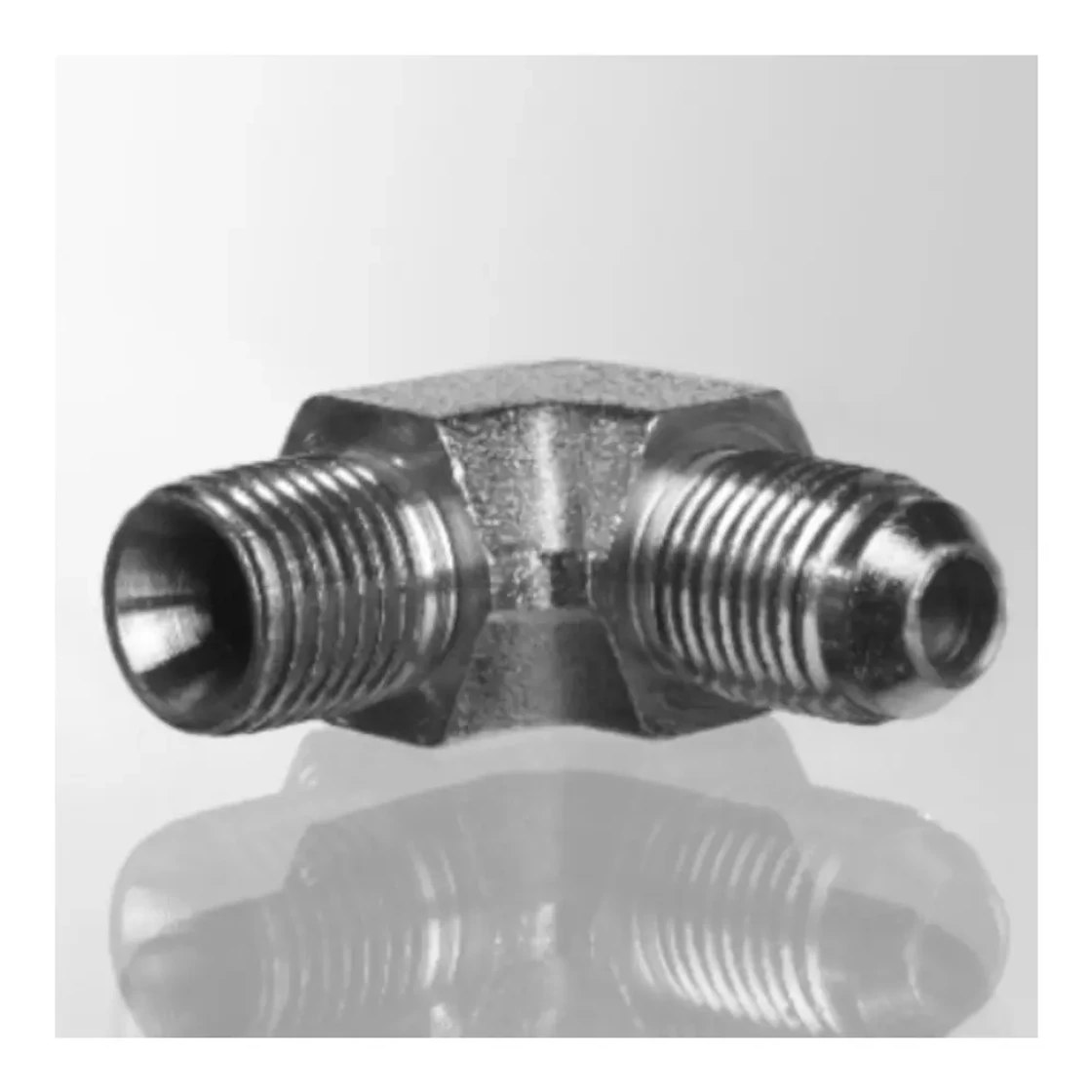

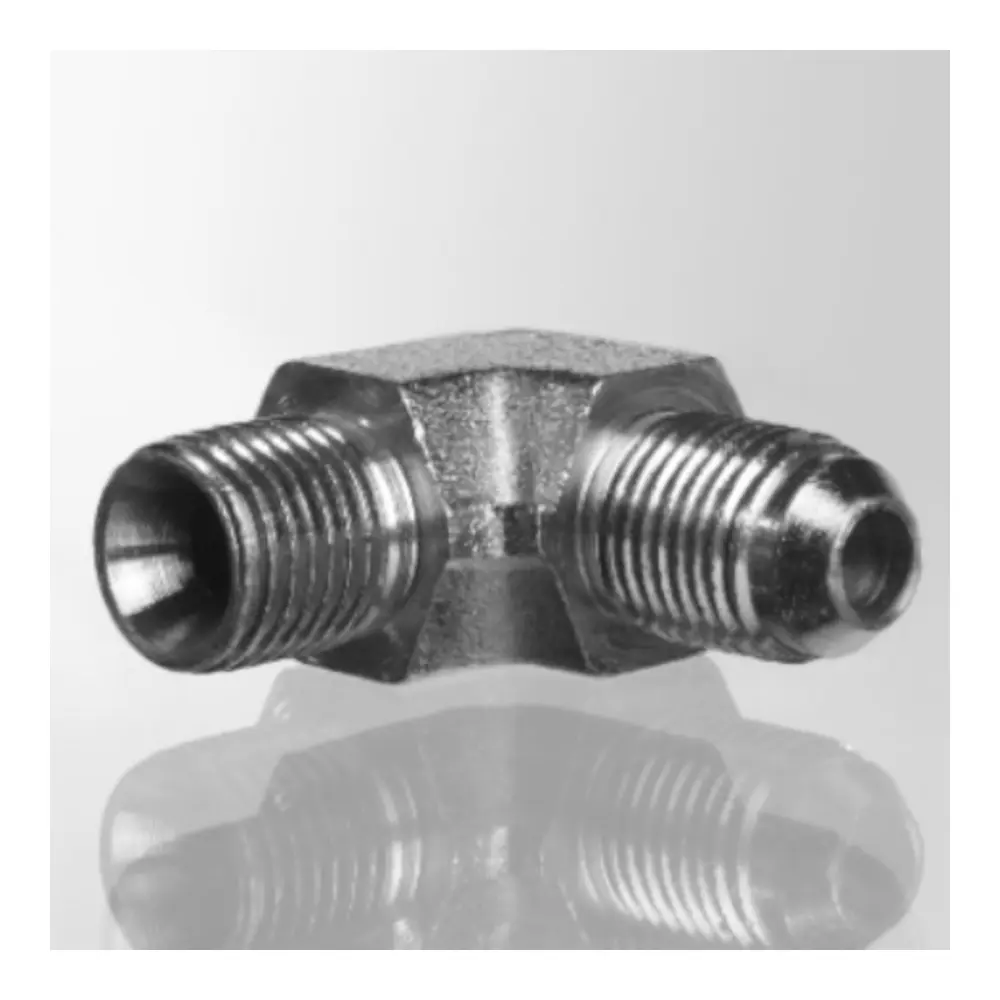

Tube Coupling - (W) - JIC 3/4"-16 - G3/8"

9.2667 € + VAT
Qty:pcs
Add to Cart

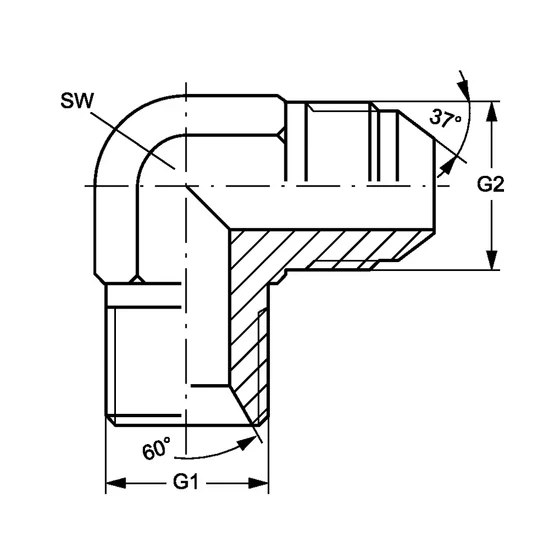

Material Steel
Connection 1 BSPP external thread
Connection 2 UNF external thread
Connection G1 (mm) G 3/8" -19
Connection G2 (mm) 3/4"-16 UNF
Connector sub-type UNF/BSP menet - JIC kivitel (W-JIC/BSP)
Connector type Könyök idom - W
Surface Galvanic coating
SW (mm) 19
Standard ISO 8434-6 , ISO 8434-2
Structural form Elbow Fitting - W
Sealing 1 60° internal cone
Sealing 2 37° external cone
Manufacturer article number: W90HB06HJ08
Model: HQCJWW08R060
Availability: 2 pcs in stock
Manufacturer: Nem besorolt
