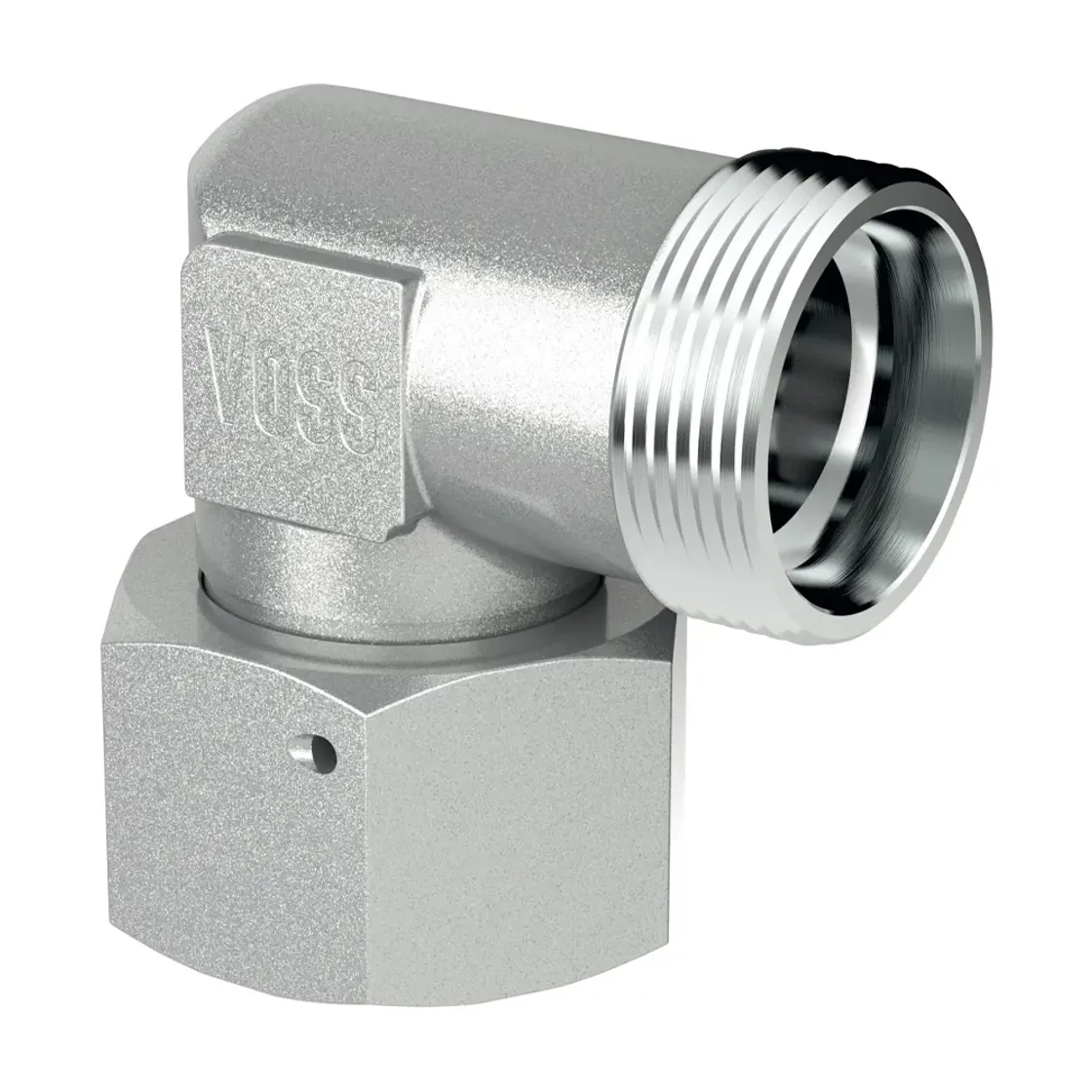

Tube Coupling - EL 06-S
9.2182 € + VAT
Qty:pcs
Add to Cart

Tube Coupling - EL 06-S

9.2182 € + VAT
Qty:pcs
Add to Cart
Material Steel
Connection 1 Metric male thread
Connection 2 Metric female swivel nut
Connection 3 Metric male thread
Connection G1 - G3 (mm) M14x1,5
Connection G2 (mm) M14x1,5
Connector sub-type Metrikus menet - nehéz kivitel (EL-S)
Connector type L-idom rátét - EL

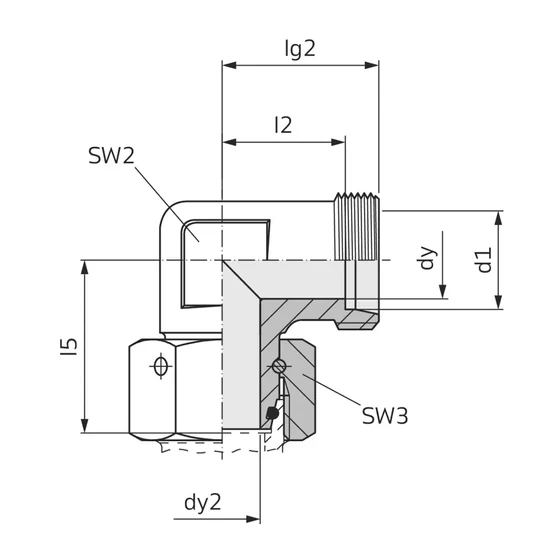

Ø d1 (mm) 6
dy2 (mm) 2.5
dy (mm) 4
Surface Galvanic coating
l2 (mm) 16
Design S
l3 (mm) 40
l5 (mm) 27
lg2 (mm) 23
SW2 (mm) 12
SW3 (mm) 17
Standard DIN 2353/ISO 8434-1
Structural form L-fitting Insert - EL
Extent Swivel nut, without cutting ring
Sealing 1 24° internal cone
Sealing 2 24° external cone
Sealing 3 24° internal cone
Operating pressure (bar) 800
Main category Csatlakozók
SubCategory Csavarzatok
Manufacturer Nincs
Manufacturer article number: 1162522057
Model: HQCEL06S00
Availability: 17 pcs in stock
Manufacturer: Nem besorolt
