Tube Coupling - (EL-UNF) - JIC 7/16
7.1429 € + VAT
Qty:pcs
Add to Cart

Tube Coupling - (EL-UNF) - JIC 7/16"-20

7.1429 € + VAT
Qty:pcs
Add to Cart

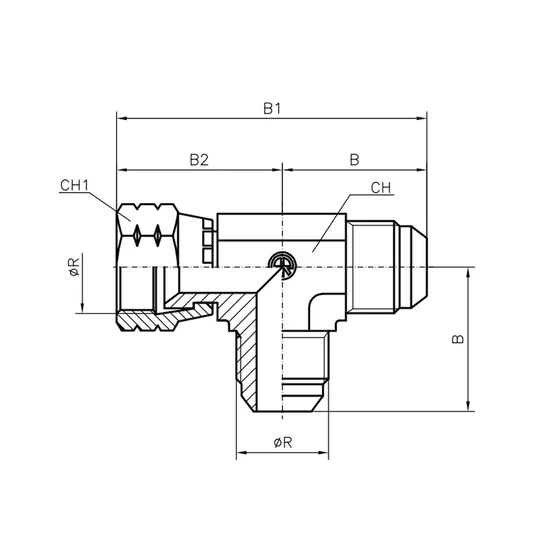

Material Steel
B2 (mm) 25.7
B (mm) 22.6
CH (mm) 111
CH1 (mm) 17
Connection 1 UNF female swivel nut
Connection 2 UNF male thread
Connection 3 UNF male thread
Connection ØR (col) 7/16
Connector sub-type UNF menet - JIC kivitel (EL-JIC)
Connector type L-idom rátét - EL
Pipe size (mm) 6
Pipe size (inch) 1/4
Surface Galvanic coating
Structural form L-fitting Insert - EL
Sealing 1 37° internal cone
Sealing 2 37° external cone
Sealing 3 37° external cone
Operating pressure (bar) 350
Main category Fittings
SubCategory Swivel nut L-fitting - EL
Manufacturer Nincs
Manufacturer article number: ST.59.00.04
Model: HQCJEL0400
Availability: 5 pcs in stock
Manufacturer: Nem besorolt
