Valve - 8254300.9154.23049

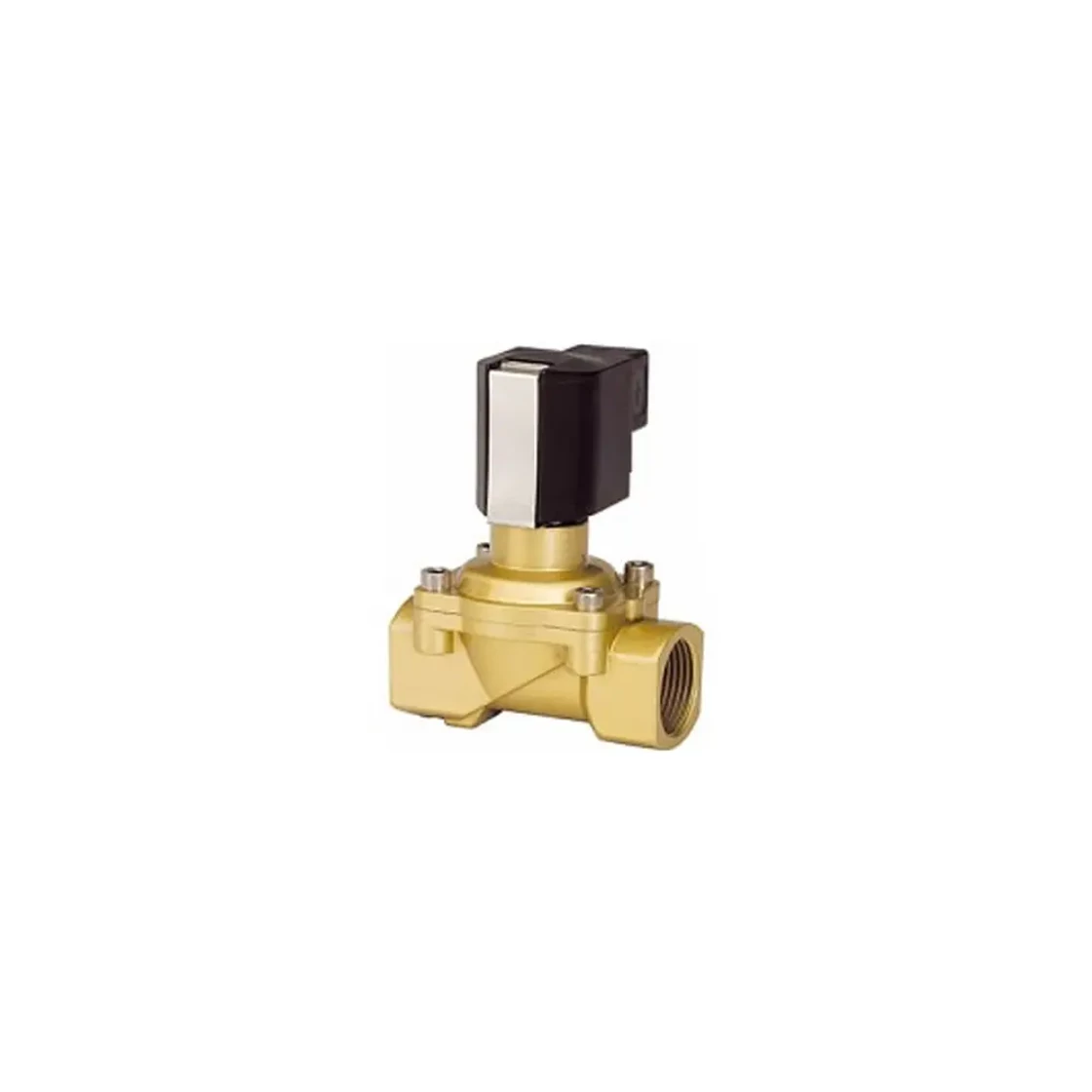

IMI Buschjost Brass Direct Acting Solenoid Valve, G3/4 (Series 82540)

This IMI Buschjost Series 82540 brass direct acting solenoid valve, with a G3/4 port size, is an ideal choice for systems with low or fluctuating pressure, as it operates without differential pressure. The valve provides a high flow rate and is suitable for vacuum applications. A key benefit is that the solenoid can be interchanged without tools using the Click-on® system, allowing for quick and easy maintenance.

Key Features & Benefits

• Operates without differential pressure: Ensures reliable operation even with low or fluctuating system pressures.
• High flow rate: Optimized flow for efficient operation.
• Suitable for vacuum: Versatile for use with gases and liquids.
• Tool-free solenoid interchange (Click-on®): Simplifies maintenance and reduces downtime.
• Robust materials: Brass body and NBR elastomers ensure durability.

Technical Details

• Medium: Gases, Liquids
• Port Size: G3/4
• Valve Operation: 2/2-way
• Operating Temperature: -10 ... 50 °C (14 ... 122 °F)
• Operating Pressure: 0 ... 10 bar (0 ... 145 psi)
• Coil Code: 9154
• Materials - Body: Brass
• Materials - Elastomers: NBR
• Certification - IP Rating: IP65
• Range: 82540
• Brand: IMI Buschjost
