Tube Coupling - MAV 06-LR 1/4
3.7601 € + VAT
Qty:pcs
Add to Cart

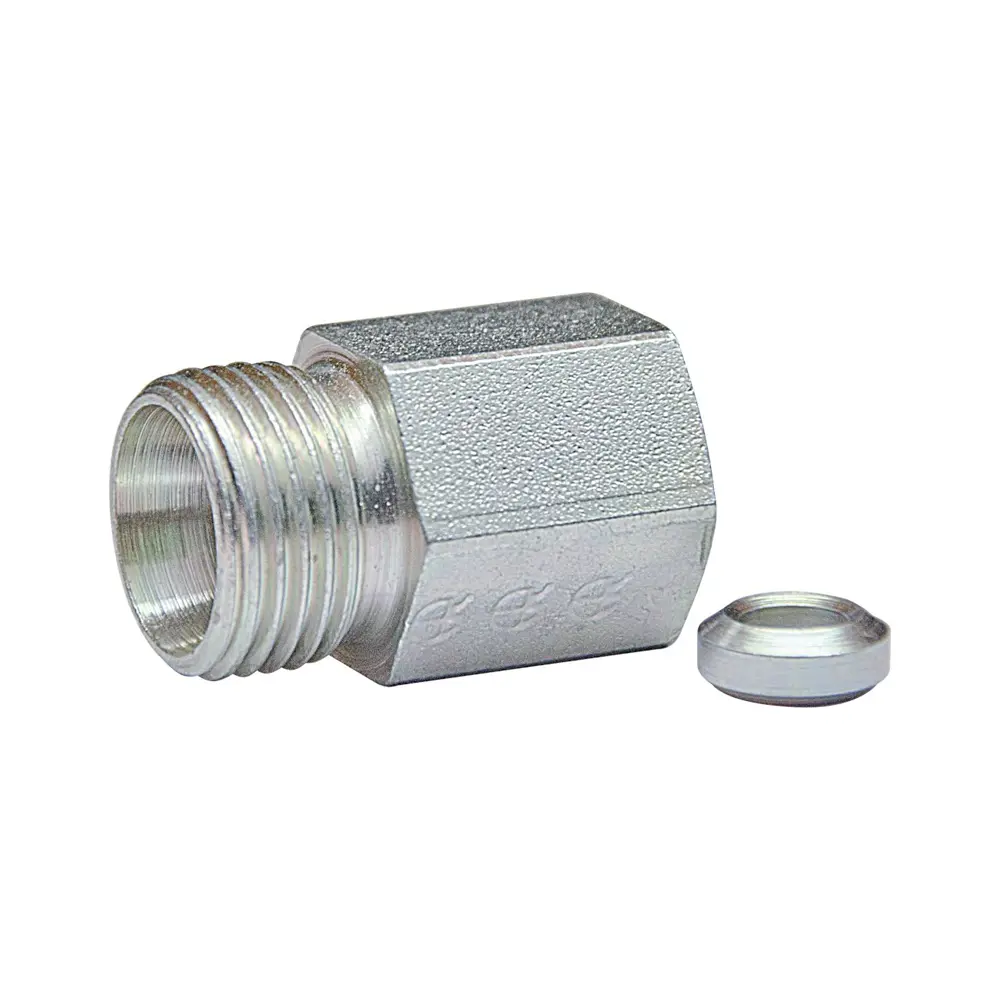

Tube Coupling - MAV 06-LR 1/4"

3.7601 € + VAT
Qty:pcs
Add to Cart
Material Steel
CH1 (mm) 14
CH5 (mm) 19
Connection 1 Metric male thread
Connection 2 BSPP female thread
Connection Ø F3 (inch) 1/4'
Connection G1 (mm) M12x1,5
Connector sub-type Metrikus menet - könnyű/nehéz kivitel (MAV L/R)
Connector type Manométer csatlakozás - MAV
Ø d1 (mm) 6
E (mm) 4.5
Surface Galvanic coating
i (mm) 14.5
Design L
L1 (mm) 7.5
L (mm) 37
Structural form Pressure Gauge Connection - MAV, MAVE, SSV
Sealing 1 24° internal cone
Sealing 2 Cutting ring
Operating pressure (bar) 315
Manufacturer article number: 1S-103LO06
Model: HQCPMV06L04
Availability: 6 pcs in stock
Manufacturer: Nem besorolt
