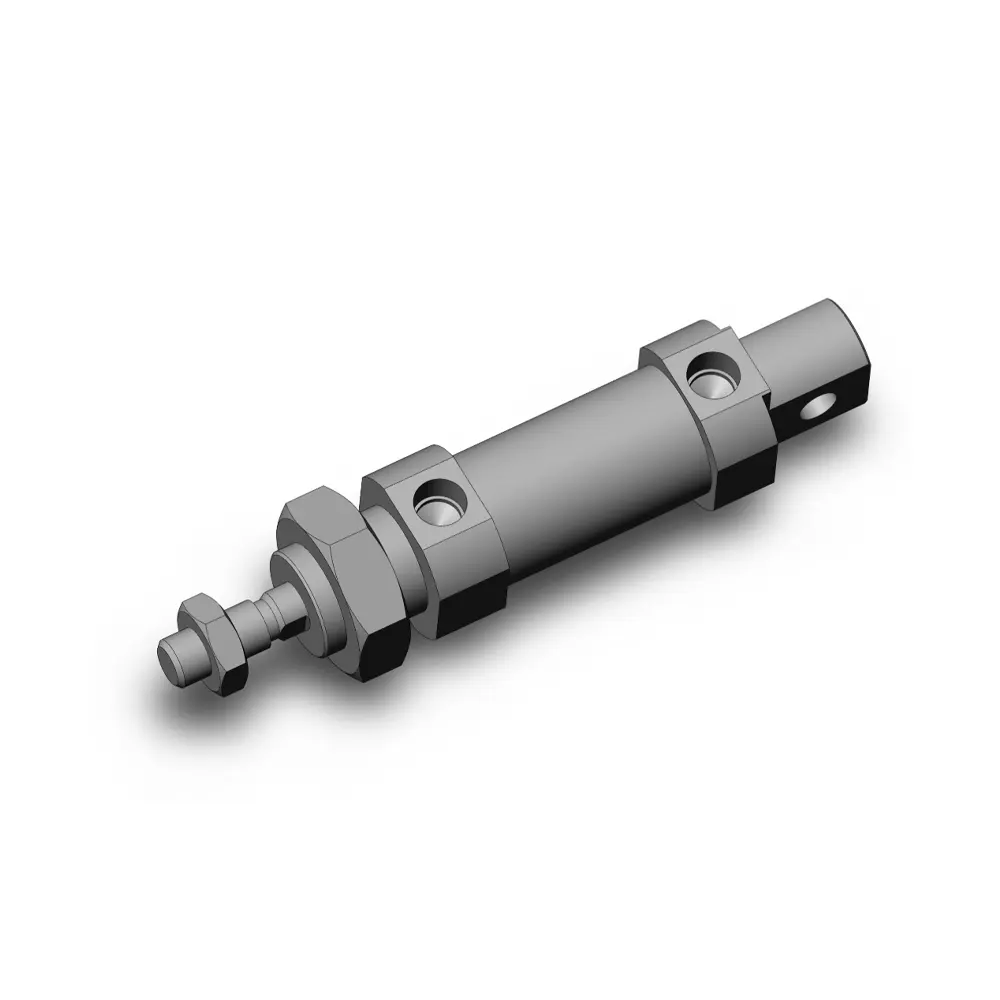

Pneumatic cylinder - C85N25-10-XB6

SMC C85 Series ISO Cylinder, High Temperature Type

The SMC C85 series ISO cylinder is a double-acting, single-rod pneumatic cylinder that conforms to ISO 6432 and CETOP RP52P standards. It is specifically designed for reliable operation in high-temperature and extremely dusty environments. Its unique rod packing design prevents dust entry, while abrasion-resistant packings and replaceable nose seals ensure exceptional service life.

Key Features

• Type: ISO cylinder, double acting, single rod
• Standards: Conforms to ISO 6432 and CETOP RP52P
• Bore Sizes: 8 mm, 10 mm, 12 mm, 16 mm, 20 mm, 25 mm
• Version: High temperature
• Cushion: Rubber bumper only
• Strokes: Up to 300 mm (depending on bore)

Application Benefits

• For Dusty and High-Temperature Environments: The unique rod packing design and high-temperature type ensure reliable operation in harsh conditions.
• Exceptional Service Life: Features abrasion-resistant packings and replaceable nose seals for outstanding durability.
• Versatile Application: Wide range of bore sizes and stroke lengths for various industrial uses.
