Pneumatic cylinder - CP96SB40-30C-XB6

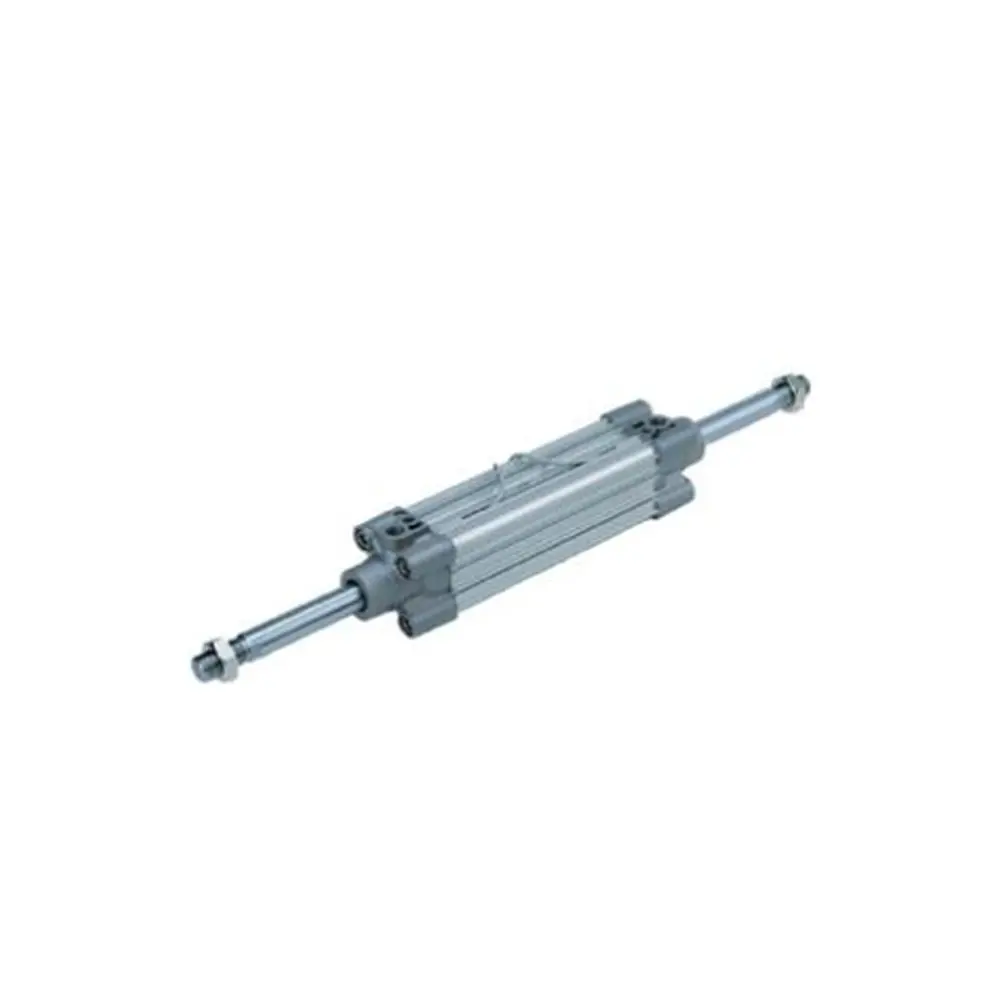

SMC CP96 Series ISO Profile Cylinder

The SMC CP96 series ISO profile cylinders conform to ISO 15552 (implied by "profile design ISO cylinder"), offering excellent accuracy and extended service life. The cylinder design features enclosed tie rods, which provide a more compact and aesthetic appearance. They are available in a double-acting configuration across seven bore sizes, ranging from Ø32 mm to Ø125 mm.

High-accuracy covers and tie rod nuts enhance mounting precision and extend cylinder life. Increased precision in the bushing and piston rod, along with reduced tolerances, has minimized piston rod deflection, ensuring stable and accurate movement. Standard strokes range from 25 mm to 800 mm, and the series includes end-of-stroke cushioning.

Key Features

• Type: Profile design ISO cylinder with enclosed tie rods
• Operation: Double Acting
• Bore Sizes: Ø32, 40, 50, 63, 80, 100, 125 mm
• Stroke Range: 25 mm to 800 mm (standard)
• End of Stroke Cushioning: Yes
• Accuracy: High-accuracy covers and tie rod nuts for improved mounting precision
• Robustness: More precise bushing and piston rod with reduced tolerances to minimize piston rod deflection
• Extended Lifespan: Improved design for durability
