Description
| property | value |
|---|---|
| Port Type | BSPP Internal Thread |
| Output Type | no analog output |
| Operating pressure | -1...16 bar |
| Switching option | 2 switch outputs |
| weight | Approx. 300 g |
| industry | mobile |
| Crack pressure | 50 bar |
| brand | SensoControl |
| Electrical connection | Circular connector M12x1 4-pin |
| length | n.a |
| Port Size | G 1/4" BSPP Internal Thread |
| application | Industrial applications |
| Product Type | Pressure Controller |
| Response time | ≤ 10 ms |
| technology | pressure |
| altitude | n.a |
| class | HPCE |
| Housing Material | Painted zinc casting Z 410 |
| width | 39.5 mm |
| Product Style | Display Sensor |
| Compliance Standards | Ce |
| Operating Temperature | -20°C to +85°C (-4°F to 185°C) |
Product Information

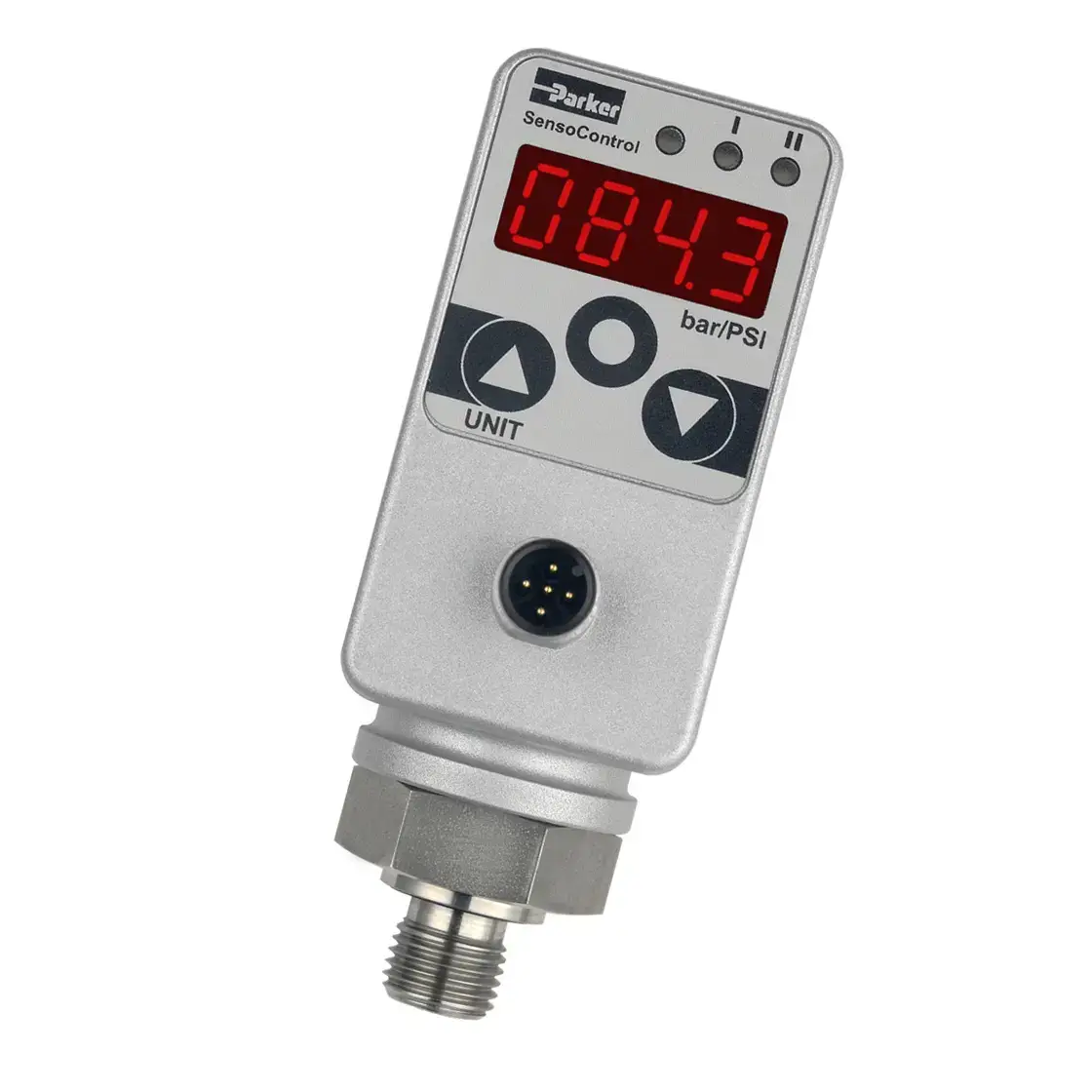

The PressureController combines the functions of a pressure switch, a pressure sensor and a display device. It is easy to use, has a compact design and is very reliable. It has excellent technical specifications, optimal pressure management and a wide range of installation options, making it perfect for continuous series use in industrial applications. The parameters can be set using the buttons or a programming module.
Markets:
- energy
- environment
- industrial
- infrastructure
- Machines
- Material handling
- energy production
- process
Applications:
For continuous series use in industrial applications
Features/Benefits:
- Compact size
- massive
- dependable
- Easy to use
- Long-term stability
- Excellent immunity
- High protection class
- Many variations
- negotiable
- Analogue output
- password
- MPa, bar, PSI
Similar products

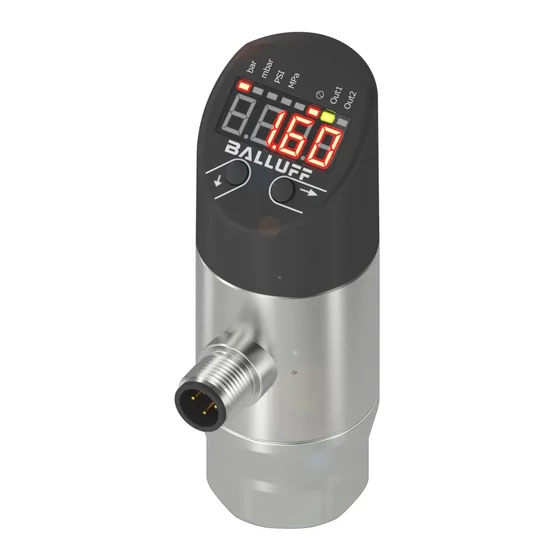

![250 bar G1/4" külső M12×1 4p. (két kapcs. + 0-10V) BSP00YC Nyomásérzékelő - DSCPSD250B00](https://hidraulikaszakuzlet2.cdn.shoprenter.hu/custom/hidraulikaszakuzlet2/image/cache/w560h560q100/img/termekek/new/diagnosztika/szenzor/baluff_bsp00yc_1.webp?lastmod=1768987430.1767612926 "250 bar G1/4" külső M12×1 4p. (két kapcs. + 0-10V) BSP00YC Nyomásérzékelő - DSCPSD250B00")
