Pressure relief valve - inline - G1/2" - DB10G3-5X/315

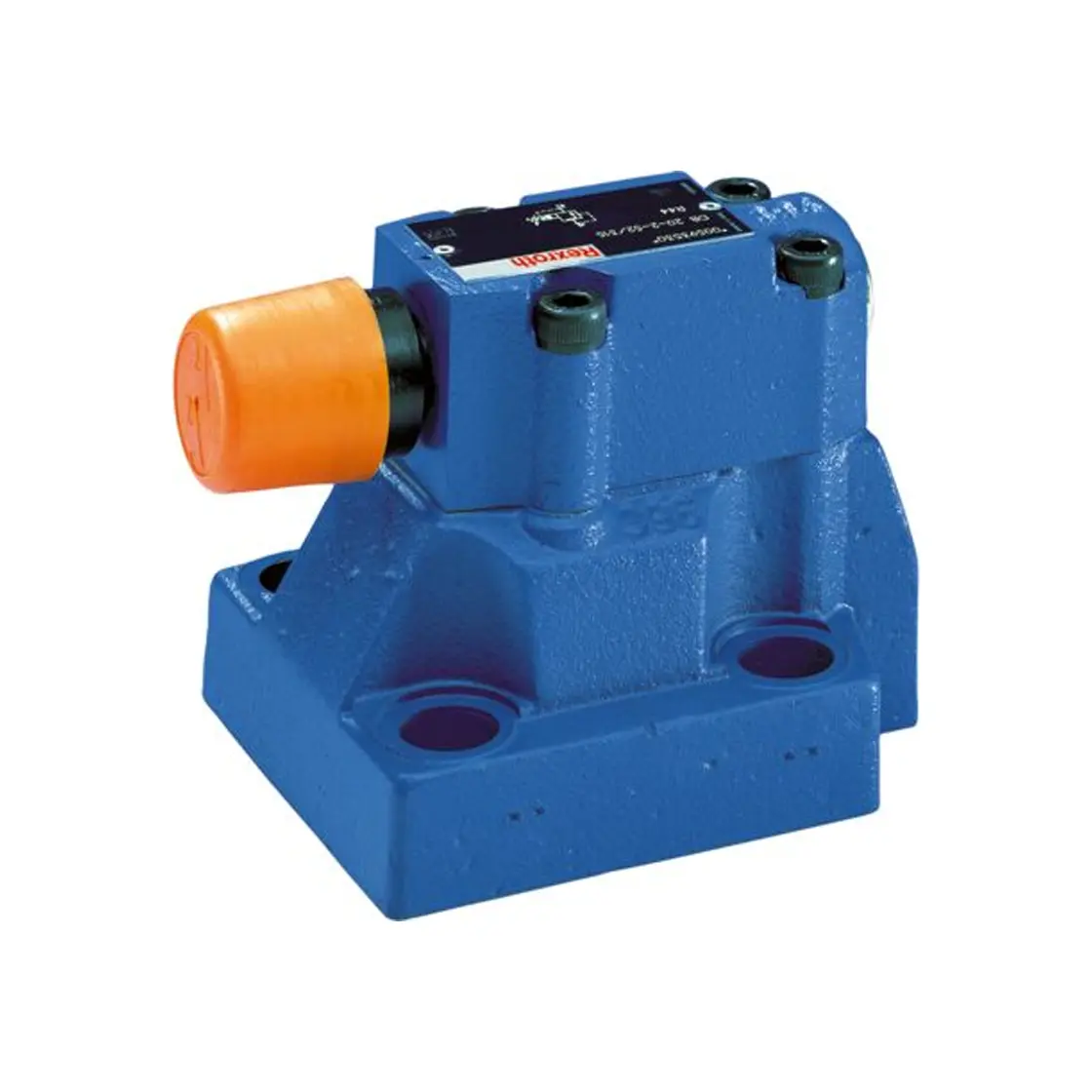

DB.10-30 Pressure Relief Valve (R900968652): Pilot-Operated with Precise Control

This industrial hydraulic pressure relief valve, part of the DB.10-30 series, is designed for high-performance applications where reliable pressure limitation is critical. It features a poppet seat design and is pilot-operated, ensuring precise and consistent control of system pressure. The valve includes a lockable rotary knob with a scale for easy and secure pressure adjustment.

While this specific model (R900968652) is classified as hydraulically actuated in its detailed product attributes, it also features an electrical connection for potential control or monitoring integration. It's built for demanding industrial environments with a robust design.

Key Features

• Reliable Pressure Limitation: Ensures consistent and precise pressure control.
• Poppet Seat Design: Provides excellent sealing and response characteristics.
• Pilot-Operated: Offers robust and accurate pressure regulation.
• Adjustable Pressure Range: Covers 4 bar to 315 bar.
• Lockable Rotary Knob: Allows for secure and scaled pressure adjustment.
• Electrical Connection: Facilitates integration for control or monitoring.

Technical Specifications

• Product Family: DB.10-30
• Size: 10
• Type of Connection: Threaded connection
• Connection Diagram: ISO 6264-06-09
• Max. Operating Pressure: 350 bar
• Max. Flow: 250 L/min
• Number of Ports: 2
• Number of Switching Positions: 2
• Type of Actuation: Hydraulically actuated (with electrical connection)
• Electrical Connection Description: 3-pole (2 + PE) connector according to EN 175301-803
• Hydraulic Fluid Compatibility: HL, HLP, HFC (specific brands include Fuchs: Hydrotherm 46M, Renosafe 500; Petrofer: Ultra Safe 620; Houghton: Safe 620; Union: Carbide HP5046)
• Seals Material: NBR
• Weight: 5.41 kg
