Description

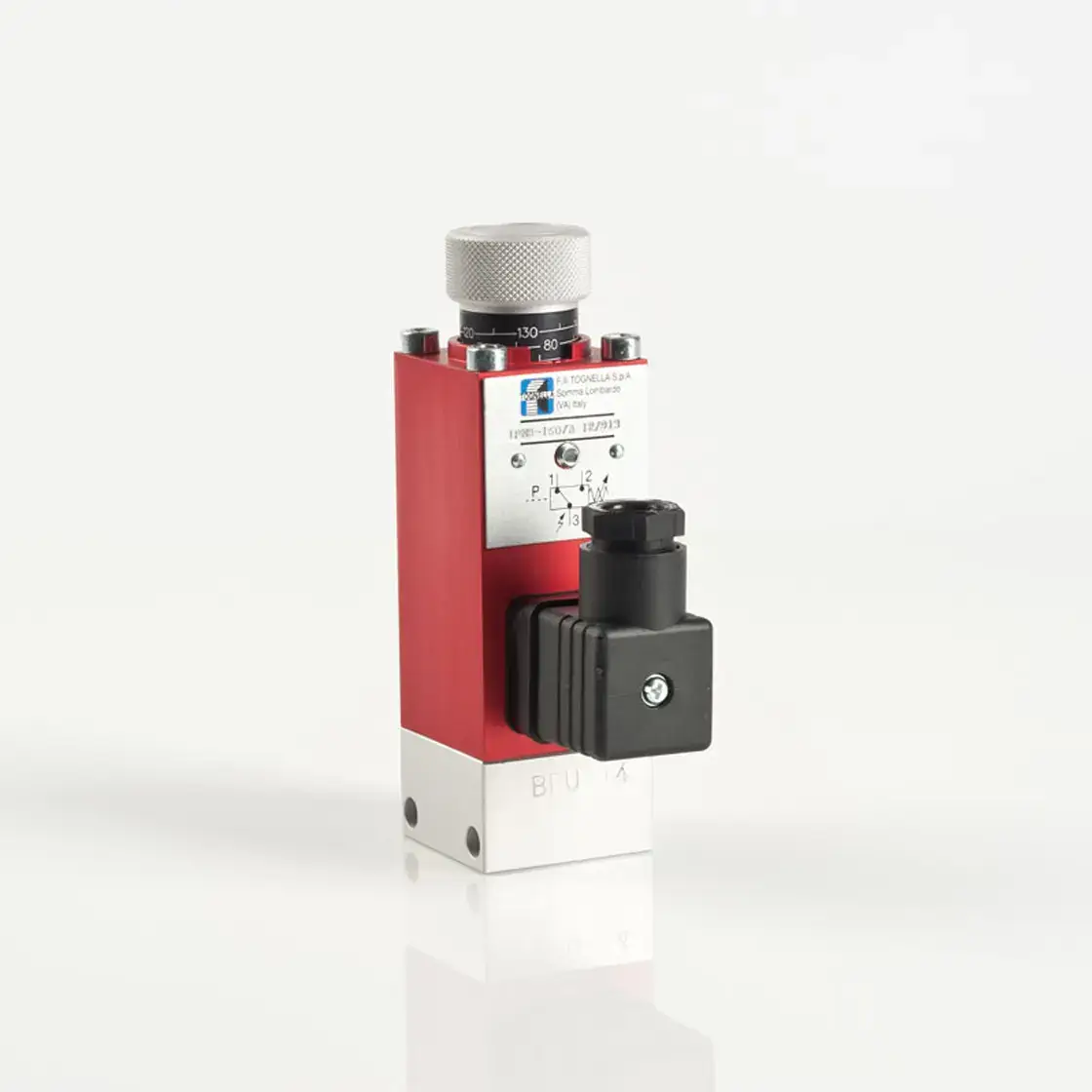

- The IPNB version has an aluminum housing with a red anodized coating, which makes the component design on the installed system particularly attractive and easy to identify.
- The IPNB series retains the characteristics of accuracy, reliability and robustness already recognized in the IPN series.
| characteristic | value |
|---|---|
| Resistive electrical load |
|
| Switching frequency | Up to 120 cycles per minute |
| protection | IP65 |
| DC with inductive load | Recommended use of arc extinguishing contact |
| Installation rules | FT-IPH type pressure switches can be installed in any position |
| Usable fluid | Hydraulic oil compliant with DIN 51524, viscosity between 30 and 100 mm2/s (cSt) at 40°C |
| Filtration Grade | 25 μm |
| Operating temperature | -20°C ÷ +75°C |
